TE Connectivity CERTI-CRIMP Ratchet Crimping Tool for PIDG Splices/Terminals, Plasti-Grip Terminals

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

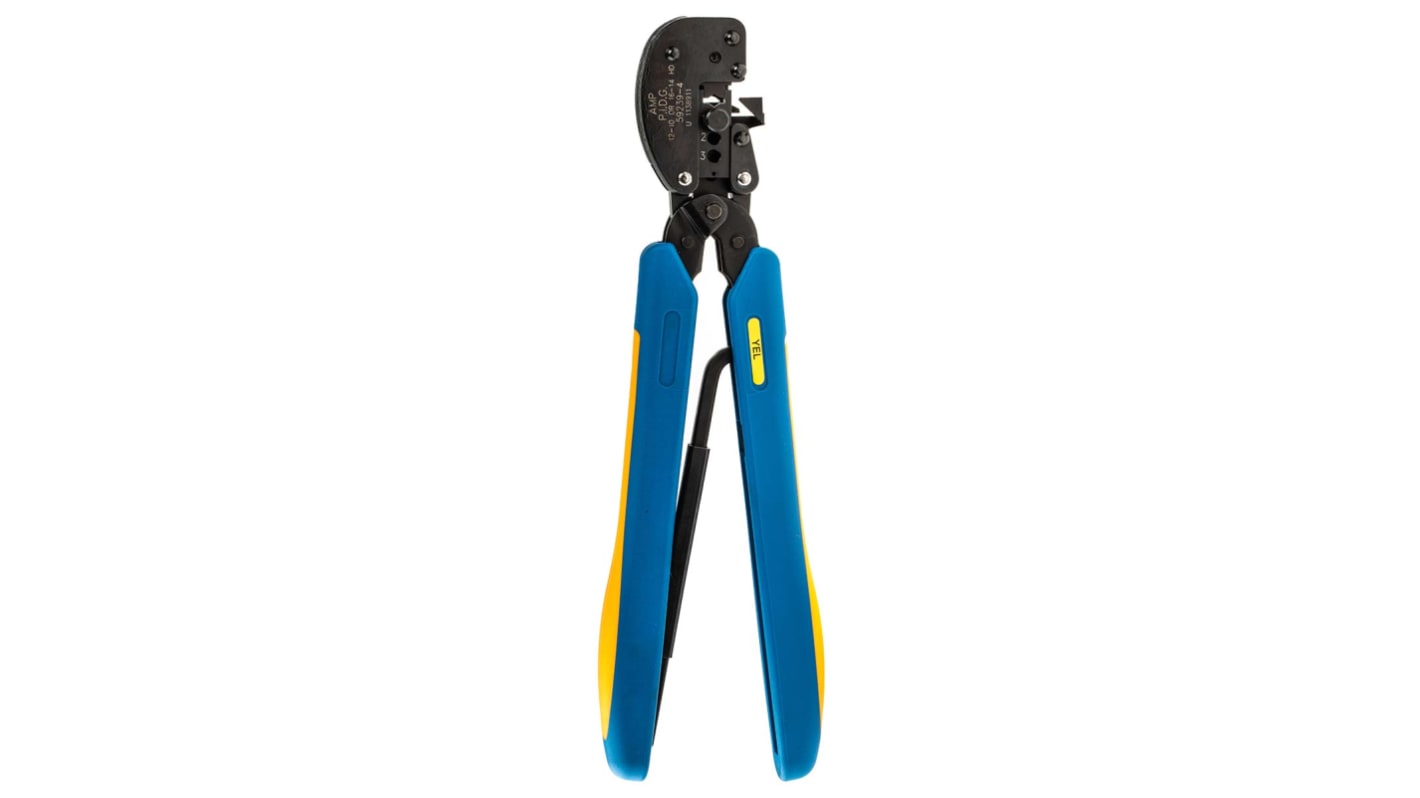

TE Connectivity Premium Grade CERTI-CRIMP Hand Crimping Tool for PIDG and PLASTI-GRIP Terminals

The Importance of a High-Quality Crimp

When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage

TE Premium Grade CERTI-CRIMP Hand Crimping Tool - Overview

From TE Connectivity, a premium grade hand operated crimping tool designed to high specifications using high-quality materials for producing top quality consistent crimps with optimal electrical and mechanical performance. The premium grade tools are easy to use and require minimum operator skill to produce high quality crimps to specified parameters. The crimping tool consists of handles with a CERTI-CRIMP tool ratchet, two fixed crimping dies or crimpers, two movable crimping dies or anvils and a locator which helps to position the contact in the tool. The handles of the crimp tool are set to specific pressures to meet different crimp force requirements. The whole design of this premium handing crimping tool ensures that a complete crimp cycle is achieved regardless of operator fatigue or tool wear and tear.

CERTI-CRIMP Ratchet

The CERTI-CRIMP II ratchet is factory set to stay locked until the handles of the tool are fully closed and the dies are bottomed. This prevents partial crimps by ensuring that a full crimping cycle is achieved. The CERTI-CRIMP ratchet also enables the operator to repeatedly produce consistent, high-quality crimps.

Insulation Adjustment Pins

The insulation crimping section of the tool is adjustable so it can accommodate different wire insulation diameters. This adjustment is made by inserting an adjustment pin into one of 3 positions in the head of the tool.

Handle Colour and Dot Code

The handles of the crimping tool are colour coded to match the terminal size the tool is designed to crimp. When the correct terminal has been selected and fully crimped, the crimping tool produces a dot code (a single dot) on it as confirmation

Key Features and Benefits

• High specification design using high-quality material
• Minimum operator skill required
• CERTI-CRIMP ratchet mechanism guarantees full crimp cycle
• Locator for accurate positioning of the contact
• Ergonomically designed handles with pre-set handle force pressures
• Fixed crimp dies
• Colour coded tool handle
• Dot code to confirm successful crimp
• Insulation crimping adjustment pins

Applications

This TE Connectivity premium Grade crimping tool is ideal for use in low production runs, prototype work and repairs and any other application that requires consistent, high-quality terminations. This CERTI-CRIMP premium grade hand crimp tool is also suitable for use in most military, UL and CSA applications

Questions and Answers
Are Dies Included?
Yes the dies are fixed inside the crimping tool

What Terminals can this Crimping Tool be used with?
This hand crimping tool is exclusively for use with TE Connectivity insulated PIDG and PLASTI-GRIP terminals and splices with a wire size of 16 to 10 AWG

What Kind of Crimp Does this Tool Produce?
This tool produces closed barrel confined crescent style crimp

Is this Crimping Tool Easy to Use?
Yes, the premium grade crimping tools are designed to be used with minimum operator skill. The manufacturer datasheet on our website gives clear instructions on how to use the tool

What is the Service Life of this Crimping Tool?
A potential service life of over 50000 cycles is possible if the tool is properly maintained and the tools is repairable

Are Accessories or Spare Parts Available for this Crimping Tool?
Yes, a retaining pin is available, see stock number 876-2065 and an adjustment pin assembly (see stock number 876-2046)

Specifications
Attribute Value
Series CERTI-CRIMP
Crimp Tool Type Ratchet
Crimp Connector Type PIDG Splices/Terminals, Plasti-Grip Terminals
For Use With Splices and Terminals 10-12 AWG and 14-16 AWG HD
Wire Size mm² 3 5mm²
Wire Size AWG 12 10
25 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 1,688.30
(exc. GST)
$ 1,857.13
(inc. GST)
units
Per unit
1 +
$1,688.30
