- RS Stock No.:
- 186-0161
- Mfr. Part No.:
- 90872-1
- Brand:
- TE Connectivity
6 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$609.83
(exc. GST)
$670.81
(inc. GST)
Units | Per unit |
1 - 4 | $609.83 |
5 + | $596.43 |
- RS Stock No.:
- 186-0161
- Mfr. Part No.:
- 90872-1
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

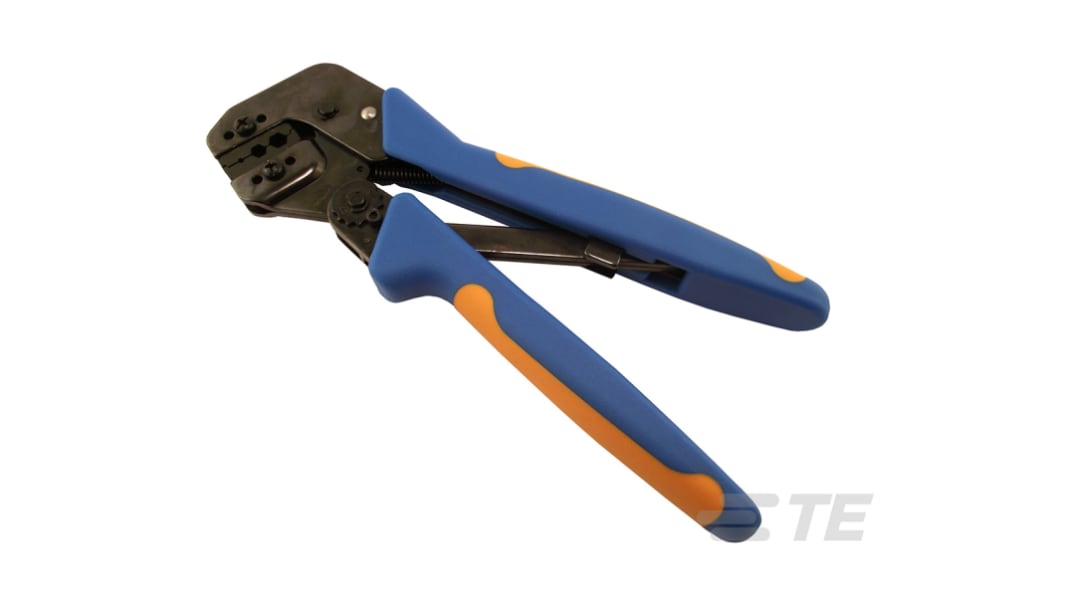

TE Connectivity Commercial Grade Pro-Crimper III Hand Crimping Tool
This hand crimping tool is designed for field installation, repair, maintenance work or prototyping in industrial, commercial or institutional applications. The PRO-CRIMPER III hand tools are ergonomically designed as they have a thin and comfortable handle and are built to the highest standards.
The tool features a tool frame with a stationary jaw and handle, a moving jaw, a moving handle, and an adjustable ratchet that ensures full contact crimping. The tool frame holds a die assembly with two crimping sections. The die assembly features a wire anvil, an insulation anvil, a wire crimper, and an insulation crimper. Attached to the outside of the frame is a locator assembly, which contains a locator, a spring retainer, and a contact support. Die retaining pins and die retaining screws are used to position and secure the dies in the tool frame. A nut is used on the upper die retaining screw to hold the locator assembly in place.
The tool features a tool frame with a stationary jaw and handle, a moving jaw, a moving handle, and an adjustable ratchet that ensures full contact crimping. The tool frame holds a die assembly with two crimping sections. The die assembly features a wire anvil, an insulation anvil, a wire crimper, and an insulation crimper. Attached to the outside of the frame is a locator assembly, which contains a locator, a spring retainer, and a contact support. Die retaining pins and die retaining screws are used to position and secure the dies in the tool frame. A nut is used on the upper die retaining screw to hold the locator assembly in place.
Features and Benefits:
Manufactured with precision stamping – allows close tolerance controls on parts for better performance and repeatability
Enhanced ergonomics – comfortable handle profile for user comfort
Stronger tool frame – long lasting performance
Commercial crimp tooling
Ratchet configuration – operator releasable and adjustable, ensures that a full crimp cycle is achieved
Removable, Interchangeable dies
18-24 AWG
Enhanced ergonomics – comfortable handle profile for user comfort
Stronger tool frame – long lasting performance
Commercial crimp tooling
Ratchet configuration – operator releasable and adjustable, ensures that a full crimp cycle is achieved
Removable, Interchangeable dies
18-24 AWG
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Series | PRO-CRIMPER III |
Product Type | Crimp Tool |
Operation | Hand |
For Use With | 093 Commercial Pin & Socket Contacts |
Wire Size AWG | 24 → 18AWG |
Ratcheting | Yes |
Overall Length | 3.96 → 4.72 (Bracket) mm |
