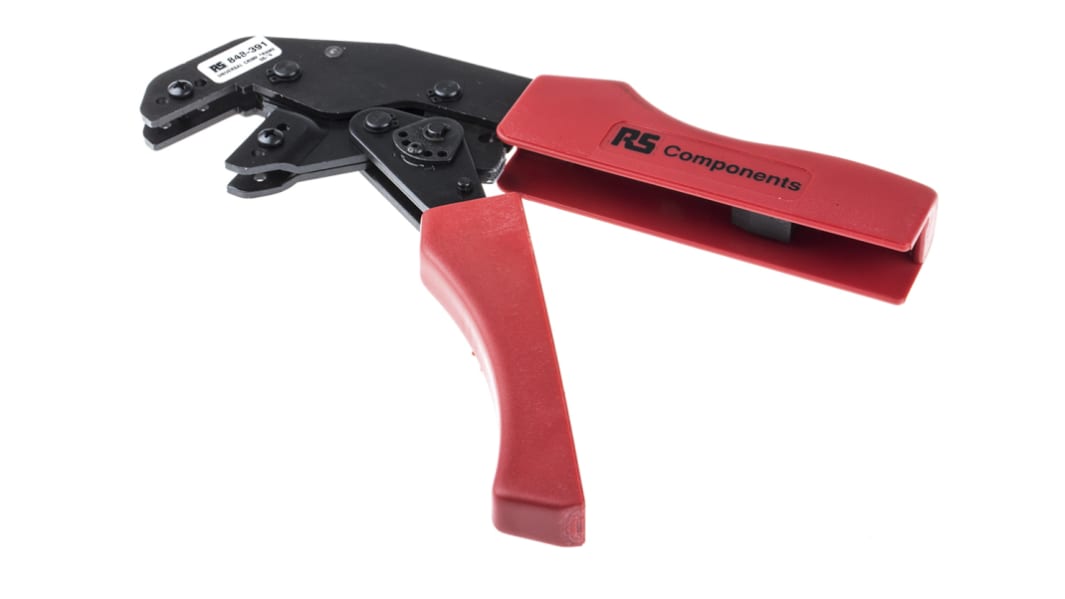

RS PRO Ratchet Crimping Tool for Insulated Terminal, 0.25mm²

  • RS Stock No. 848-391
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

Universal Frame Crimp Tool

Clipper Series

Plastic industrial connectors which provide sealing to IP67. The system offers connector shells with a retention plate system, allowing easy insertion/extraction of the crimp contacts without tooling. Contacts to be purchased separately. The cable mount sockets are able to accept straight cable clamps, conduit adaptors or sealing glands giving great flexibility in usage. For added safety the connectors are designed to be scoop proof: in that they may be coupled and uncoupled without the risk of damaging contacts, even if blind mating is necessary. High density formats are available using 1mm contacts.

Conductor and insulation sizes
Contact size 1.0 1.6
Conductor size range 0.35 to 0.6mm² 0.7 to 1.5mm²
Insulation size range 1.2 to 2.1mm 2 to 3mm
Electrical
Current rating single contact 1.6mm contact 10A
  1.0mm contact 5A
Working Voltage 4 way - 380Vac Class C VDE
  All others - 250Vac Class B VDE
Voltage Proof 1500V (DIN 57110b)
Contact Resistance <10mΩ
Mechanical
Connector Material Glass filled Nylon 6.6
Contact Material Selective gold over tin plated copper alloy
Temperature Range -40 to +125°C
IP Rating IP67 to DIN 40050
Compatibility
RS MIL-C-5015
Size 1 Shell size 14
Size 2 Shell size 16
Size 3 Shell size 20
Size 4 Shell size 28
Specifications
Attribute Value
Crimp Connector Type Insulated Terminal
Crimp Tool Type Ratchet
1 : Next working day (AU stock)
37 : 5 working days (Global stock)
Price (ex. GST) Each
$ 229.20
(exc. GST)
$ 252.12
(inc. GST)
units
Per unit
1 +
$229.20
