Product Details

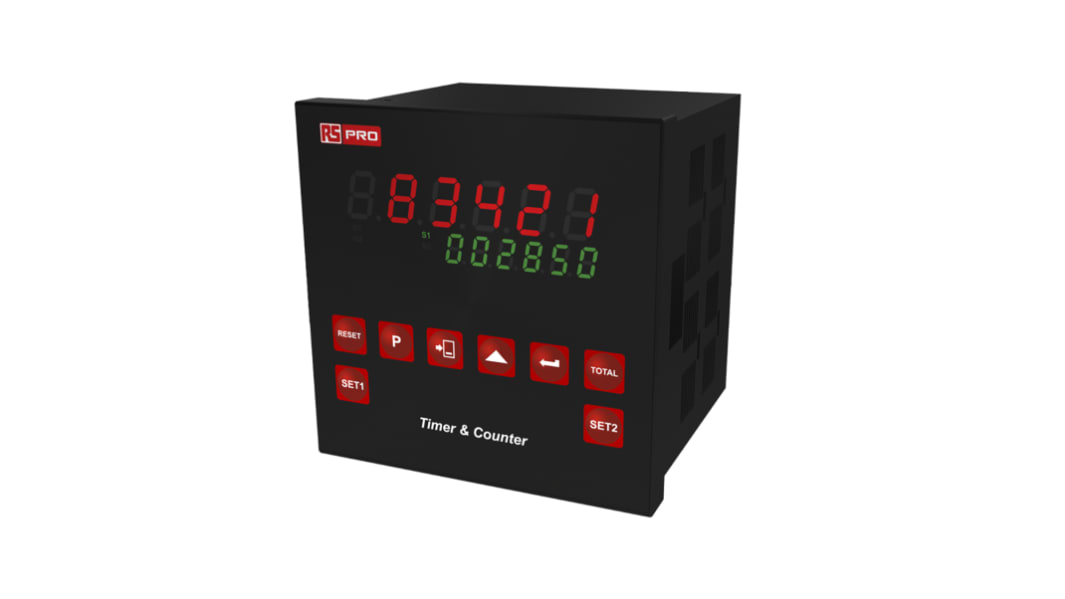

96 x 96 Programmable Counter- 2 Set
2 Set programmable counters designed to be used in a comprehensive range of applications. With 96 x 96mm mounting this is highly versatile from both a mounting and function perspective.
6 Digit LED display
2 Set value
NEMA 4X Protection (IP65 frontal, IP20 rear)
Rated voltage 16V dc @5mA
Supports NPN/PNP operation
Manual & automatic reset options
Different alarm alternatives in Frequencymeter & Cycle Measuring Functions
Absolute or Offset operation in Counter Function
2 Set value
NEMA 4X Protection (IP65 frontal, IP20 rear)
Rated voltage 16V dc @5mA
Supports NPN/PNP operation
Manual & automatic reset options
Different alarm alternatives in Frequencymeter & Cycle Measuring Functions
Absolute or Offset operation in Counter Function
Suitable Applications Include:
Packaging machines
Quality control roller systems
Machine processing of glass, plastic, marble, sheet, iron & fabric
Measurement automation
Quality control roller systems
Machine processing of glass, plastic, marble, sheet, iron & fabric
Measurement automation
Specifications
Attribute | Value |
---|---|
Supply Voltage | 24 V ac/dc |
Count Mode | Seconds |
Display Type | LED |
Input Type | NPN, PNP |
Connection Type | Terminal |
Reset Method | Automatic, Manual |
Number of Digits | 6 |
Mounting Type | Panel Mount |
Output / Interface | Relay |
Count Direction | Down, Up |
Digit Height | 9 mm, 14 mm |
Maximum Count Frequency | 6kHz |
Function | Counter, Programmable Timer |
Display Range | 0 → 99.99 |
Cutout Size | 96 x 96 mm |
Maximum Temperature | +50°C |
Approvals | CE, Gost-R, UL |
Maximum Operating Temperature | +50°C |
Weight | 340g |
Minimum Operating Temperature | 0°C |
Meter Type | Mechanical |
Measurement Range | 0 → 99.99 |
Cutout Width | 96mm |
Depth | 87.5mm |
Cutout Height | 96mm |
