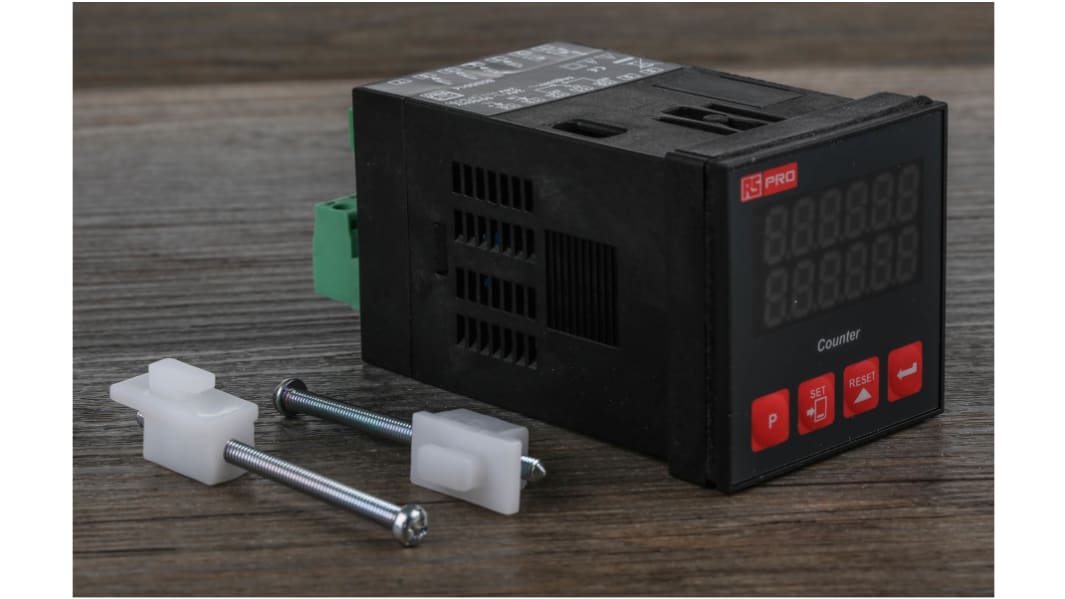

RS PRO 6 Digit, LED, Digital Counter, 20kHz, 24 V

  • RS Stock No. 808-6614
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TR
Product Details

48 x 48 Programmable Counter

Single set programmable counters designed to be used in a comprehensive range of applications. With a 48 x 48mm (1/16 DIN) mounting this is highly versatile from both a mounting and function perspective

Features include:
6 Digit LED display
24V & 230V options available
NEMA 4X Protection (IP65 frontal, IP20 rear)
SPST relay output rated at 5A @ 250V (Resistive Load)
Supports NPN/PNP operation
Inputs for capacitive & proximity sensors and an encoder
Manual & automatic reset options

Suitable application fields include:
Machine processing of glass, marble, plastic, sheet iron & fabric
Filling systems
Quality control roller systems
Packaging machinery
Measurement automation

Standards

GOST-R & CE Approved

Specifications
Attribute Value
Supply Voltage 24 V
Count Mode Pulse
Display Type LED
Input Type Transistor
Connection Type Flying Lead
Reset Method Automatic, Manual
Number of Digits 6
Mounting Type Panel Mount
Output / Interface Relay
Count Direction Bi-Directional
Digit Height 8 mm
Maximum Count Frequency 20kHz
Display Range 0 → 99.99
Cutout Height 48mm
Weight 210g
Approvals CE; GOST-R
Maximum Temperature +50°C
Cutout Size 48 x 48 mm
Meter Type Electronic
Series RS PRO
Depth 95mm
Cutout Width 48mm
Minimum Operating Temperature 0°C
Measurement Range 0 → 99.99
Function Counter
Maximum Operating Temperature +50°C
