Kübler K07 Counter, 7 Digit, 10Hz, 24 V dc
- RS Stock No.:
- 656-5935
- Mfr. Part No.:
- 1.139.200.418
- Brand:
- Kübler
2 In Global stock for delivery within 10 working day(s)
59 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$72.97
(exc. GST)
$80.27
(inc. GST)
| Units | Per unit |
| 1 - 4 | $72.97 |
| 5 - 9 | $72.05 |
| 10 + | $70.76 |
- RS Stock No.:
- 656-5935
- Mfr. Part No.:
- 1.139.200.418
- Brand:
- Kübler
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

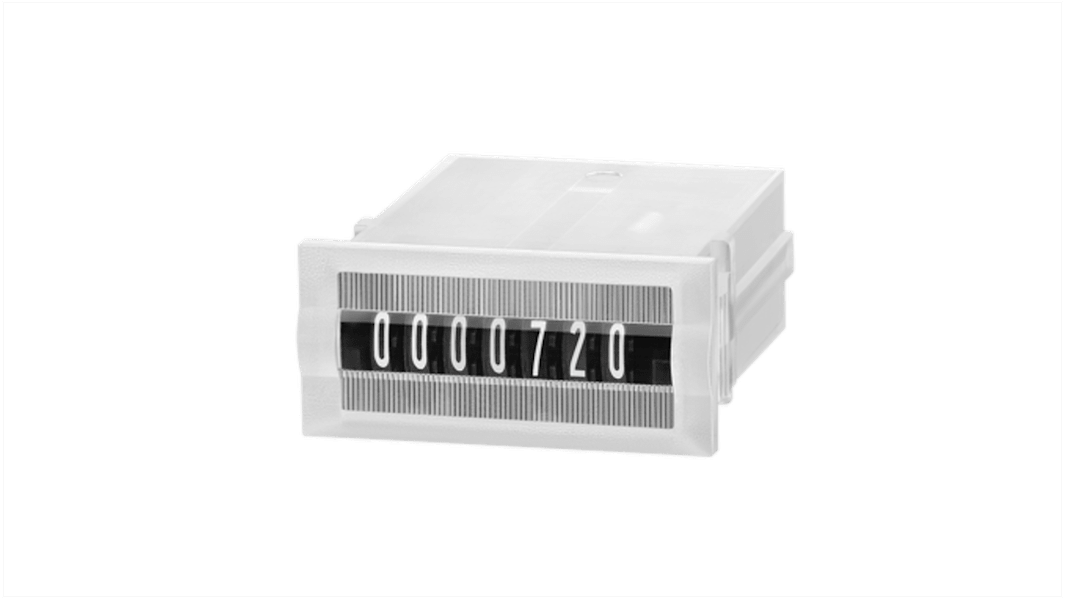

Type K07 - micro cumulative counter, 7-digit, front panel mounting
Compact, 7-digit counter
For front panel and print mounting
Minimal space required due to small size
Highly shock-resistant
Low energy consumption
Magnifying windows enable digits displayed to appear 4 mm in height
Visibility of display comparable with larger counters
DC voltage type with solder connections
For front panel and print mounting
Minimal space required due to small size
Highly shock-resistant
Low energy consumption
Magnifying windows enable digits displayed to appear 4 mm in height
Visibility of display comparable with larger counters
DC voltage type with solder connections
PCB, Surface & DIN Rail Mounting
All units are non-resettable and are continuously rated,Counters may be damaged if connected to inductive loads where high voltage transients may be present. Should this be unavoidable, use a suitable suppression circuit (refer to the Capacitors section) connected across the count or reset coil terminals.,Count rate of all products is 10Hz.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Count Mode | Impulses |
| Input Type | Voltage |
| Connection Type | Solder Pin |
| Reset Method | No Reset |
| Number of Digits | 7 |
| Mounting Type | Panel Mount |
| Count Direction | Up |
| Digit Height | 4 mm |
| Maximum Count Frequency | 10Hz |
| Minimum Operating Temperature | -10°C |
| Series | K07 |
| Maximum Operating Temperature | +85°C |
