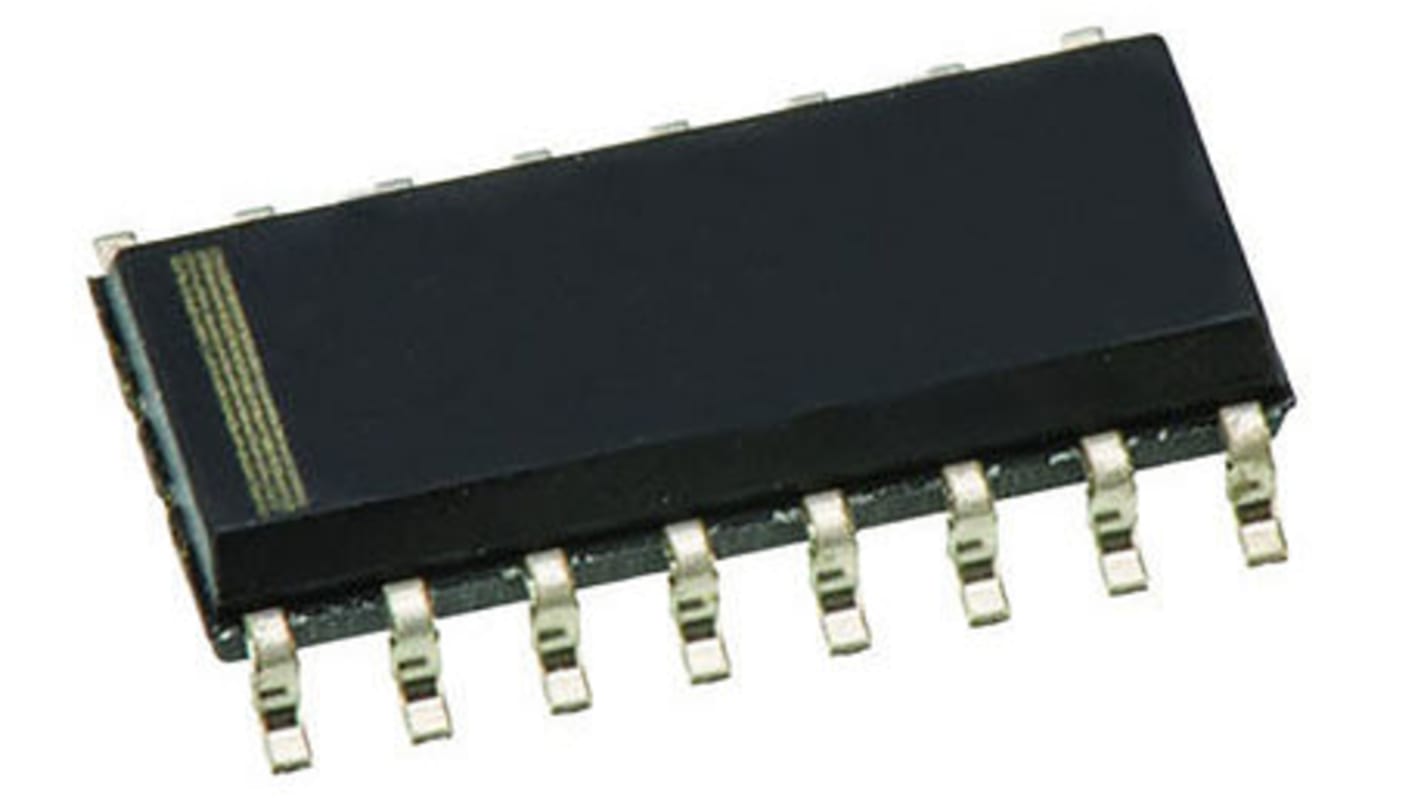

ON Semiconductor MC74HC595ADG 8-stage Shift Register, Serial to Serial/Parallel, 2 → 6 V, 16-Pin SOIC

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

74HC Family, ON Semiconductor

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

74HC Family

Specifications
Attribute Value
Package Type SOIC
Logic Function Shift Register
Number of Stages 8
Logic Family HC
Mounting Type Surface Mount
Operation Mode Serial to Serial/Parallel
Number of Elements 1
Pin Count 16
Minimum Operating Supply Voltage 2 V
Maximum Operating Supply Voltage 6 V
Dimensions 10 x 4 x 1.5mm
Length 10mm
Width 4mm
Triggering Type Positive Edge
Maximum Operating Temperature +125 °C
Height 1.5mm
Minimum Operating Temperature -55 °C
Reset Type Asynchronous
Direction Type Uni-Directional
195 : Next working day (AU stock)
5 : 7 working days (Global stock)
Price (ex. GST) Each (In a Pack of 5)
$ 0.786
(exc. GST)
$ 0.865
(inc. GST)
units
Per unit
Per Pack*
5 - 20
$0.786
$3.93
25 - 95
$0.698
$3.49
100 - 245
$0.654
$3.27
250 - 495
$0.552
$2.76
500 +
$0.506
$2.53
*price indicative
