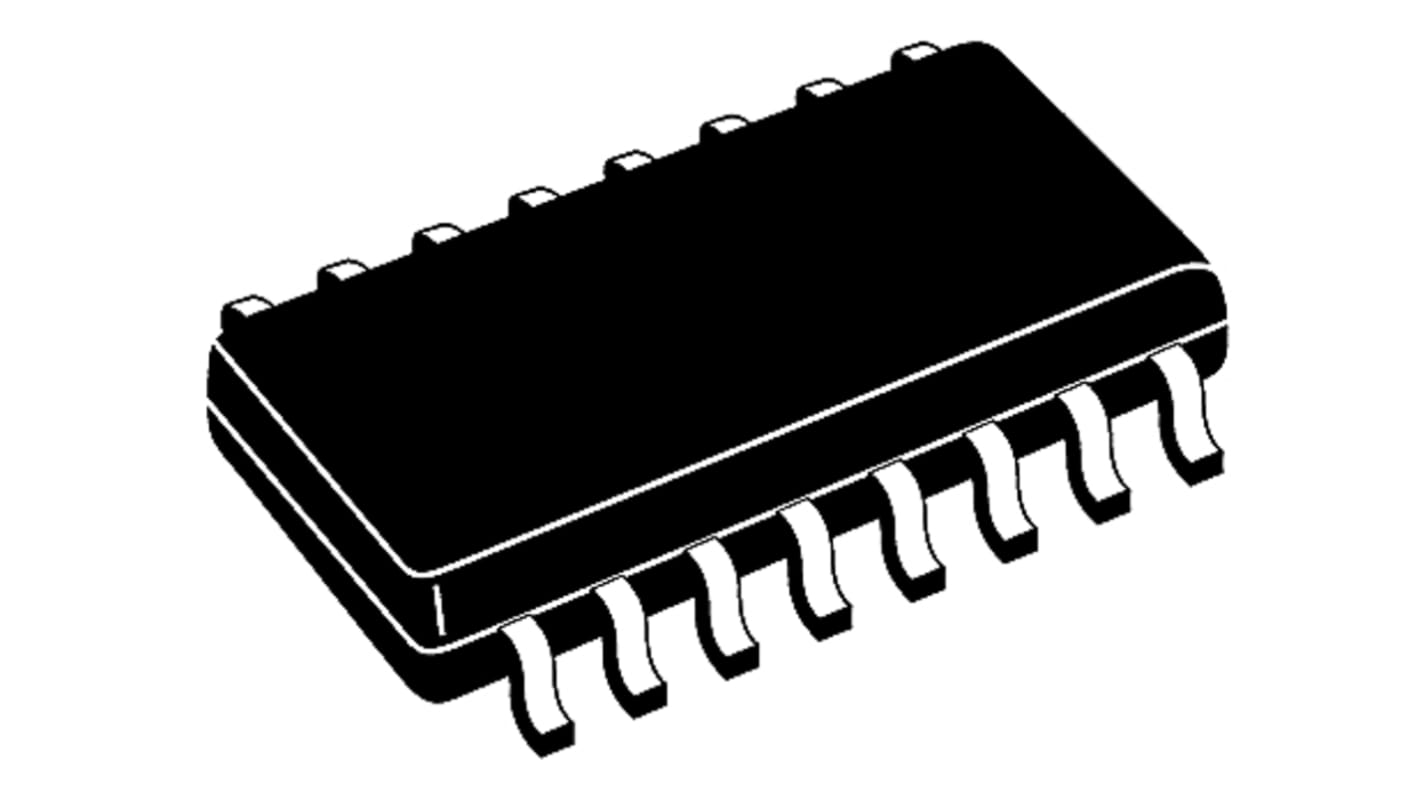

Nexperia 74HC597D,653 8-stage Shift Register, Parallel to Serial, , Uni-Directional, 16-Pin SOIC

  • RS Stock No. 170-8019
  • Mfr. Part No. 74HC597D,653
  • Manufacturer Nexperia
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The 74HC595, 74HCT595 is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs. Both the shift and storage register have separate clocks. The device features a serial input (DS) and a serial output (Q7S) to enable cascading and an asynchronous reset MR input. A LOW on MR will reset the shift register. Data is shifted on the LOW-to-HIGH transitions of the SHCP input. The data in the shift register is transferred to the storage register on a LOW-to-HIGH transition of the STCP input. If both clocks are connected together, the shift register will always be one clock pulse ahead of the storage register.

Simple control interface
I/O expansion
Asynchronous and synchronous load options
High frequency
Cascadable
LED drivers
Key applications
Displays
Control units

Specifications
Attribute Value
Package Type SO
Logic Function Shift Register
Number of Stages 8
Logic Family 74HC
Mounting Type Surface Mount
Operation Mode Parallel to Serial
Number of Elements 1
Pin Count 16
Minimum Operating Supply Voltage 2 V
Maximum Operating Supply Voltage 6 V
Dimensions 10 x 4 x 1.45mm
Length 10mm
Width 4mm
Height 1.45mm
Maximum Operating Temperature +125 °C
Reset Type Asynchronous
Minimum Operating Temperature -40 °C
Direction Type Uni-Directional
Triggering Type Positive Edge
2500 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each (On a Reel of 2500)
$ 0.211
(exc. GST)
$ 0.232
(inc. GST)
units
Per unit
Per Reel*
2500 - 2500
$0.211
$527.50
5000 - 10000
$0.205
$512.50
12500 - 22500
$0.199
$497.50
25000 +
$0.193
$482.50
*price indicative
