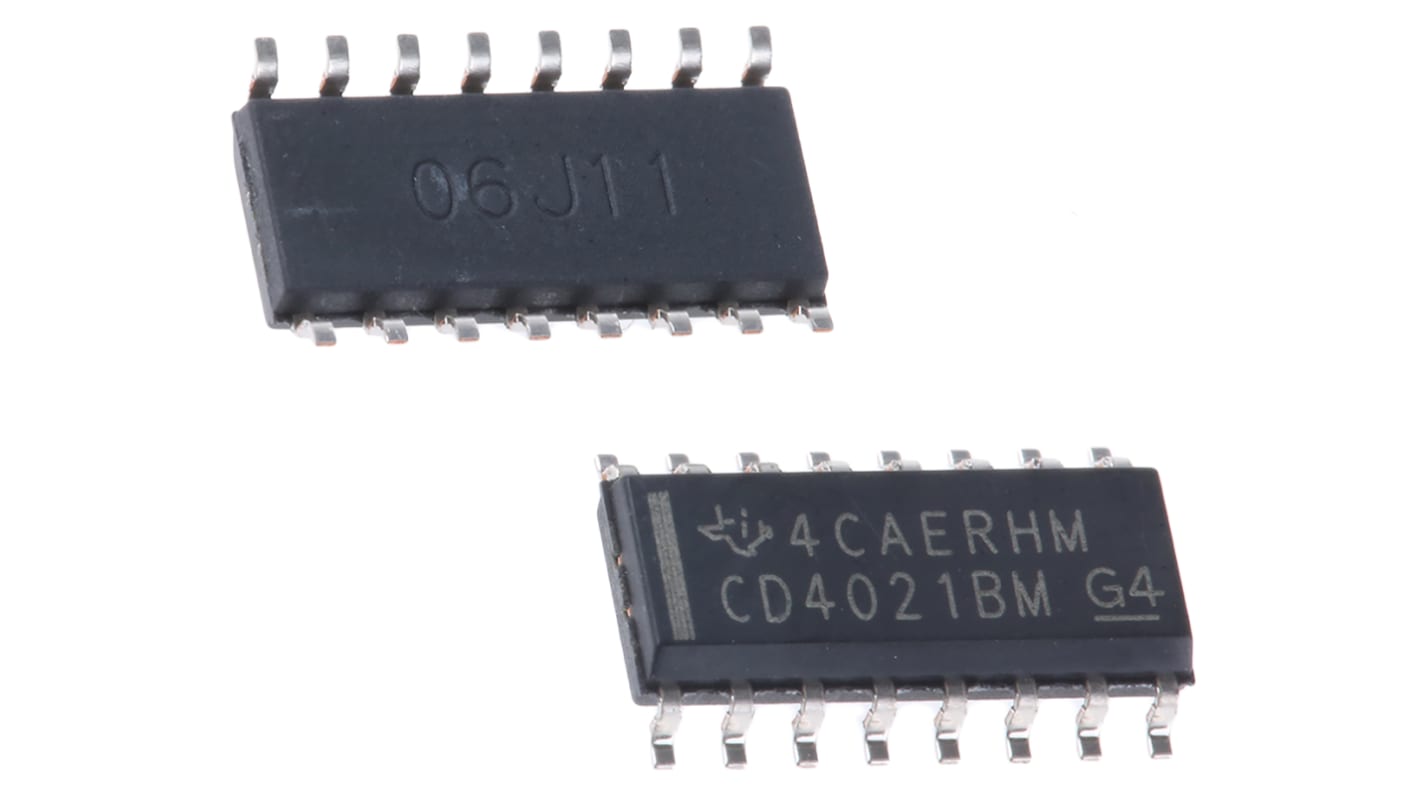

Texas Instruments CD4021BM 8-stage Shift Register, Serial/Parallel to Serial, 16-Pin SOIC

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

4000 Series Counters & Shift Registers, Texas Instruments

Texas Instruments range of Counters & Shift Registers from the 4000 Series CMOS Logic Family

4000 CMOS Logic Family, Texas Instruments

CMOS Family devices
Wide operating voltage range: 3 to 18V

Specifications
Attribute Value
Package Type SOIC
Logic Function Shift Register
Number of Stages 8
Logic Family 4000
Mounting Type Surface Mount
Operation Mode Serial/Parallel to Serial
Number of Elements 1
Pin Count 16
Minimum Operating Supply Voltage 3 V
Maximum Operating Supply Voltage 18 V
Dimensions 9.9 x 3.91 x 1.58mm
Length 9.9mm
Width 3.91mm
Minimum Operating Temperature -55 °C
Height 1.58mm
Maximum Operating Temperature +125 °C
Direction Type Uni-Directional
Triggering Type Positive Edge
Temporarily out of stock - back order for despatch when stock is available
Price (ex. GST) Each (In a Tube of 40)
$ 0.635
(exc. GST)
$ 0.699
(inc. GST)
units
Per unit
Per Tube*
40 +
$0.635
$25.40
*price indicative
