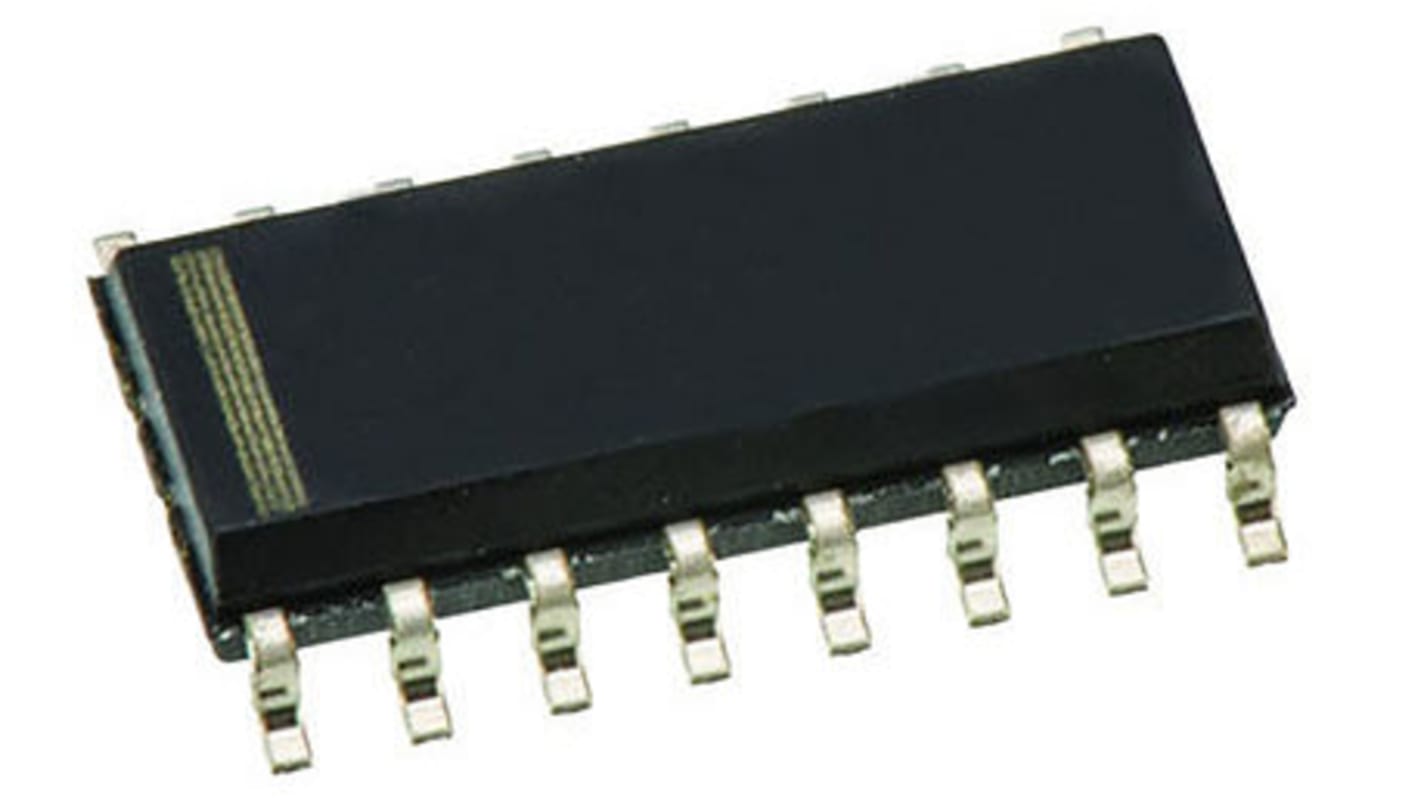

DiodesZetex 74HCT595S16-13 8-stage Surface Mount Octal Bus Register HCT, 16-Pin SOIC
- RS Stock No.:
- 122-2837
- Mfr. Part No.:
- 74HCT595S16-13
- Brand:
- DiodesZetex
On back order for despatch 07/05/2025, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 2500)
$0.226
(exc. GST)
$0.249
(inc. GST)
| Units | Per unit | Per Reel* |
| 2500 - 2500 | $0.226 | $565.00 |
| 5000 - 7500 | $0.226 | $565.00 |
| 10000 + | $0.225 | $562.50 |
| *price indicative | ||
- RS Stock No.:
- 122-2837
- Mfr. Part No.:
- 74HCT595S16-13
- Brand:
- DiodesZetex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
74HCT Family, DiodesZetex
The 74HCT are a high-speed series of CMOS devices from DiodesZetex. Suitable for general purpose, the logic ICs are pin compatible with low power Schottky (LSTTL). They also benefit from low power consumption. The variety of types available include standard logic gates, hex inverters, buffers, Schmitt trigger inverters and counters & shift registers.
Supply Voltage Range: 4.5V to 5.5V
Sinks or Sources 4mA at VCC: 4.5V
CMOS Low Power Consumption
Schmitt Trigger Action at All Inputs
ESD Protection Exceeds JESD 22 - 200V Machine Model (A115-A)- 2000V Human Body Model (A114-A) - Exceeds 1000V Charged Device Model (C101C)
Sinks or Sources 4mA at VCC: 4.5V
CMOS Low Power Consumption
Schmitt Trigger Action at All Inputs
ESD Protection Exceeds JESD 22 - 200V Machine Model (A115-A)- 2000V Human Body Model (A114-A) - Exceeds 1000V Charged Device Model (C101C)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
74HCT Family
Specifications
Attribute | Value |
|---|---|
| Package Type | SOIC |
| Logic Function | Shift Register |
| Number of Stages | 8 |
| Logic Family | HCT |
| Mounting Type | Surface Mount |
| Counter Type | Octal |
| Operation Mode | Serial to Parallel |
| Number of Elements | 1 |
| Pin Count | 16 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Dimensions | 10 x 4 x 1.5mm |
| Maximum Operating Temperature | 125 °C |
| Triggering Type | Positive Edge |
| Minimum Operating Temperature | -40 °C |
| Direction Type | Uni-Directional |
