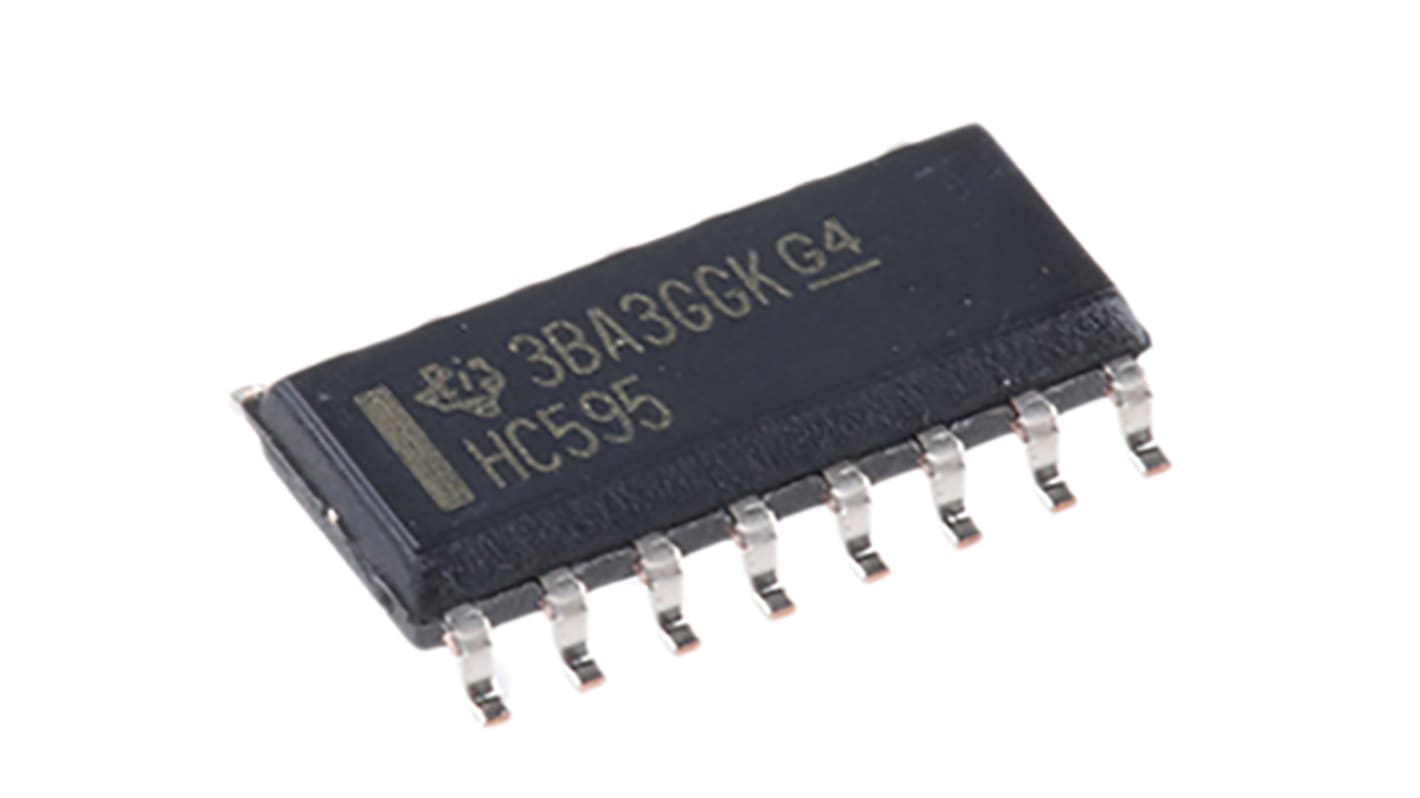

Texas Instruments SN74HC595DR 8-stage Surface Mount Shift Register HC, 16-Pin SOIC
- RS Stock No.:
- 121-8427
- Mfr. Part No.:
- SN74HC595DR
- Brand:
- Texas Instruments
On back order for despatch 05/03/2025, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 2500)
$0.292
(exc. GST)
$0.321
(inc. GST)
| Units | Per unit | Per Reel* |
| 2500 - 2500 | $0.292 | $730.00 |
| 5000 - 7500 | $0.285 | $712.50 |
| 10000 + | $0.28 | $700.00 |
| *price indicative | ||
- RS Stock No.:
- 121-8427
- Mfr. Part No.:
- SN74HC595DR
- Brand:
- Texas Instruments
Technical data sheets
Legislation and Compliance
Product Details
74HC Family Counters & Shift Registers, Texas Instruments
Texas Instruments range of Counters and Shift Registers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
74HC Family
Specifications
Attribute | Value |
|---|---|
| Package Type | SOIC |
| Logic Function | Shift Register |
| Number of Stages | 8 |
| Logic Family | HC |
| Mounting Type | Surface Mount |
| Operation Mode | Serial to Serial, Parallel |
| Number of Elements | 1 |
| Pin Count | 16 |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Supply Voltage | 6 V |
| Dimensions | 9.9 x 3.91 x 1.58mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | 85 °C |
| Reset Type | Asynchronous |
| Triggering Type | Positive Edge |
| Direction Type | Uni-Directional |
