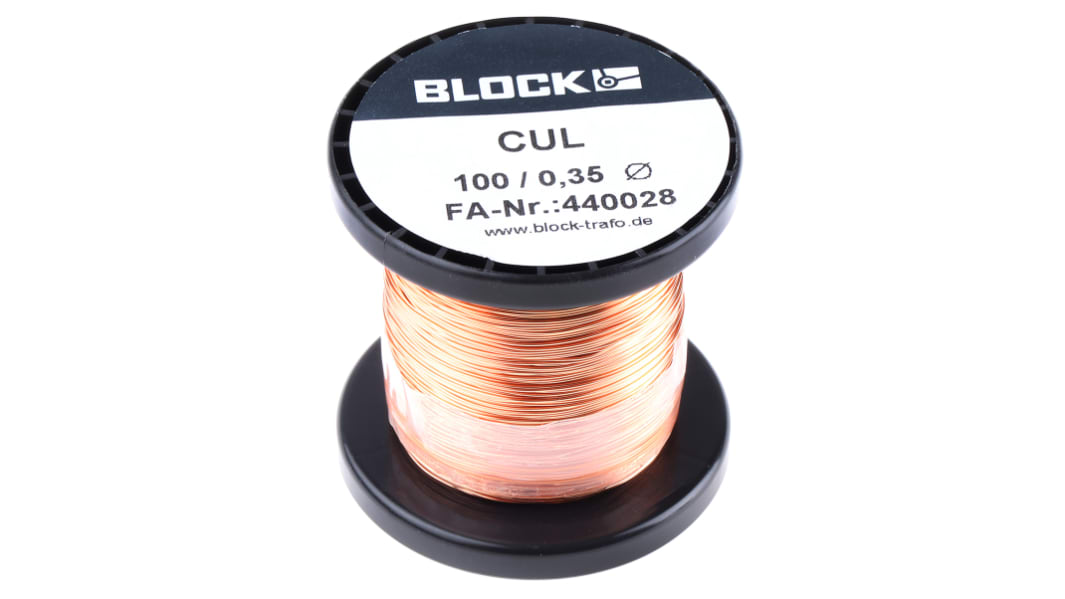

Block Single Core 0.35mm diameter Copper Wire, 87m Long

  • RS Stock No. 779-0703
  • Mfr. Part No. CUL 100/0,35
  • Manufacturer Block
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Block Enamelled Copper Wire

From Block, a range of enamelled copper wire supplied on plastic spools. The single strand copper wire features a thin covering of enamel which acts as great insulation ensuring good chemical and thermal resistance. The enamel coating also prevents shorting. Enamelled copper wire or magnet wire is particularly useful for the production of tight coils. Block insulated copper wire is available in various diameters, AWG (American Wire Gauge) sizes and current ratings.

Features and Benefits

• Excellent insulation properties
• Copper possesses good chemical and corrosion protection
• Long term thermal resistance
• Solderable

Applications

Enamelled single strand copper conductors are utilised in a wide range of electronic manufacturing. The most common are

• Motor coil production
• Transformer winding
• Inductors for electronics
• Relay coils
• Speaker coils
• Potentiometers

Specifications
Attribute Value
Cross Sectional Area 0.11 mm²
American Wire Gauge 27 AWG
Core Strands 1/0.35 mm
Insulation Material PUR
Outer Diameter 0.35mm
Length 87m
Finish Enamelled
Maximum Operating Temperature +155°C
Cable Type Single Core
10 : Next working day (AU stock)
11 : 5 working days (Global stock)
Price (ex. GST) Each
$ 16.74
(exc. GST)
$ 18.41
(inc. GST)
units
Per unit
1 - 4
$16.74
5 +
$15.67
