- RS Stock No.:
- 202-3803
- Mfr. Part No.:
- GHG4118101R1827
- Brand:
- Eaton
- RS Stock No.:
- 202-3803
- Mfr. Part No.:
- GHG4118101R1827
- Brand:
- Eaton
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Start Pushbutton
Depth: 90mm
Group and Category
II 2 G EEx e d IIC T6
Certificate No.
PTB 00 ATEX 3117

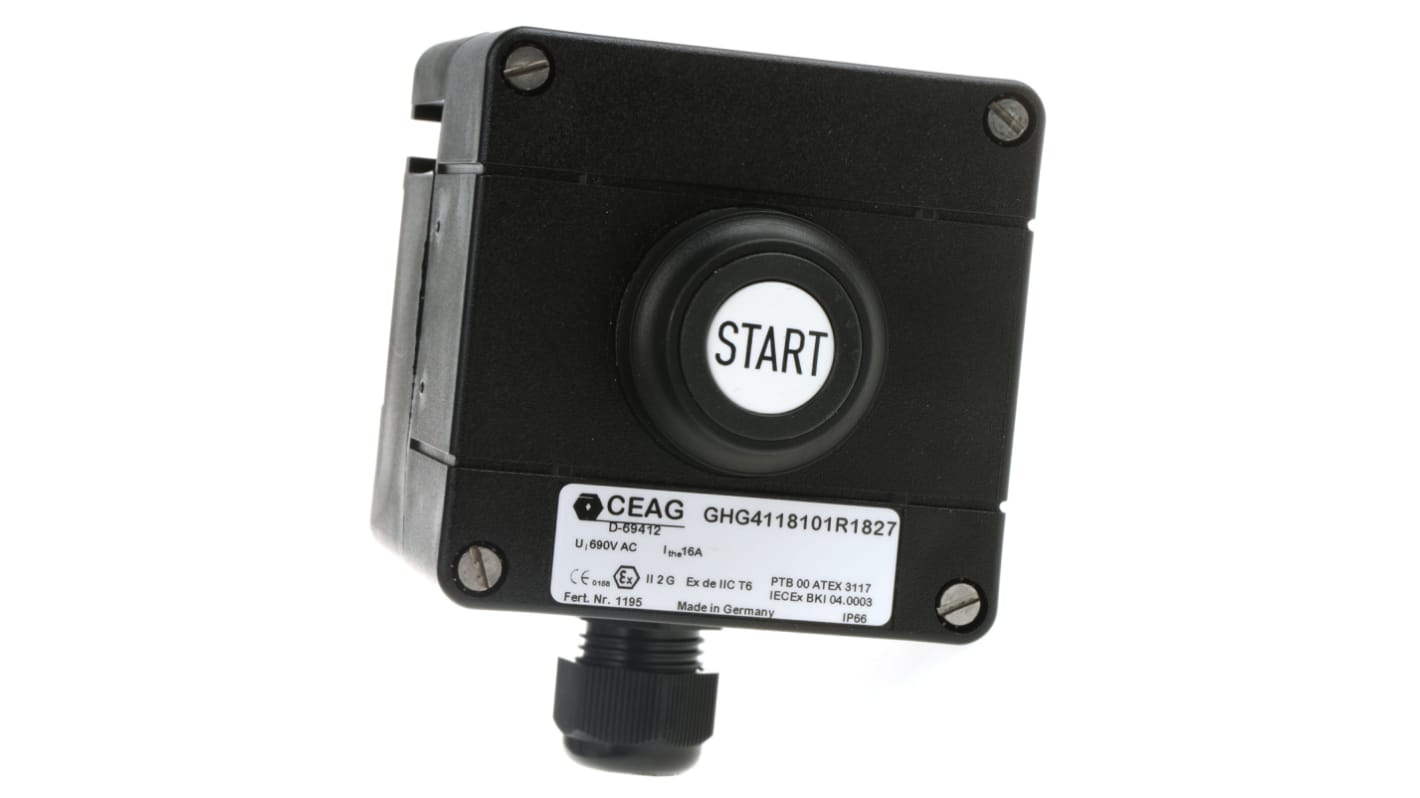

Eaton CEAG Crouse-Hinds Push Button Control Station, 500V AC / 110V DC maximum Voltage - GHG4118101R1827
Protect a push button with this control station from Eaton CEAG Crouse-Hinds. It reduces the risk of dirt and moisture negatively affecting the good function of a button and safeguards it against everyday wear and tear. This control station is suitable for industrial use and is widely found in factories and workshops. The enclosure is made from hardwearing thermoplastic that withstands abrasion and shock. This material also resists corrosion, making the unit compatible with harsh operating conditions. For greater safety, the unit's plastic construction offers electrical isolation to protect operators against electric shocks. You can use this control station in explosive atmospheres as it's certified as safe for hazardous areas.
Features & Benefits
IP66 (ingress protection) rated housing that's dust-tight and protected against hose-directed water and rain
Wide operating temperature range of -20°C to +40°C for use in demanding settings
Space-saving size with compact dimensions of 85 (L) x 85 (W) x 77.5mm (D)
Includes a cable gland to make connection and assembly easier
Wide operating temperature range of -20°C to +40°C for use in demanding settings
Space-saving size with compact dimensions of 85 (L) x 85 (W) x 77.5mm (D)
Includes a cable gland to make connection and assembly easier
How many push buttons can you house in this control station?
This control station can house one push button, such as an emergency stop switch.
Note
Eaton formerly known as CEAG
CEAG Hazardous Area
Suitable for use in Zone 1 hazardous areas
Impact resistant thermoplastic
Ingress protection to IP67 (unless stated otherwise)
Impact resistant thermoplastic
Ingress protection to IP67 (unless stated otherwise)
Rated voltage: contact blocks; 500V, signal lamps; 240V
Rated current: contact blocks; 16A
M20 bottom cable entry complete with cable-gland
Rated current: contact blocks; 16A
M20 bottom cable entry complete with cable-gland
Specifications
Attribute | Value |
---|---|
Enclosure Colour | Black |
IP Rating | IP65, IP67 |
Cutout Diameter | 22mm |
Length | 85mm |
Width | 85mm |
Depth | 77.5mm |
Hazardous Area Certification | ATEX |
Minimum Operating Temperature | -20°C |
Maximum DC Voltage | 110V |
Maximum AC Voltage | 500V |
Maximum Operating Temperature | +40°C |
