Legislation and Compliance
Product Details

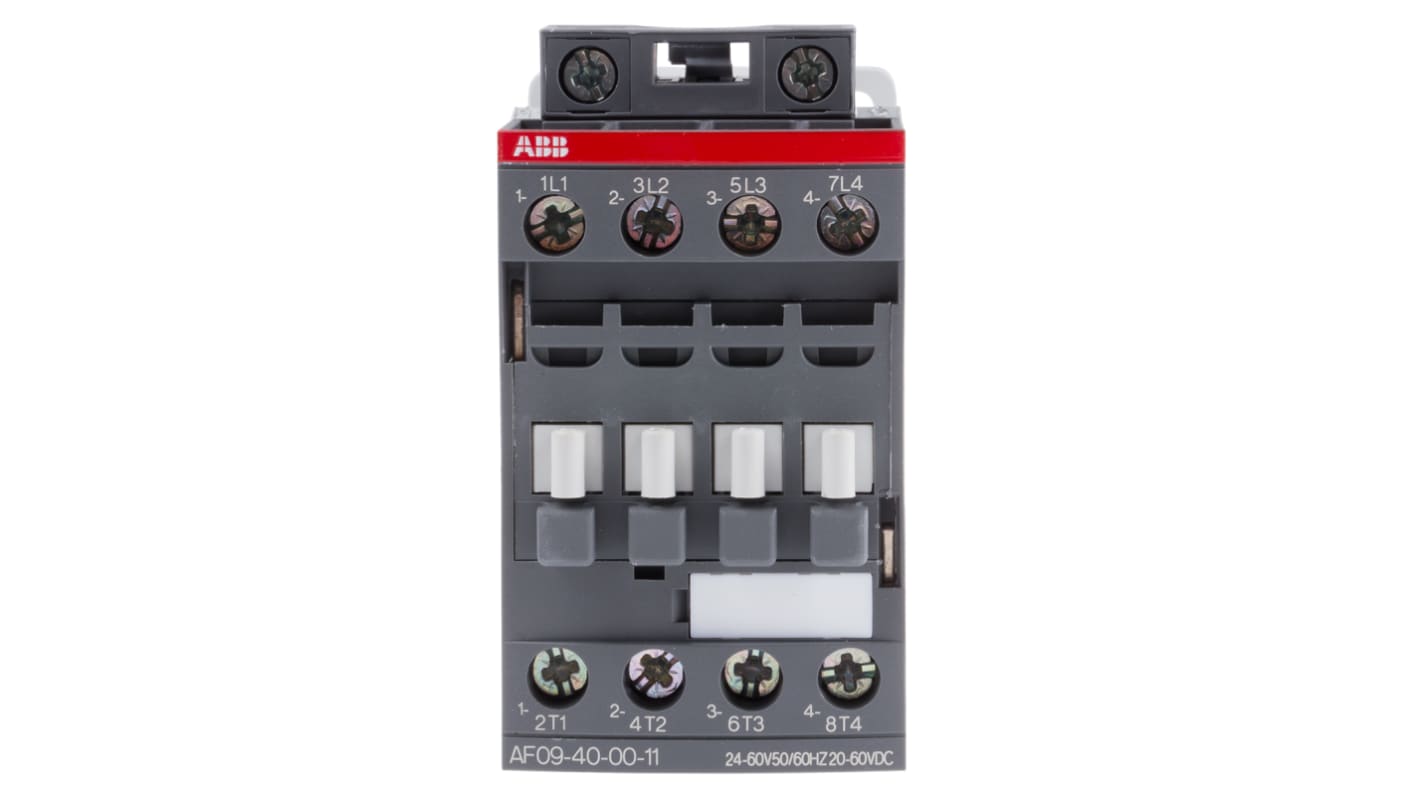

ABB Contactor, 11 to 95ms Response Time, 3.2W Maximum Power Loss - AF Series - 1SBL137201R1100 AF09-40-00-11
Use this ABB contactor to safely switch your high-current industrial hardware. As indicated by its current rating of 25A, it can handle the large electrical loads needed for reliable equipment activation. For wide system coverage, the device switches up to four circuits at once with its four poles. Built-in surge protection means it resists damage from electrical faults, so you can be sure of reliable control. As this contactor has a response time of between 11 and 95ms, it quickly reacts to your inputs and achieves efficient switching.
Features & Benefits
• Up to 600 electrical switching cycles per hour for reliable repeated switching
• Low power loss of 0.8W per active pole for energy-efficient activation
• Mounts onto a universal DIN rail for simple installation in existing control cabinets
• Works with AC and DC supplies at 24V for wide compatibility
• Low power loss of 0.8W per active pole for energy-efficient activation
• Mounts onto a universal DIN rail for simple installation in existing control cabinets
• Works with AC and DC supplies at 24V for wide compatibility
Applications
• Motor starters
• Lighting systems
• Power distribution
• Aerospace industry
• Lighting systems
• Power distribution
• Aerospace industry
What's the difference between a contactor and a relay?
A contactor such as this unit performs the same repetitive switching processes as a relay, but handles larger current loads, usually over 10A.
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24 V ac/dc |
Number of Poles | 4 |
Contact Voltage Rating | 690 V ac |
Contact Current Rating | 25 A |
Range | AF09-40-00-11 |
Power Rating | 4 kW |
Series | AF |
Normal State Configuration | 4NO |
Number Of Auxiliary Contacts | 0 |
Terminal Type | Screw |
Width | 45mm |
Length | 86mm |
Depth | 77mm |
Minimum Operating Temperature | -40°C |
Mounting Style | Rail Mount |
Maximum Operating Temperature | +70°C |
