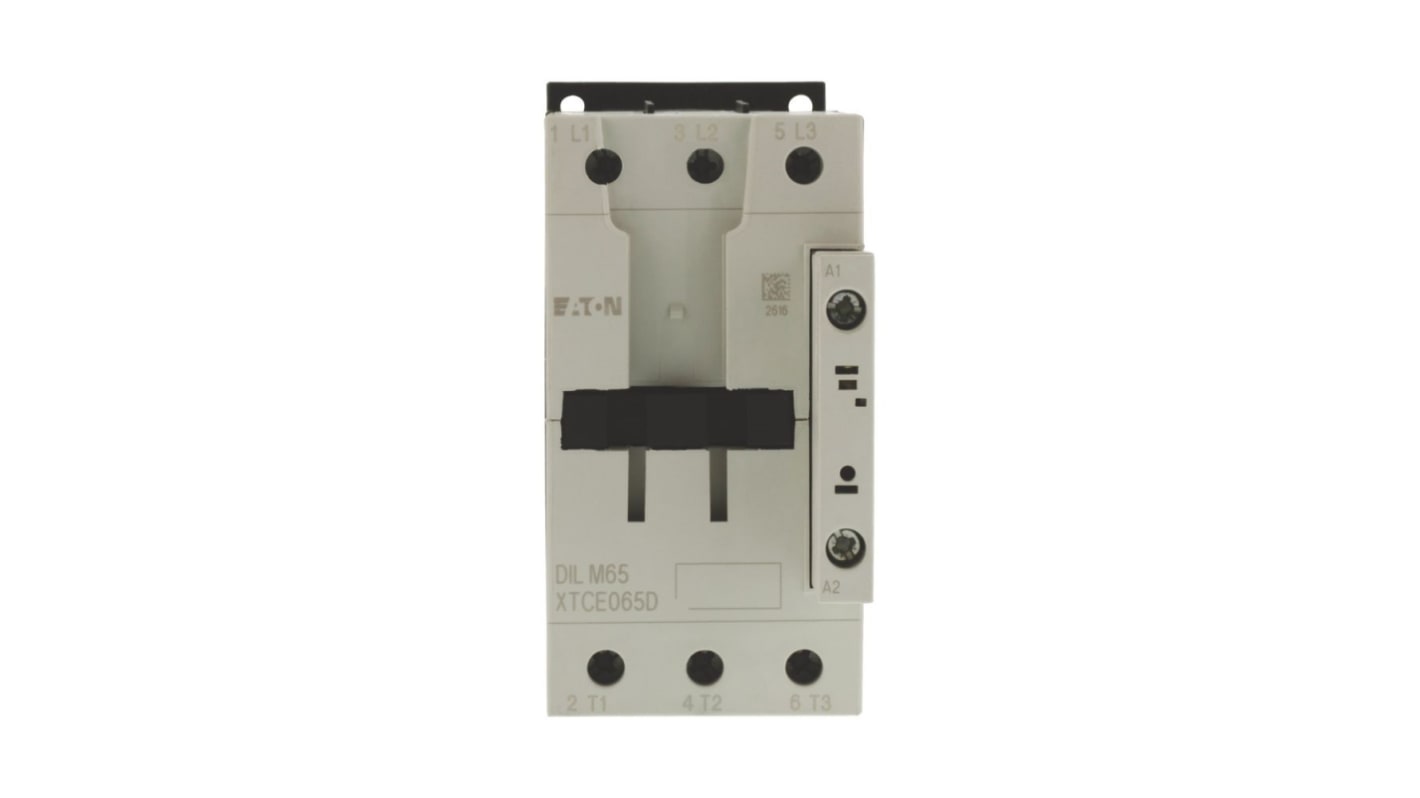

Eaton Contactor, 110 V ac Coil, 3-Pole, 65 A, 30 kW, 3NO, 400 V ac
- RS Stock No.:
- 513-0106
- Mfr. Part No.:
- 277891 DILM65(110V50HZ,120V60HZ)
- Brand:
- Eaton
12 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$673.25
(exc. GST)
$740.57
(inc. GST)
| Units | Per unit |
| 1 + | $673.25 |
- RS Stock No.:
- 513-0106
- Mfr. Part No.:
- 277891 DILM65(110V50HZ,120V60HZ)
- Brand:
- Eaton
Legislation and Compliance
Product Details
DILM Contactors, 3 Phase
X Start is the latest generation of Contactors, Overloads and Relays from Moeller, based on the tried and tested DIL series. This generation of modular components benefits from the advances in technology for motor switching and control, which in turn gives the user a number of additional benefits.
Features & Benefits
All the contactors are modular and have a common design
The range is extremely durable, able to handle all demands and features immunity to interference and control circuit reliability-even when used in conjunction with PLCs
Electronic power adjustment of the magnet system on the DC contactors enables very small frame sizes so that AC and DC units now have identical dimensions. This now allows direct arrangement of AC and DC contactors beside each other
The range is extremely durable, able to handle all demands and features immunity to interference and control circuit reliability-even when used in conjunction with PLCs
Electronic power adjustment of the magnet system on the DC contactors enables very small frame sizes so that AC and DC units now have identical dimensions. This now allows direct arrangement of AC and DC contactors beside each other
Typical Applications
Three normally-open main contacts
DC contactors from 12A have an electronic drive that removes the need for coupling relays and all DC contactors up to 150A have a in-built suppressor circuit
Box terminals with double coupling areas gives a guaranteed integrity of connection while wiring different cross-sections and also reduces cabling faults
DC contactors from 12A have an electronic drive that removes the need for coupling relays and all DC contactors up to 150A have a in-built suppressor circuit
Box terminals with double coupling areas gives a guaranteed integrity of connection while wiring different cross-sections and also reduces cabling faults
This range of contactors can be used across a multitude of applications, users will commonly find these contactors being used within industrial settings such as factory automation, railway transportation, electrical systems, electric motor, lighting, and mechanical engineering.
How contactors operate?
Contactors, unlike relays, are specifically designed to connect to high current load devices. Used in larger-scale applications, a contactor is a switch that can be controlled remotely, specifically designed to switch a large amount of electrical power through its contacts. If a device has the ability to switch more than 15 amperes it is called a contactor. These devices also feature high coil voltages which is rare within relays.
EATON DILM65, 3 Pole AC Contactor
Positively driven contacts within the auxiliary contact module
Mirror contact with auxiliary contact module
Combination of side-mounted and front auxiliary contact modules up to six auxiliary contacts possible
Mirror contact with auxiliary contact module
Combination of side-mounted and front auxiliary contact modules up to six auxiliary contacts possible
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 110 V ac |
| Number of Poles | 3 |
| Contact Voltage Rating | 400 V ac |
| Contact Current Rating | 65 A |
| Range | xStart |
| Power Rating | 30 kW |
| Series | Eaton Moeller |
| Normal State Configuration | 3NO |
| Number Of Auxiliary Contacts | 0 |
| Terminal Type | Screw |
| Width | 77mm |
| Length | 115mm |
| Depth | 147mm |
| Pole and Throw Configuration | 3P |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +40°C |
