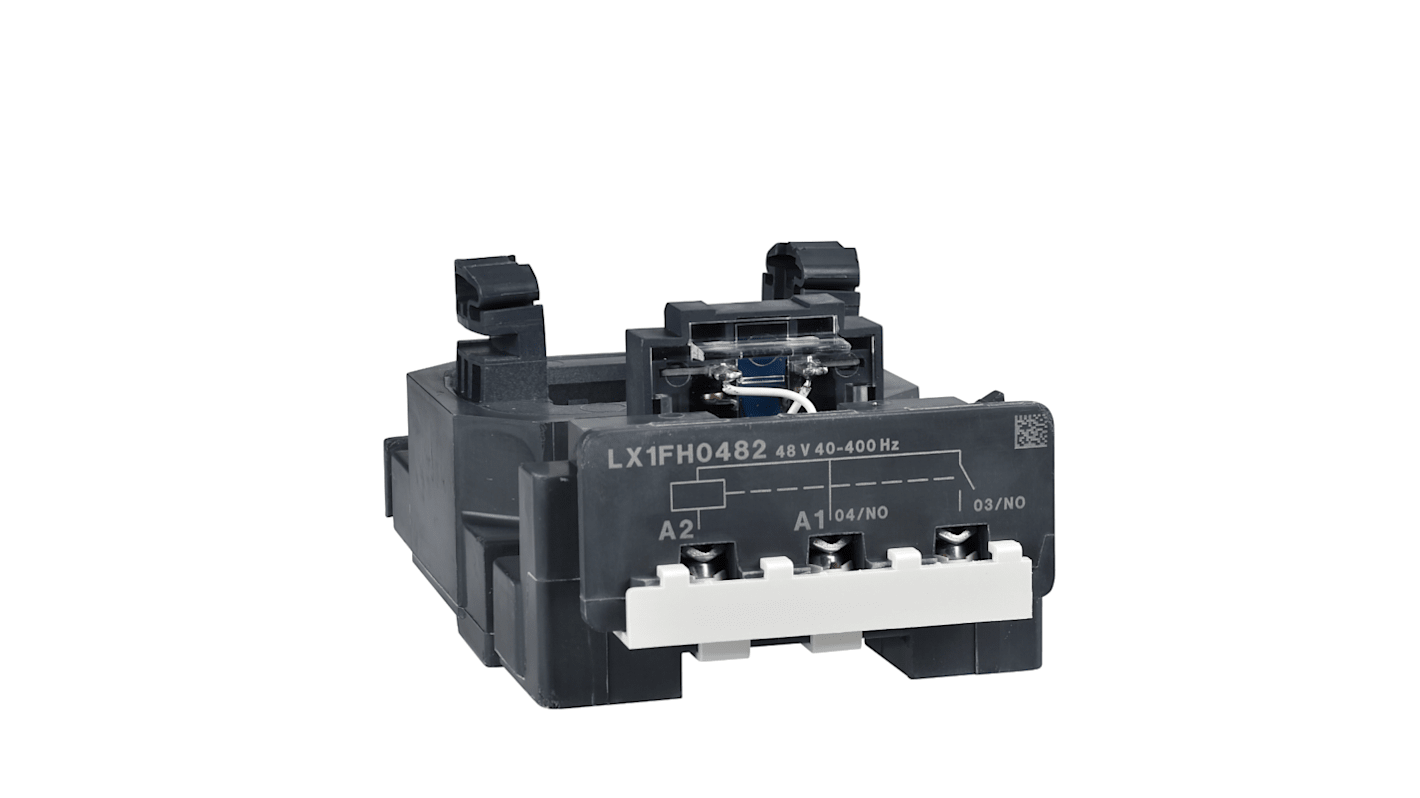

Schneider Electric Contactor Coil for use with LC1 Series

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

Coils

For use with the 3 or 4 pole F range contactors, see compatability table

Compatibility
Contactor Size (Part No.) Coil Options
LC1F115 to LC1F150
115A to 150A
3&4 Pole Contactors
609-8097 24Vac 50Hz
609-8104 48Vac 50Hz
827-170 110Vac 50Hz
609-8110 220-230Vac 50Hz
827-186 240Vac 50Hz
609-8126 380-400Vac 50Hz
744-8484 415Vac 50Hz
LC1F185 to LC1F225
185A to 225A
3&4 Pole Contactors
609-8132 24Vac 50Hz
609-8148 48Vac 50Hz
827-192 110Vac 50Hz
744-8493 184Vac 50Hz
609-8154 220-230Vac 50Hz
827-209 240Vac 50Hz
609-8160 380-400Vac 50Hz
744-8496 415Vac 50Hz
LC1F265 & LC1F330
265A to 330A
3&4 Pole Contactors
744-8490 24Vac 40//400Hz
609-8176 48Vac 50-60Hz
419-8662 110Vac 50-60Hz
609-8182 220-230Vac 50-60Hz
419-8678 240Vac 50-60Hz
609-8198 380-400Vac 50-60Hz
LC1F400 - 400A
3 Pole Contactor
744-8500 48Vac 40//400Hz
609-8211 220-230Vac 50-60Hz
744-8503 240Vac 40//400Hz
609-8227 380-400Vac 50-60Hz
744-8507 415Vac 40//400Hz
LC1F500 - 500A
3 Pole Contactor
744-8516 48vac 40//400Hz
744-8519 110-120Vac 40//400Hz
609-8233 220-230Vac 50-60Hz
744-8513 240Vac 40//400Hz
744-8522 415-440Vac 40//400Hz
LC1F630 - 630A
3 Pole Contactor
744-8525 48Vac 40//400Hz
744-8529 110-120Vac 40//400Hz
609-8249 220-230Vac 50-60Hz
744-8538 415-440Vac 40//400Hz
Manufacturers Part No. Inrush VA Sealed VA
LX1FF Series 550 45
LX1FG Series 805 55
LX1FH Series 600//700 8//10
LX1FJ Series 1000//1150 12//18
LX1FK Series 1050//1150 16//20
LX1FL Series 1500//1730 20//25
LX1FX Series 1900//2300 40//55
Specifications
Attribute Value
Accessory Type Coil
For Use With LC1 Series
Series LX1F
On back order for despatch 20/09/2019, delivery within 5 working days from despatch date.
Price (ex. GST) Each
$ 245.29
(exc. GST)
$ 269.82
(inc. GST)
units
Per unit
1 - 2
$245.29
3 - 4
$214.64
5 +
$193.17
