Schneider Electric Mechanical Latch

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

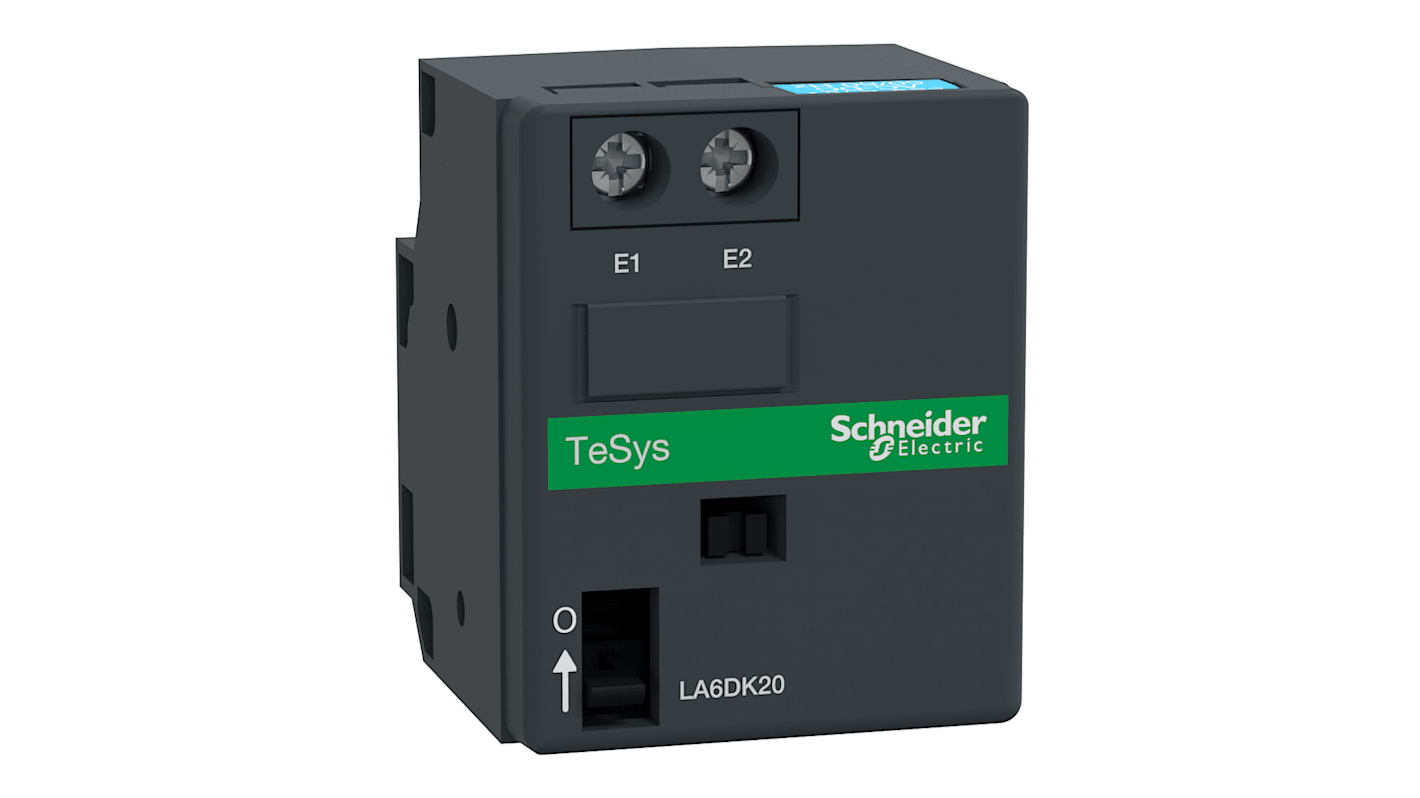

Mechanical Latch Block

On coil energisation the mechanical latch is engaged & holds the armature closed.This feature enables the contactors state to be maintained when re-starting after an interrupted cycle & allows power consumption reduction by enabling de-energisation of the contactor coil.

Remotely actuated or by front panel button
Electrical delatching pulse must be greater than 100ms
Front mounting

Note

The unlatch coil & the contactor or relay must not be energised simultaneously. Maximum on time is 30 seconds (not continuously rated). Maximum operation frequency is 36 per hour.

Specifications
Attribute Value
Series LA6D
1 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 158.40
(exc. GST)
$ 174.24
(inc. GST)
units
Per unit
1 - 2
$158.40
3 - 4
$138.60
5 +
$124.74
