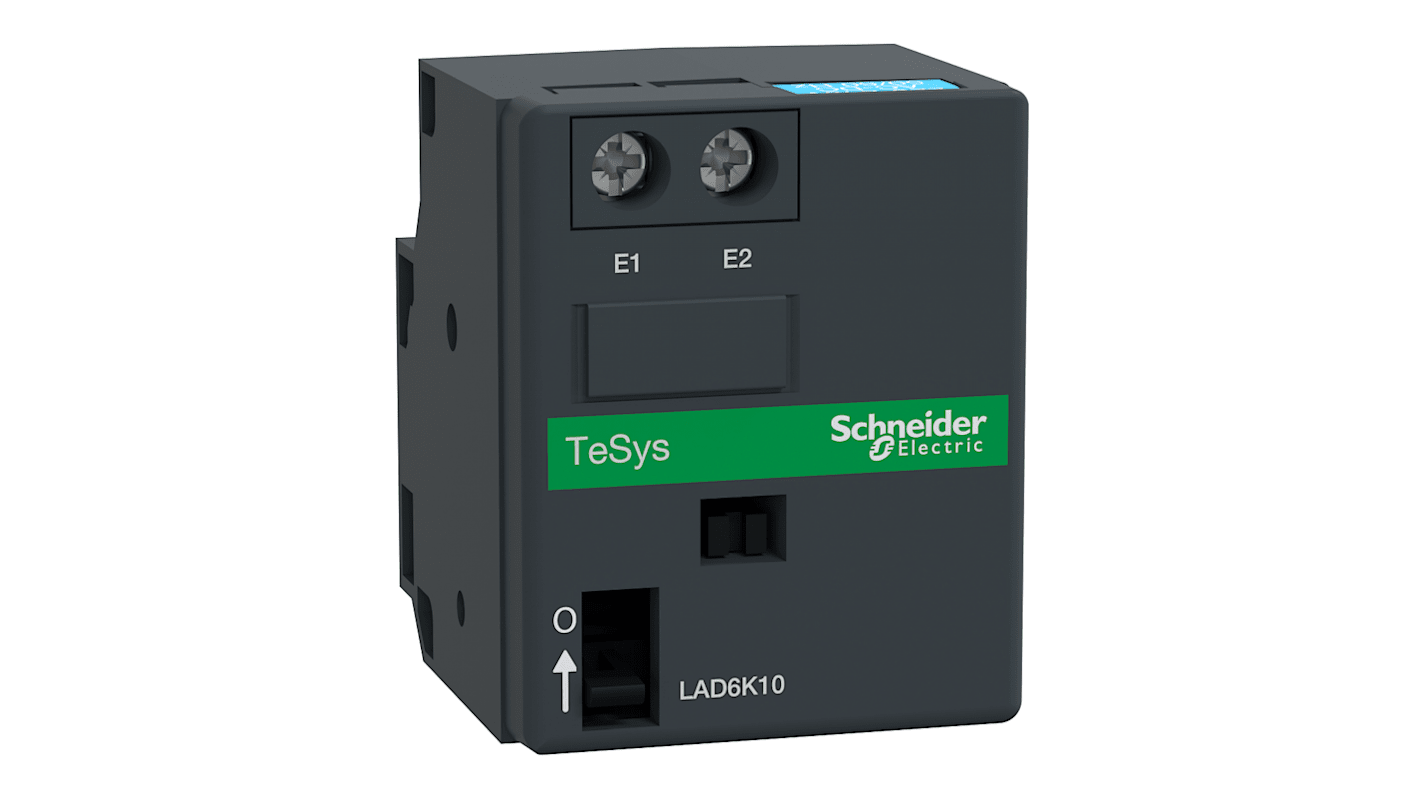

Schneider Electric Contactor Latching Block for use with LC1 Series

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

Mechanical Latch Block

On coil energisation the mechanical latch is engaged & holds the armature closed.This feature enables the contactors state to be maintained when re-starting after an interrupted cycle & allows power consumption reduction by enabling de-energisation of the contactor coil.

Remotely actuated or by front panel button
Electrical delatching pulse must be greater than 100ms
Front mounting

Note

The unlatch coil & the contactor or relay must not be energised simultaneously. Maximum on time is 30 seconds (not continuously rated). Maximum operation frequency is 36 per hour.

Specifications
Attribute Value
Accessory Type Latching Block
For Use With LC1 Series
Series LAD6
5 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 263.51
(exc. GST)
$ 289.86
(inc. GST)
units
Per unit
1 - 2
$263.51
3 - 4
$230.57
5 +
$207.52
