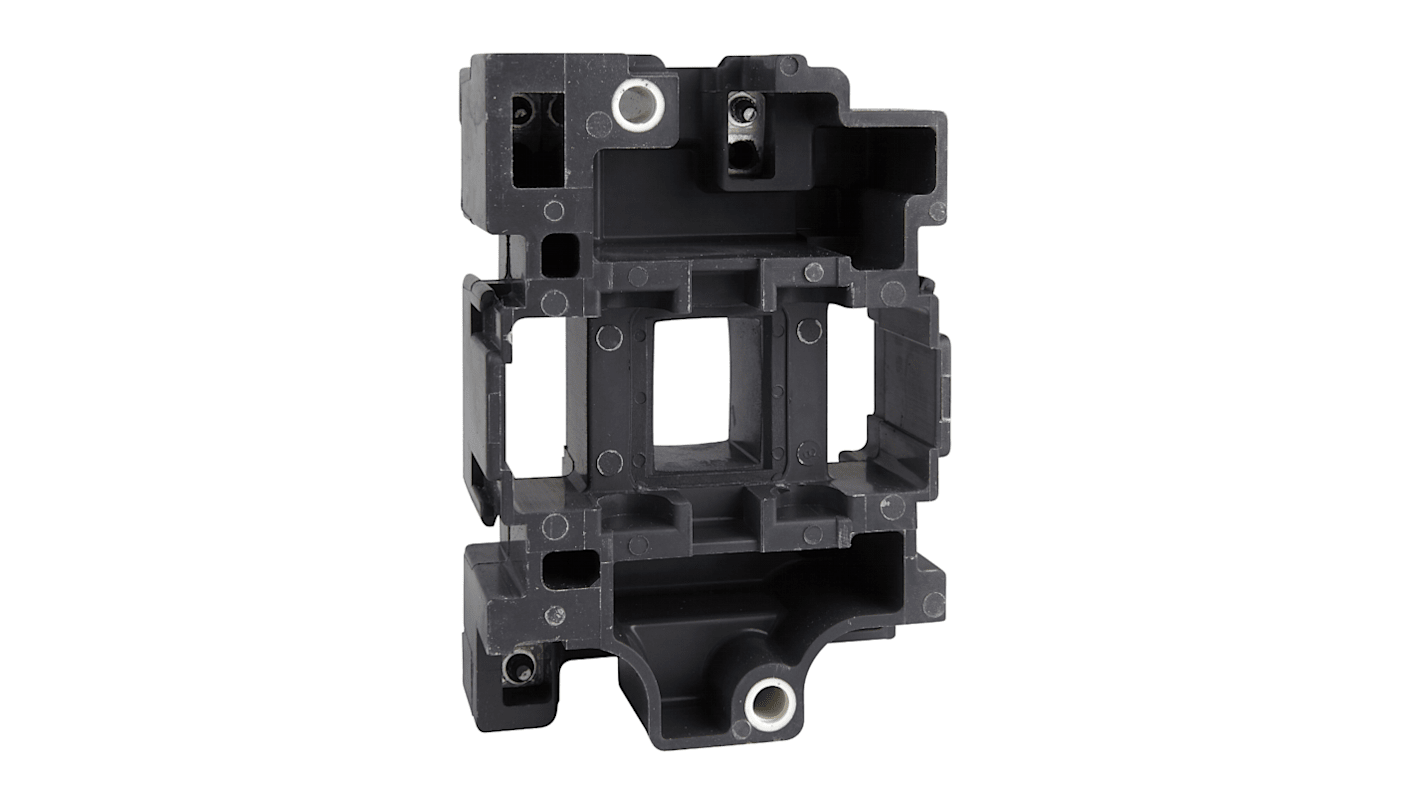

Schneider Electric Contactor Coil for use with LC1 Series

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CZ
Product Details

3 Pole Contactors, DC Controlled

Built-in coil suppression
3 N/O poles
Auxiliary contact configuration one N/O, one N/C
Operating time closing 12 to 22 ms
Operating time opening 4 to 19 ms

Note

Contactors suffixed BL accept front mount auxiliary contact blocks but only the 2 contact version, they do not accept side mounted contacts.

Approvals

UL and CSA

Specifications
Attribute Value
Accessory Type Coil
For Use With LC1 Series
Series LX1D
Voltage Rating 48 V
3 : Next working day (AU stock)
1 : 5 working days (Global stock)
Price (ex. GST) Each
$ 174.39
(exc. GST)
$ 191.83
(inc. GST)
units
Per unit
1 - 2
$174.39
3 - 4
$168.58
5 +
$163.32
