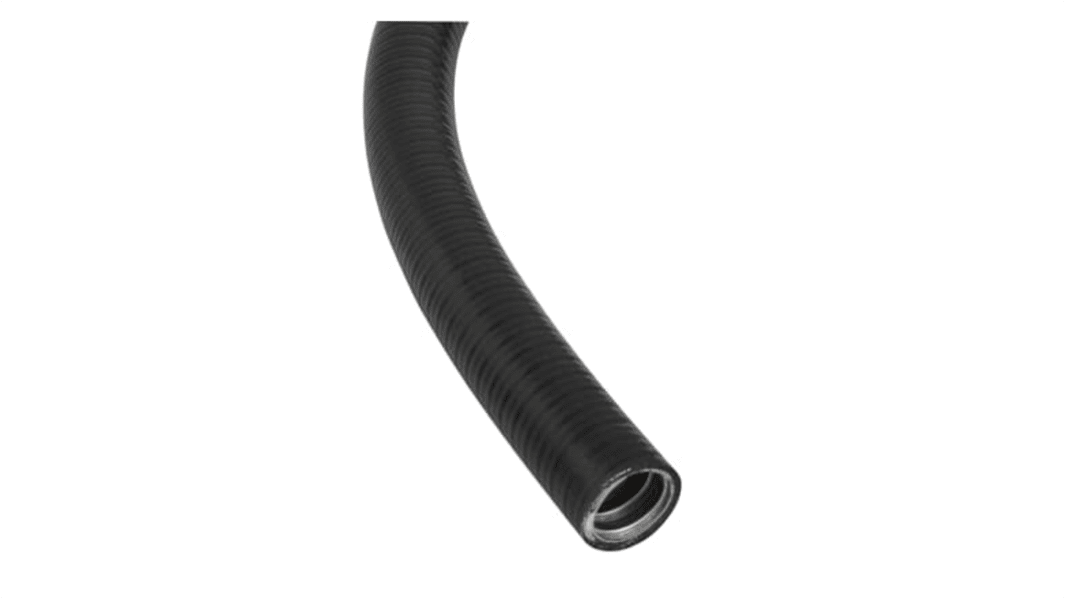

Adaptaflex Flexible Conduit, 25mm Nominal Diameter, Galvanised Steel, Black

RS Stock No.:: 829-0251
Mfr. Part No.:: 7TCA296130R0011 LFH-SP25/25M
Brand:: Adaptaflex

Adaptaflex Flexible Conduit, 25mm Nominal Diameter, Galvanised Steel, Black

10 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) 1 Reel of 25 Metre(s)

$1,086.16

(exc. GST)

$1,194.78

(inc. GST)

Reel(s)	Per Reel	Per Metre*
1 - 4	$1,086.16	$43.446
5 +	$1,044.68	$41.787
*price indicative

RS Stock No.:: 829-0251
Mfr. Part No.:: 7TCA296130R0011 LFH-SP25/25M
Brand:: Adaptaflex

Technical data sheets

Metallic Systems Data Sheet

Legislation and Compliance

Product Details

Standard & Low Fire Hazard Conduit

Two types of flexible liquid resistant conduits from Adaptaflex, the standard version is a helically wound galvanised steel strip with a black PVC cover whilst the LFH (Low Fire Hazard) type is Polyolefin covered which has halogen free, flame retardant & low toxicity properties which complement Fire Performance cables where public safety is of concern e.g. Hospitals, Shopping centres, Underground Railways etc.

IP54 or IP65 (dependant on Fitting)
-15°C to +70°C operating temperature, -25°C to +90°C (LFH type)
Non Flame propagating to EN50086
UV resistant
Compression strength 1500N/50mm
Halogen Free (LFH type only)
Low Smoke and Fume (LFH type only)

Note

The conduit is measured under tension and may be subject to variations in length when relaxed.

Specifications

Attribute	Value
Nominal Diameter	25mm
Material	Galvanised Steel
Conduit Type	Flexible
Outer Diameter	26mm
Colour	Black
Interior Diameter	21.4mm
Length	25m
IP Rating	B, C, E, IP54, IP65
Coating Material	Low Fire Hazard Polyolefin
Maximum Operating Temperature	+105 °C, +90°C
Series	LFH-SP
Minimum Operating Temperature	-25 °C, -5°C
Minimum Bend Radius	55 mm
Standards Met	IEC61386, Lloyd's Register of Shipping, London Underground, NF
