- RS Stock No.:
- 752-1664
- Mfr. Part No.:
- PIST-23B
- Brand:
- PMA
- RS Stock No.:
- 752-1664
- Mfr. Part No.:
- PIST-23B
- Brand:
- PMA
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

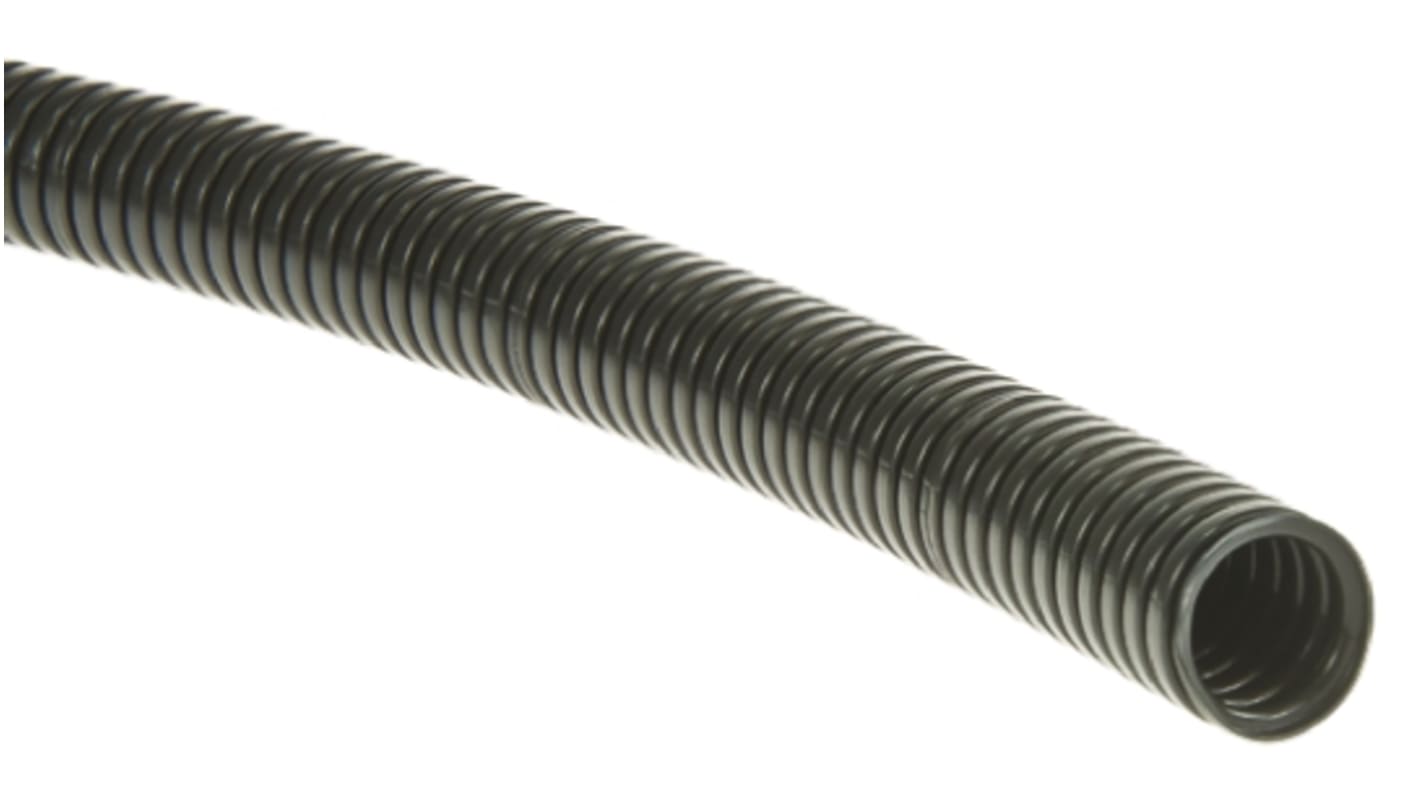

Medium Duty Flexible Conduit
Excellent flexibility
High-grade, specially formulated polyamide 12
Good mechanical strength at low temperatures and dry conditions
Excellent resistance to ultra violet rays and atmospheric corrosion
Self-extinguishing
NMPT-C
For dynamic applications in robotics and automation
Compatible with PMAFIX, PMAFIX Pro, PMA Smart Line, PMAGRIP
High-grade, specially formulated polyamide 12
Good mechanical strength at low temperatures and dry conditions
Excellent resistance to ultra violet rays and atmospheric corrosion
Self-extinguishing
NMPT-C
For dynamic applications in robotics and automation
Compatible with PMAFIX, PMAFIX Pro, PMA Smart Line, PMAGRIP
PMAFLEX Polyamide & Polyurethane (IP68/66)
Features for all conduit types:
IP68/66 (dependent upon Fittings)
Halogen & Cadmium free
None flame propagating
Resistant to: fuels, mineral oils, lubricants, alkalies and most common solvents
PCL: -40°C to +105°C operating temperature (+150°C short term), Impact strength >6J, flame class UL94 V2, CSA approved
PUE: -60°C to +50°C operating temperature, excellent reversed bending properties
VOH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >20J, UL rec
PAH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >18J
VAML/VAM: -40°C to 105°C operating temperature (+150°C short term)
PCS: -40°C to +105°C operating temperature (+150°C short term), Impact strength >7.5J, CSA approval, UL
Halogen & Cadmium free
None flame propagating
Resistant to: fuels, mineral oils, lubricants, alkalies and most common solvents
PCL: -40°C to +105°C operating temperature (+150°C short term), Impact strength >6J, flame class UL94 V2, CSA approved
PUE: -60°C to +50°C operating temperature, excellent reversed bending properties
VOH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >20J, UL rec
PAH: -40°C to 105°C operating temperature (+150°C short term), Impact strength >18J
VAML/VAM: -40°C to 105°C operating temperature (+150°C short term)
PCS: -40°C to +105°C operating temperature (+150°C short term), Impact strength >7.5J, CSA approval, UL
Specifications
Attribute | Value |
---|---|
Nominal Diameter | 25mm |
Material | Plastic |
Conduit Type | Flexible |
Outer Diameter | 28.4mm |
Colour | Black |
Interior Diameter | 22.6mm |
Length | 10m |
IP Rating | IP66, IP68 |
Thread Size | M25 |
Coating Material | Uncoated |
Maximum Operating Temperature | +95°C |
Series | PIS |
Minimum Bend Radius | 35 mm |
Minimum Operating Temperature | -50°C |
Standards Met | IEC EN 61386 |
