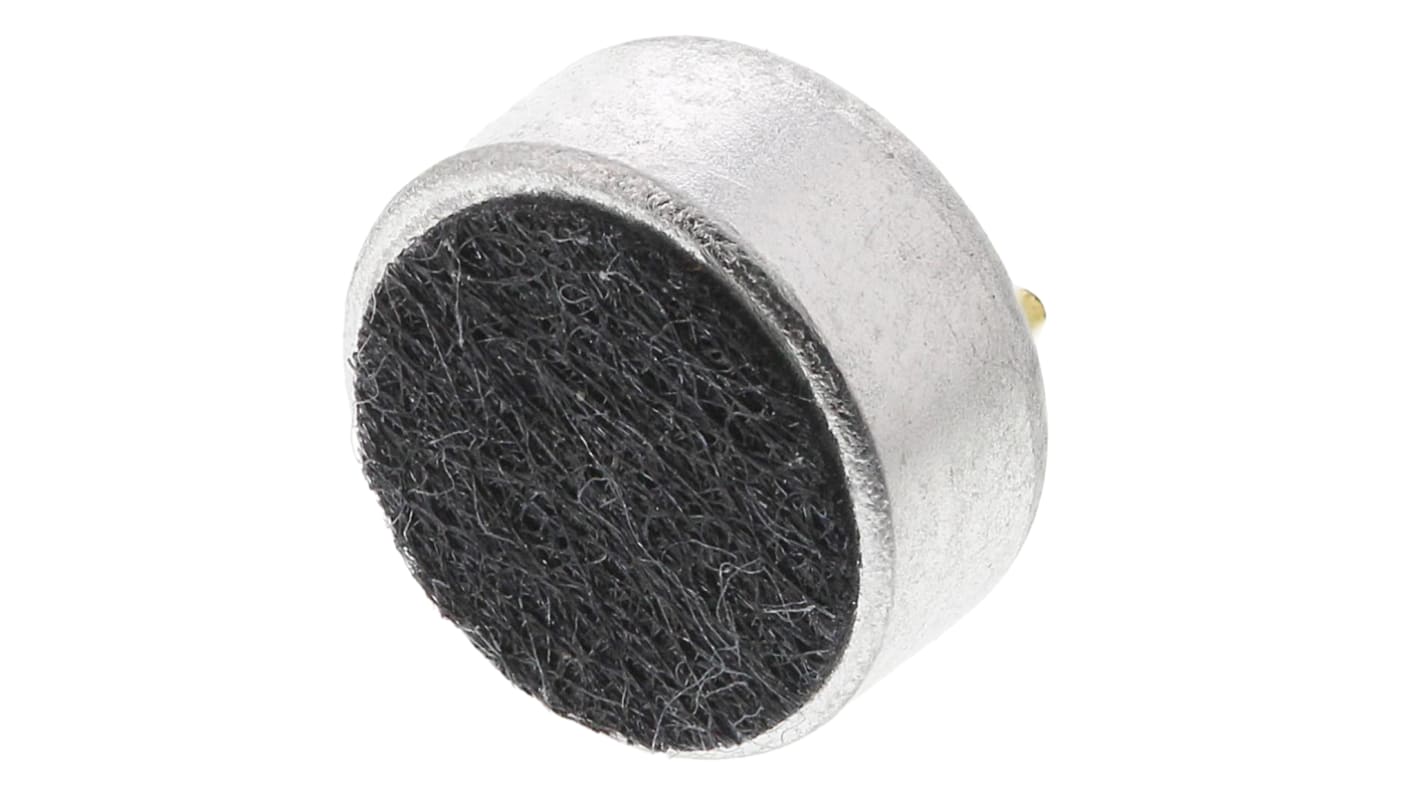

RS PRO Omni-Directional, Through Hole 6mm Microphone Condenser -38dB
- RS Stock No.:
- 771-7011
- Brand:
- RS PRO
555 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 5)
$4.072
(exc. GST)
$4.479
(inc. GST)
| Units | Per unit | Per Bag* |
| 5 - 45 | $4.072 | $20.36 |
| 50 - 245 | $3.952 | $19.76 |
| 250 - 495 | $3.826 | $19.13 |
| 500 - 2495 | $3.738 | $18.69 |
| 2500 + | $3.078 | $15.39 |
| *price indicative | ||
- RS Stock No.:
- 771-7011
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
Electret Microphone Inserts
Range of SMT and PCB mounting miniature electret condenser microphone inserts
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Sensitivity | -38dB |
| Directivity | Omni-Directional |
| Standard Operating Voltage | 2V dc |
| Mounting Type | Through Hole |
| Output Impedance | 2.2kΩ |
| Signal to Noise Ratio | 58dB(A) |
| Maximum Supply Current | 0.4mA |
| Dimensions | 6 x 2.7mm |
| Diameter | 6mm |
| Height | 2.7mm |
| Maximum Frequency | 20kHz |
| Maximum Operating Temperature | +70°C |
| Minimum Frequency | 20Hz |
| Minimum Operating Temperature | -20°C |
