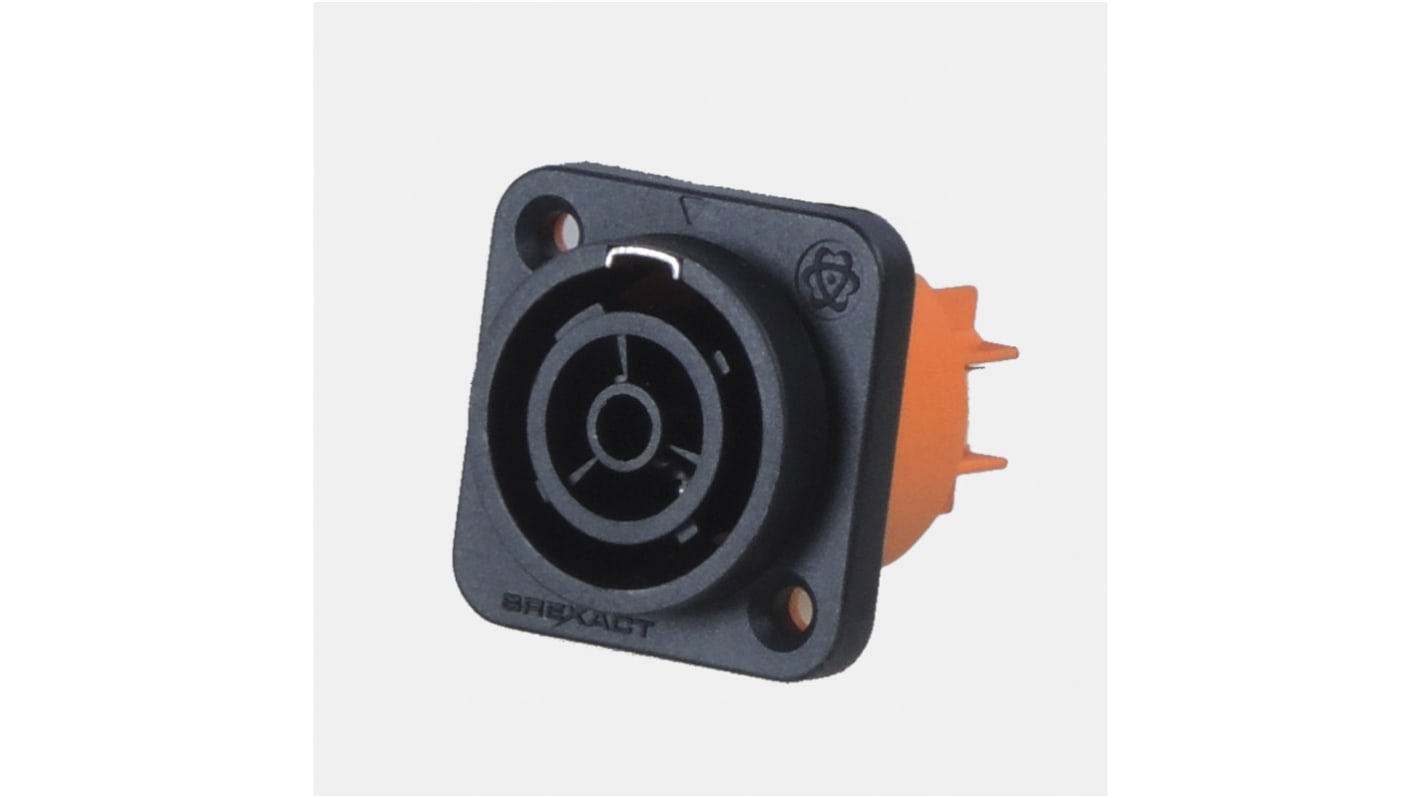

RS PRO Compact Power Connector Panel Mount Socket, 16A, 250 V dc, 500 V dc

  • RS Stock No. 176-3397
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

16A FEMALE PANEL MOUNT POWER CONNECTOR Setting hole: 24.4 x 24.4mm A connector with breaking capacity that can be connected or disconnected in a load or active state.

Specifications
Attribute Value
Plug/Socket Socket
Voltage Rating 250 V dc, 500 V dc
Gender Female
Mounting Type Panel Mount
Current Rating 16A
Contact Plating Silver
104 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 10.00
(exc. GST)
$ 11.00
(inc. GST)
units
Per unit
1 - 19
$10.00
20 - 49
$9.55
50 - 99
$8.98
100 - 199
$8.33
200 +
$7.80
