Telegartner, jack Panel Mount BNC Connector, 75Ω, Clamp, Crimp Termination, Straight Body

RS Stock No.:: 777-0611
Mfr. Part No.:: J01003A0001
Brand:: Telegartner

Telegartner, jack Panel Mount BNC Connector, 75Ω, Clamp, Crimp Termination, Straight Body

7 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$20.85

(exc. GST)

$22.93

(inc. GST)

Units	Per unit
1 - 24	$20.85
25 - 99	$20.48
100 - 249	$19.82
250 - 499	$19.27
500 +	$18.82

RS Stock No.:: 777-0611
Mfr. Part No.:: J01003A0001
Brand:: Telegartner

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

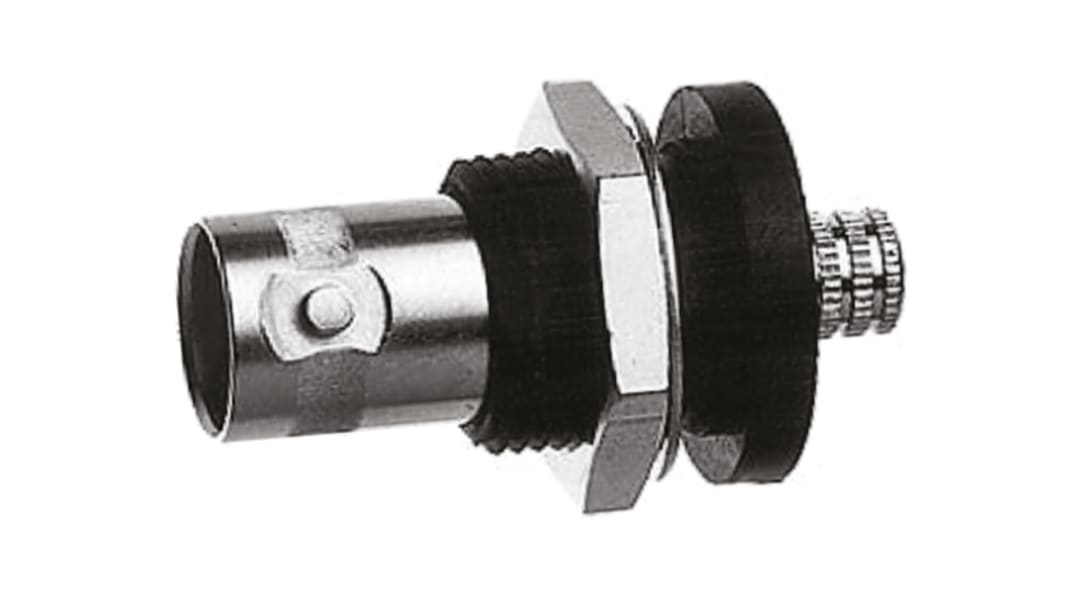

Telegartner BNC Bulkhead Jack Crimp RF Coaxial Connector, 75 Ohm

BNC bulkhead jack crimp RF coaxial connectors with a 75Ω impedance which can be used up to 4 GHz. These BNC straight plug RF coaxial connectors have crimp terminations, a nickel plated brass finish, a bayonet coupling mechanism and an IP54 rated sealing when mated with jacks, in addition, stock number 777-0611 has an insulating flange.
These BNC bulkhead jack crimp RF coaxial connectors are for use with RG 59B/U cable

Standards

IEC 61 169-8

Telegärtner BNC RF Connectors

Specifications

Attribute	Value
Coaxial Connector Type	BNC Connector
Gender	Female
Mounting Type	Panel Mount
Impedance	75Ω
Termination Method	Clamp, Crimp
Body Orientation	Straight
Cable Type	RG59 B/U
Size	Standard
Bulkhead	Yes
Operating Frequency	4GHz
Body Plating	Nickel
Polarity	Normal
Contact Material	Beryllium Copper, Copper Nickel Lead Alloy, Copper Zinc Lead Alloy
Contact Plating	Copper Nickel Gold Alloy, Nickel over Copper
