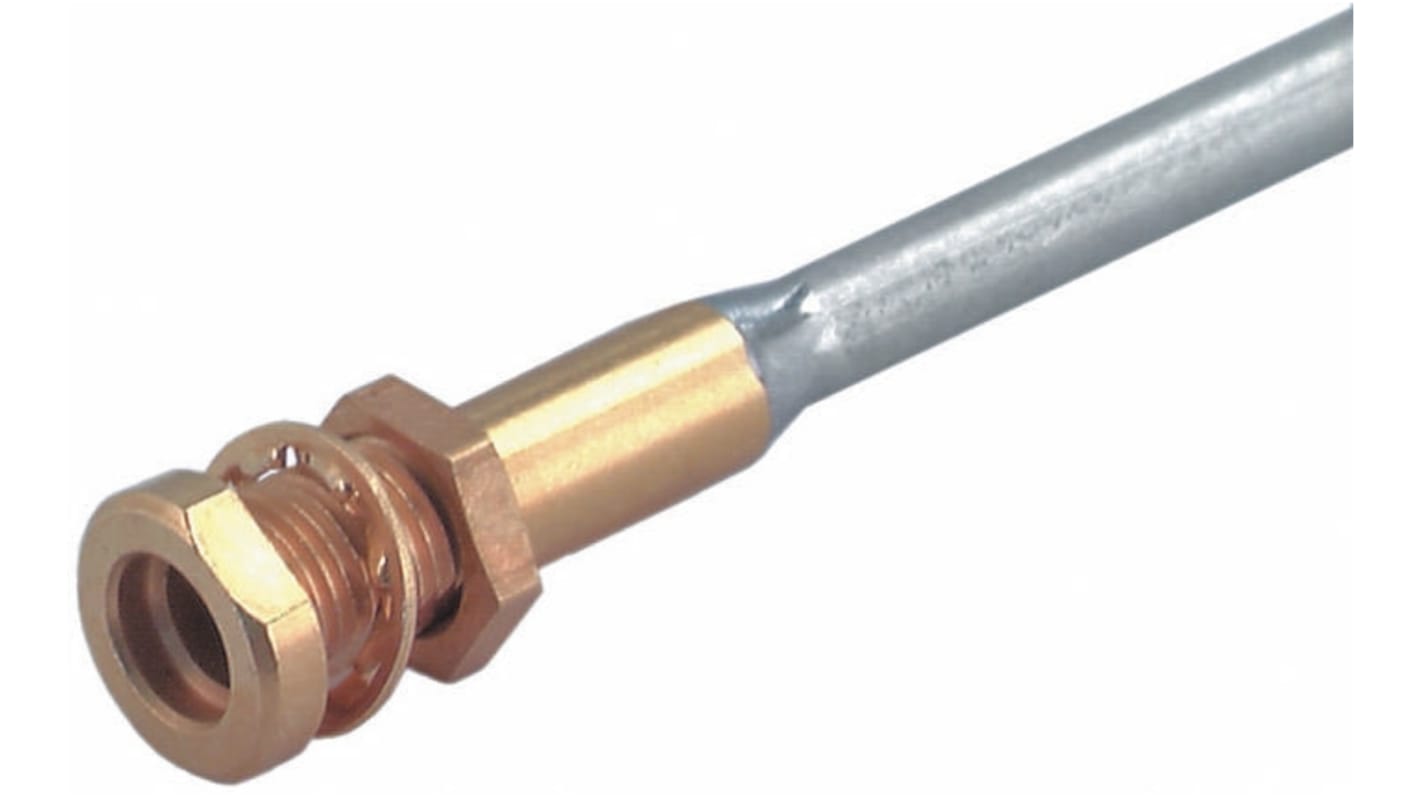

Huber & Suhner 50Ω Straight Panel Mount MMCX Connector, jack, Crimp Termination, 0 → 6GHz, RG174 B/U, RG196 A/U

  • RS Stock No. 612-7460
  • Mfr. Part No. 24_MMCX-50-1-1/111_OE
  • Manufacturer Huber & Suhner
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Straight Panel Bulkhead Jack

HUBER+SUHNER MMCX

HUBER+SUHMNER MMCX connectors are designed to be used where the smallest possible dimensions have to be achieved. The reliable 'snap-on' coupling mechanism ensures the electrical parameters are consistently reproduced. The SMT connectors are suitable to all reflow-soldered SMT PCBs where impedance matching or screened signal transmission is necessary.

For applications from DC to 6GHz
Low RF leakage

Specifications
Attribute Value
Gender Female
Mounting Type Panel Mount
Impedance 50Ω
Termination Method Crimp
Body Orientation Straight
Cable Type RG174 B/U, RG196 A/U
Operating Frequency 0 → 6GHz
Minimum Operating Temperature -55°C
Body Plating Gold
Maximum Operating Temperature 155°C
Contact Material Beryllium Copper
Contact Plating Gold over Nickel
14 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 18.89
(exc. GST)
$ 20.78
(inc. GST)
units
Per unit
1 - 14
$18.89
15 - 49
$18.23
50 - 99
$16.62
100 - 249
$15.40
250 +
$14.60
