- RS Stock No.:
- 295-7784
- Mfr. Part No.:
- R141306000W
- Brand:
- Radiall
4 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$17.87
(exc. GST)
$19.66
(inc. GST)
Units | Per unit |
1 - 24 | $17.87 |
25 - 49 | $17.72 |
50 - 99 | $17.19 |
100 - 249 | $16.60 |
250 + | $16.19 |
- RS Stock No.:
- 295-7784
- Mfr. Part No.:
- R141306000W
- Brand:
- Radiall
Technical data sheets
Legislation and Compliance
Product Details

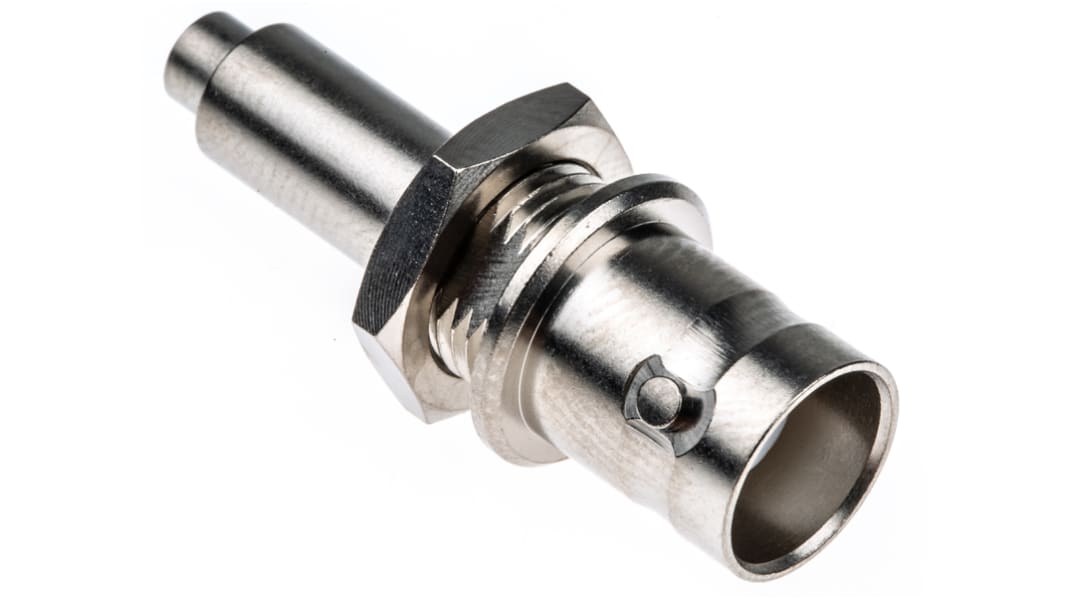

Standard Bulkhead Socket
Impedance 50Ω
Approvals
7777
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
Specifications
Attribute | Value |
---|---|
Coaxial Connector Type | BNC Connector |
Gender | Female |
Mounting Type | Panel Mount |
Impedance | 50Ω |
Termination Method | Crimp |
Body Orientation | Straight |
Cable Type | RG188, RG316 |
Bulkhead | Yes |
Operating Frequency | 0 to 4GHz |
Body Plating | Nickel |
Minimum Operating Temperature | -65°C |
Maximum Operating Temperature | +165°C |
Contact Material | Beryllium Copper |
Contact Plating | Gold |
