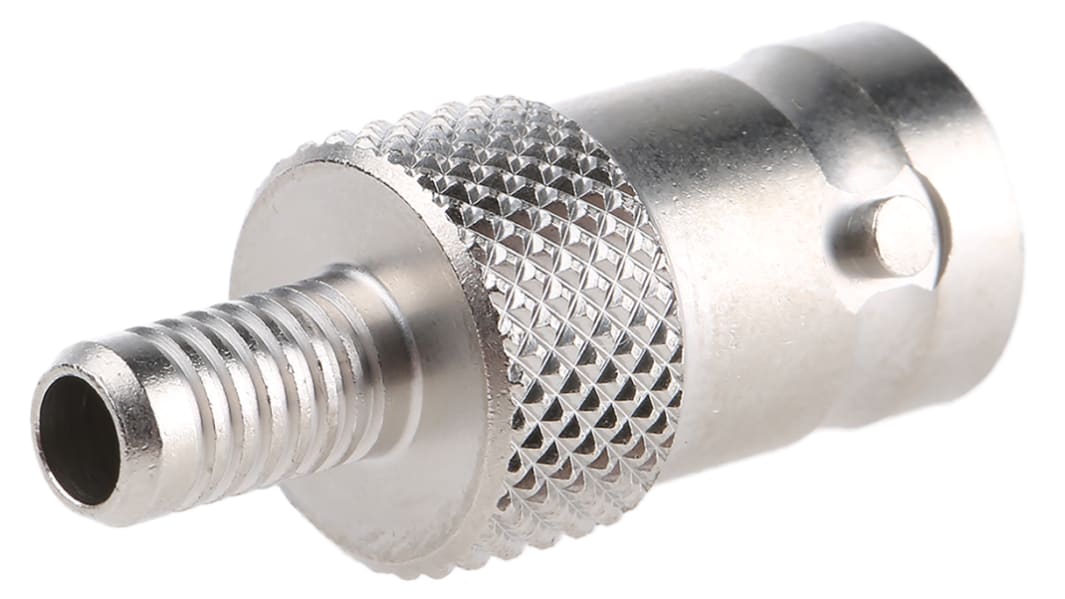

Radiall, jack Cable Mount BNC Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 295-7762
- Mfr. Part No.:
- R141237000W
- Brand:
- Radiall
3 In Global stock for delivery within 5 working day(s)
342 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$21.04
(exc. GST)
$23.14
(inc. GST)
| Units | Per unit |
| 1 + | $21.04 |
- RS Stock No.:
- 295-7762
- Mfr. Part No.:
- R141237000W
- Brand:
- Radiall
Technical data sheets
Legislation and Compliance
Product Details
Straight crimp jack
Approvals
7777
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Female |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | RG141, RG58 |
| Bulkhead | No |
| Operating Frequency | 0 to 4GHz |
| Minimum Operating Temperature | -65°C |
| Body Plating | Nickel |
| Maximum Operating Temperature | +165°C |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
