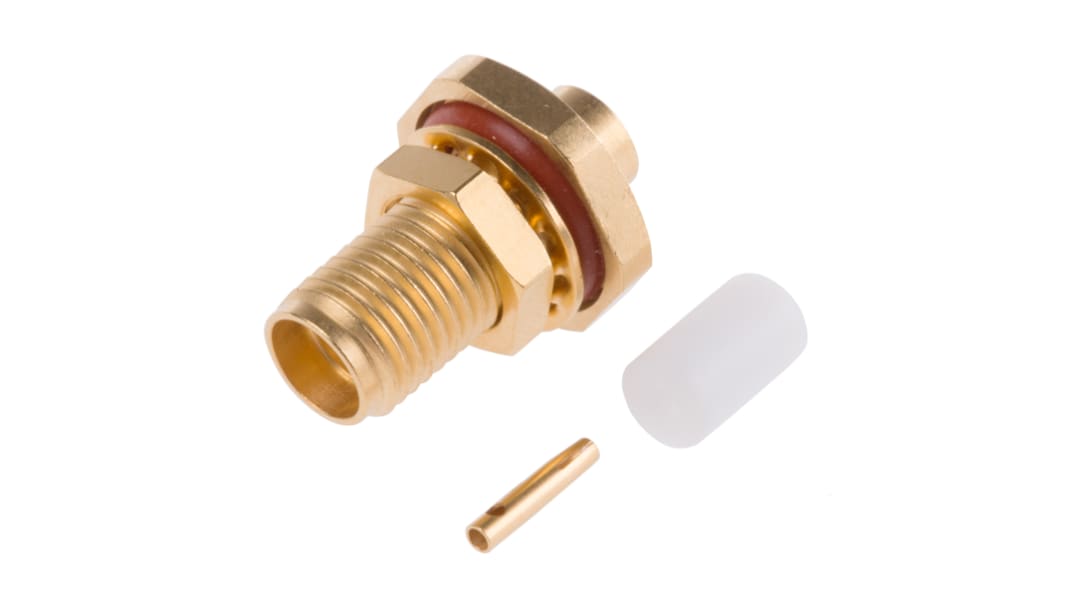

Radiall Straight 50Ω Panel Mount Bulkhead Fitting SMA Bulkhead, Solder Termination RG402

  • RS Stock No. 295-5889
  • Mfr. Part No. R125325000W
  • Manufacturer Radiall
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Straight Jack Solder

Approvals

N/A

Radiall SMA Gold Plated Stainless Steel

SMA connectors to MIL-C-39012 and BS 9210 N006 standards for high performance RF applications. Connectors have gold plated stainless steel bodies in a variety of popular semi-rigid and flexible cable applications.

Specifications
Attribute Value
Gender Female
Mounting Type Panel Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Straight
Cable Type RG402
Bulkhead Yes
Operating Frequency 0 → 18GHz
Minimum Operating Temperature -65°C
Body Plating Gold
Maximum Operating Temperature 105°C
Contact Material Beryllium Copper
Contact Plating Gold over Nickel
95 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 42.69
(exc. GST)
$ 46.96
(inc. GST)
units
Per unit
1 - 14
$42.69
15 - 49
$41.95
50 - 99
$40.08
100 - 249
$38.62
250 +
$37.58
