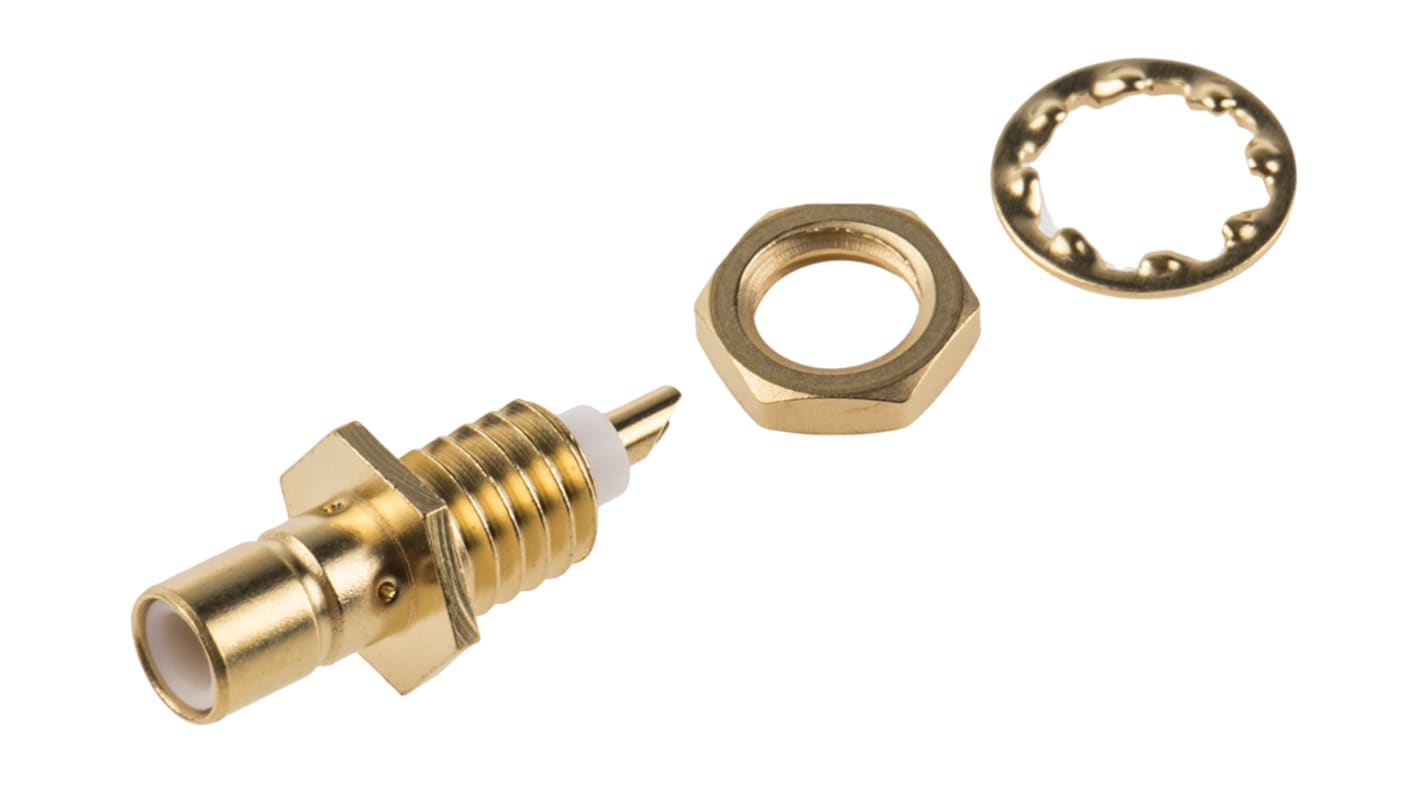

Radiall 50Ω Straight Panel Mount SMB Connector, jack

  • RS Stock No. 295-5687
  • Mfr. Part No. R114553000W
  • Manufacturer Radiall
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Straight Bulkhead Socket - Front Mount

Note

Jack has male contact.

//media.rs-online.com/t_line/LD295568-01.gif
//media.rs-online.com/t_line/LD295568-02.gif

Approvals

MIL-C-309012

Radiall - SMB Gold Plated

Sub-miniature connectors to MIL-C-39012 with snap-on coupling for a reliable and quick/disconnect system. Both clamp and crimp termination versions available.

Clamp types have options for RG174 and RG178 cable types
Crimp types accept various cable types
Recommended crimp tool stock no. 456-778

Specifications
Attribute Value
Coaxial Connector Type SMB Connector
Gender Female
Mounting Type Panel Mount
Impedance 50Ω
Termination Method Solder
Body Orientation Straight
Operating Frequency 0 to 4GHz
Minimum Operating Temperature -65°C
Body Plating Gold
Maximum Operating Temperature +165°C
Contact Material Brass
Contact Plating Gold over Nickel
2048 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
$ 19.38
(exc. GST)
$ 21.32
(inc. GST)
units
Per unit
1 - 14
$19.38
15 - 49
$18.47
50 - 99
$17.78
100 - 249
$17.57
250 +
$17.22
