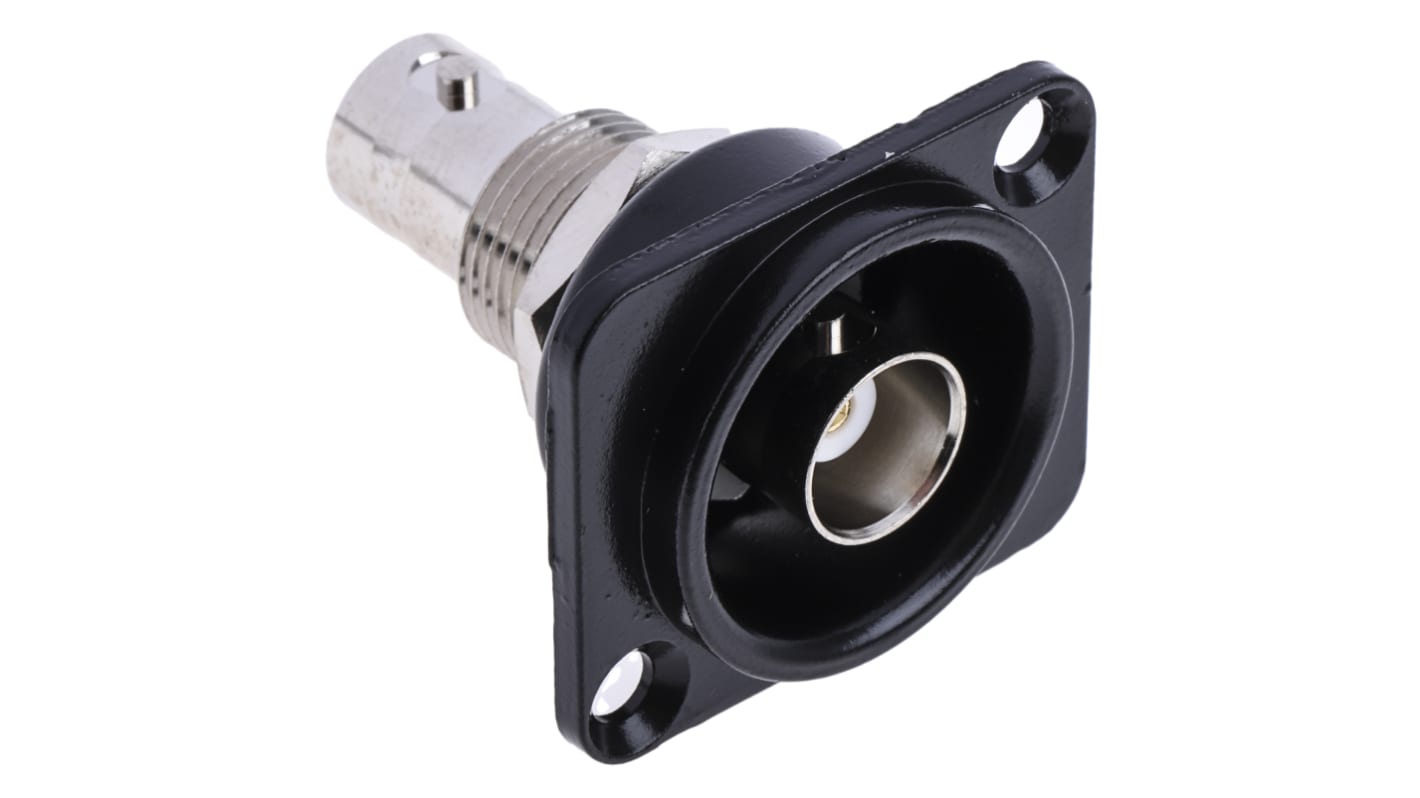

RS PRO 50Ω Straight Panel Mount BNC Connector, jack

  • RS Stock No. 143-8920
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS Pro XLR BNC Adapter

Brought to you by RS Pro, This XLR BNC adapter is a great option for developing custom I/O configurations for wall plates and rack panels. Fitting within a regular XLR panel cut out and the ease of no soldering or punch termination, makes this BNC to BNC receptacle a perfect choice for your application. All models are highly reliable and excellent quality.

Features & Benefits

Countersunk holes Front or Back mount

Specifications
Attribute Value
Coaxial Connector Type BNC Connector
Gender Female
Mounting Type Panel Mount
Impedance 50Ω
Body Orientation Straight
Size Standard
17 : Next working day (AU stock)
31 : 7 working days (Global stock)
Price (ex. GST) Each
$ 16.87
(exc. GST)
$ 18.56
(inc. GST)
units
Per unit
1 - 9
$16.87
10 - 24
$16.03
25 - 49
$15.17
50 - 99
$14.34
100 +
$13.50
