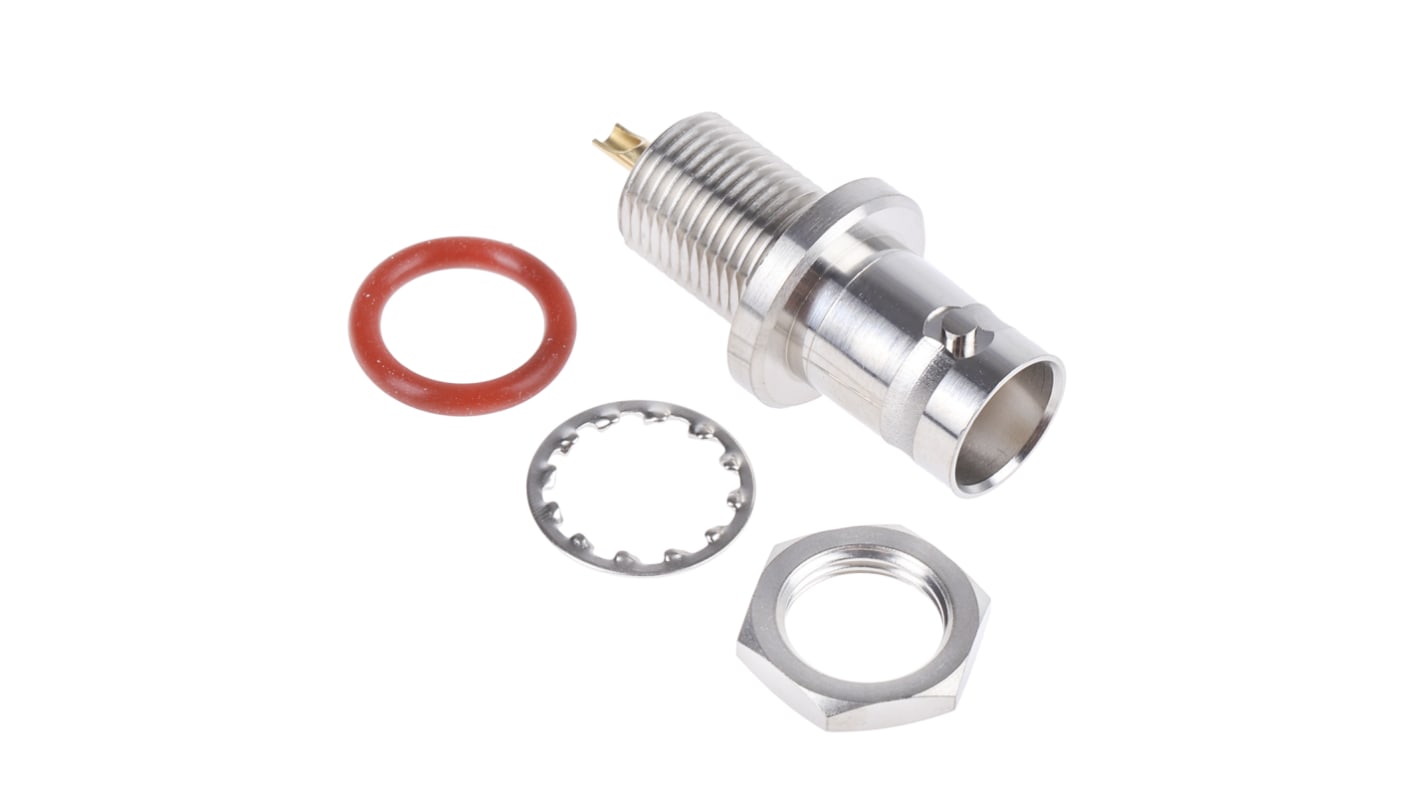

Radiall, jack Panel Mount BNC Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 546-672
- Mfr. Part No.:
- R141605000W
- Brand:
- Radiall
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each
$25.54
(exc. GST)
$28.09
(inc. GST)
| Units | Per unit |
| 1 - 14 | $25.54 |
| 15 - 49 | $25.36 |
| 50 + | $24.79 |
- RS Stock No.:
- 546-672
- Mfr. Part No.:
- R141605000W
- Brand:
- Radiall
Technical data sheets
Legislation and Compliance
Product Details
Bulkhead socket (PTFE sealed)
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
Specifications
Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Female |
| Mounting Type | Panel Mount |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Bulkhead | Yes |
| Operating Frequency | 0 to 4GHz |
| Body Plating | Nickel |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +165°C |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold over Nickel |
