- RS Stock No.:
- 906-0638
- Brand:
- RS PRO
- RS Stock No.:
- 906-0638
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

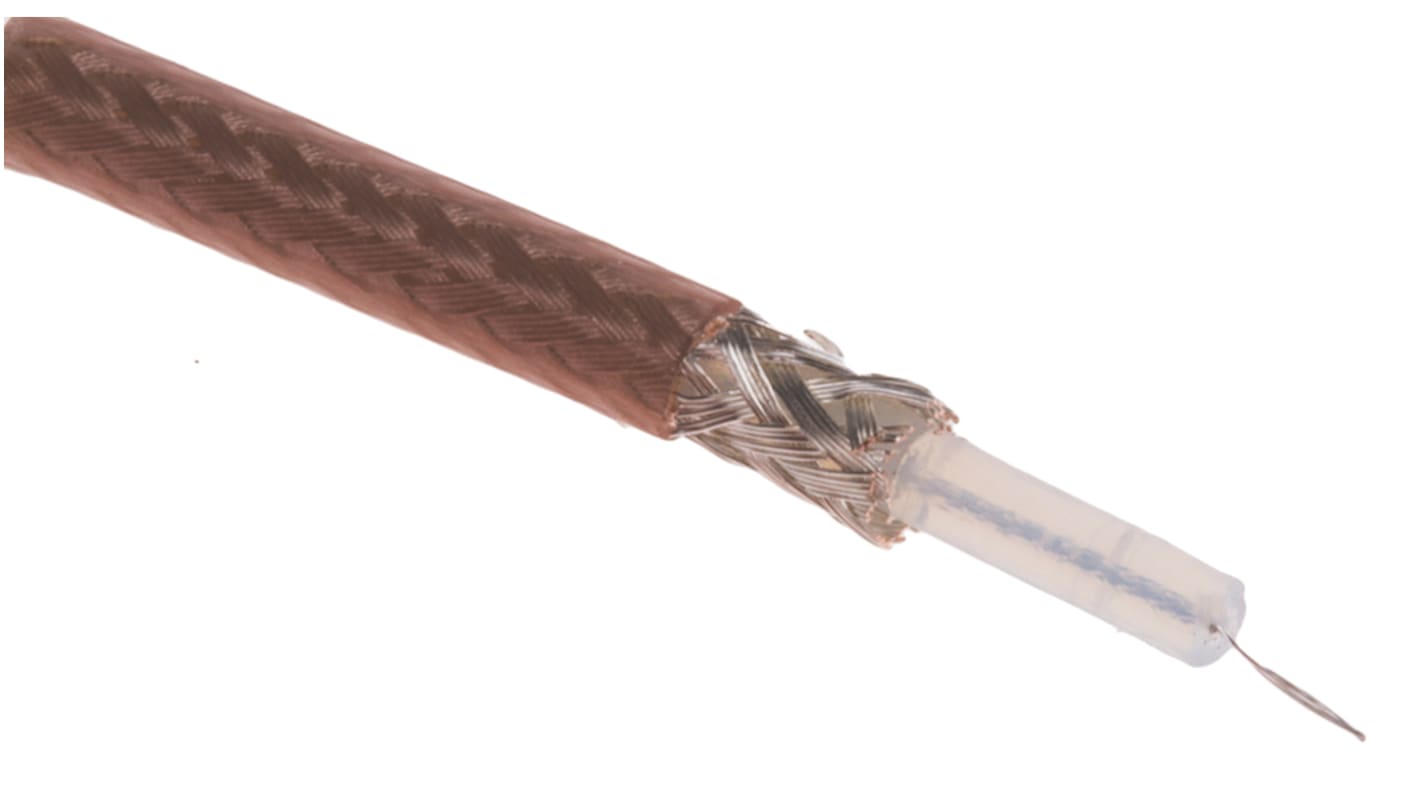

RG179 B/U FEP
RG179 coaxial cable
Features and benefits
Applications
Applications include: Commercial Electronics and radio frequency engineering
Applications include: Commercial Electronics and radio frequency engineering
Applications
Coaxial cables are commonly used by electricians and IT personnel, these particular coaxial type cables have a range of application use such as commercial Electronics and radio frequency engineering
What is Impedance?
Impedance is an electric currents opposition being measured when the voltage has been applied.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
Standards
MIL-C-17F, MIL-C-17G
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Unterminated |
Coaxial Type | RG179B/U |
Outer Diameter | 2.5mm |
CPR Certification | Fca |
Characteristic Impedance | 75 Ω |
Attenuation | 91.25 dB @ 1GHz |
Length | 25m |
Sheath Colour | Brown |
Conductor Strand Type | Stranded |
Number of Strands | 7 |
Operating Temperature Range | -70 → +200 °C |
Maximum Operating Temperature | +200°C |
Size of Strands | 0.1 mm |
Conductor Material | Silver Plated Copper Clad Steel |
Capacitance | 63.65pF/m |
Core Strands | 7/0.1 |
Shielding | Silver Plated Copper Braid |
Sheath Material | FEP |
Standards Met | Euroclass Eca |
Minimum Operating Temperature | -70°C |
Velocity ratio | 70% |
Insulation Material | PTFE |
