RS PRO Coaxial Cable, 25m, RG142 Coaxial, Unterminated
- RS Stock No.:
- 906-0604
- Brand:
- RS PRO
57 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Reel of 25 Metre(s)
$324.58
(exc. GST)
$357.04
(inc. GST)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | $324.58 | $12.983 |
| 5 + | $267.13 | $10.685 |
| *price indicative | ||
- RS Stock No.:
- 906-0604
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

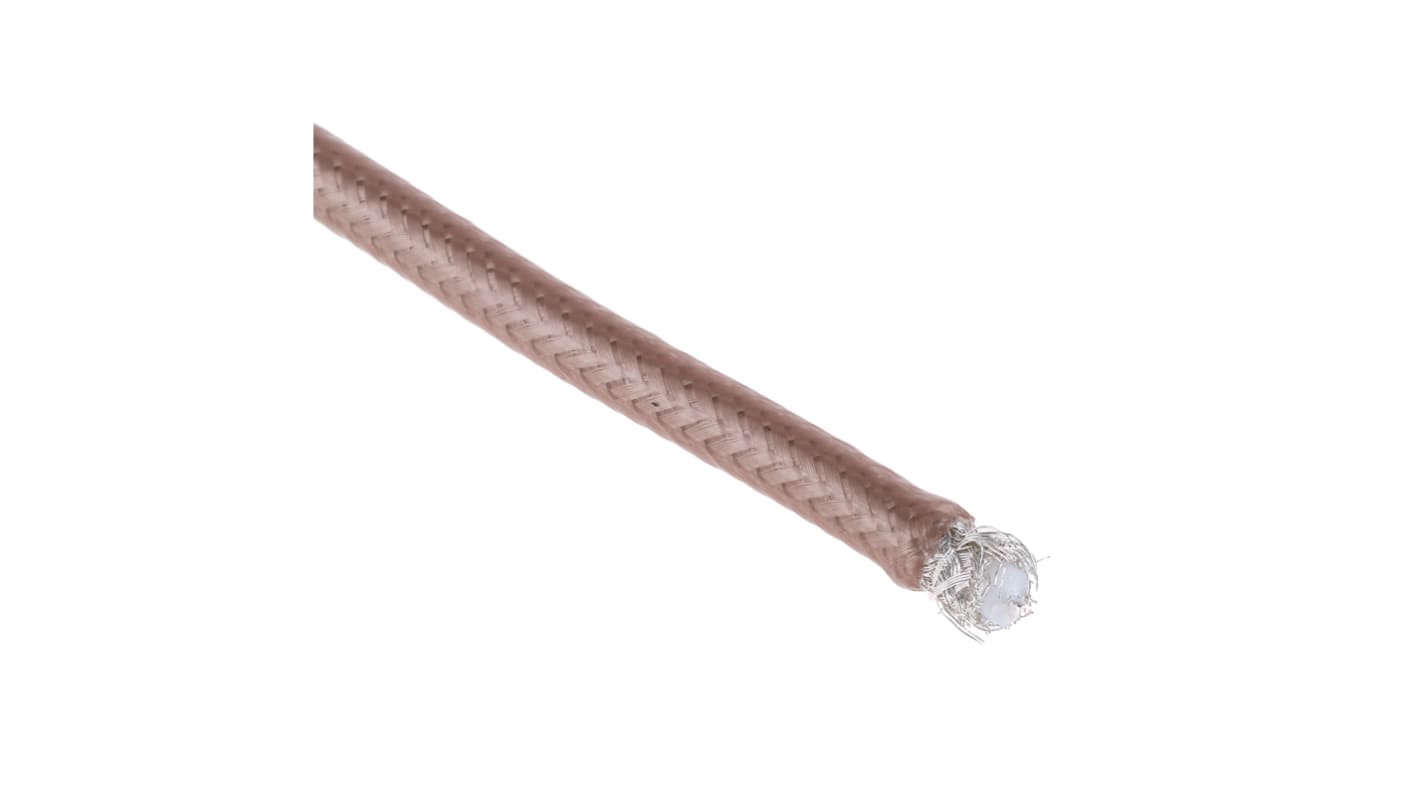

RG142 FEP Coaxial Cable
A coaxial cable with FEP jacket.
Applications
· Applications include: commercial electronics and radio frequency engineering
· Applications include: commercial electronics and radio frequency engineering
Standards
MIL-C-17F, MIL-C-17G
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG142 |
| Outer Diameter | 4.95mm |
| CPR Certification | Fca |
| Characteristic Impedance | 50 Ω |
| Attenuation | 63.3dB @ 2000MHz |
| Length | 25m |
| Sheath Colour | Brown |
| Conductor Strand Type | Stranded |
| Maximum Operating Temperature | +200°C |
| Capacitance | 95.1pF/m |
| Conductor Material | Silver Plated Copper Clad Steel |
| Size of Strands | 18 AWG |
| Core Strands | 1/18 |
| Number of Strands | 1 |
| Standards Met | Euroclass Eca |
| Insulation Material | PTFE |
| Shielding | Silver Plated Copper Braid |
| Sheath Material | FEP |
| Minimum Operating Temperature | -55°C |
| Velocity ratio | 70% |
| Operating Temperature Range | -55 → +200 °C |
