- RS Stock No.:
- 760-0430
- Mfr. Part No.:
- 308-0341-0500A
- Brand:
- Atem
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each
$67.68
(exc. GST)
$74.45
(inc. GST)
Units | Per unit |
1 - 14 | $67.68 |
15 - 49 | $66.50 |
50 - 99 | $63.62 |
100 - 249 | $62.27 |
250 + | $60.92 |
- RS Stock No.:
- 760-0430
- Mfr. Part No.:
- 308-0341-0500A
- Brand:
- Atem
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

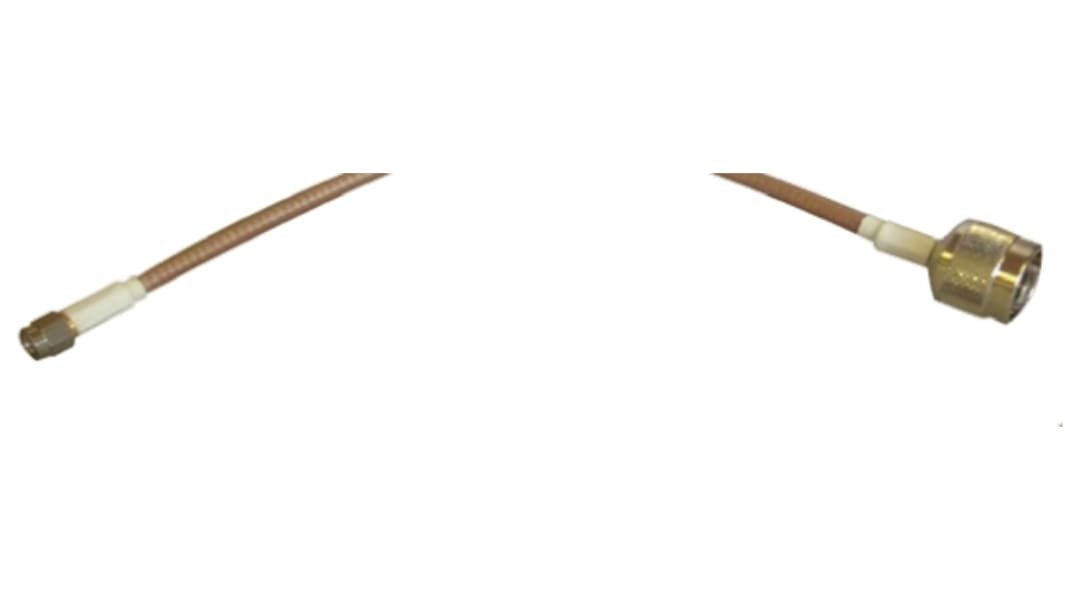

Atem SMA to SMA and N Type RF Connector Patch Leads
Atem SMA RF connector leads, terminating to SMA and N type variant RF connectors, in lengths 500mm and 1000mm. Ideal for all manner of uses that require a SMA patch lead, these Atem SMA RF connector leads are also offered in RG142 and RG223 cable types to suit many applications.
Operating Frequency DC to 8Ghz (RG142), DC to 4Ghz (RG223)
Specifications
Attribute | Value |
---|---|
Connector 1 | SMA |
Terminated/Unterminated | Terminated |
Connector 2 | N Type |
Coaxial Type | RG142B |
Connector 1 Gender | Male |
Connector 2 Gender | Male |
Characteristic Impedance | 50 Ω |
Length | 500mm |
Conductor Strand Type | Solid |
Operating Temperature Range | -55 → +150 °C |
Conductor Material | CuAg |
Minimum Operating Temperature | -55°C |
Insulation Material | PTFE |
Size of Strands | 0.94 mm |
Maximum Operating Temperature | +150°C |
