- RS Stock No.:
- 546-2879
- Brand:
- RS PRO
- RS Stock No.:
- 546-2879
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

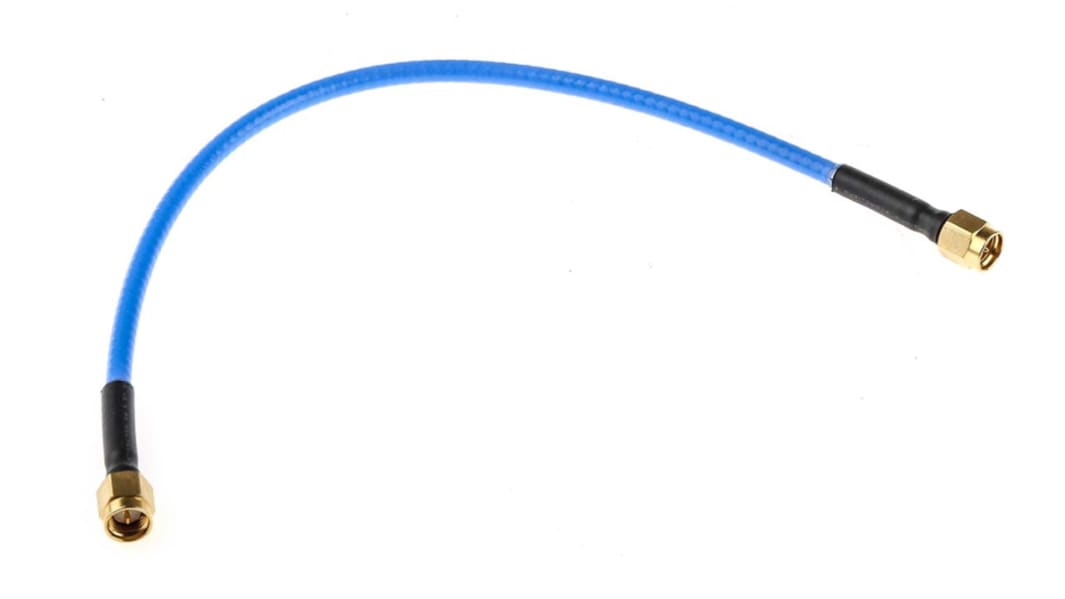

RF Coaxial 50 Ohm SMA 26GHz Cable Assembly, Test Lead
RF coaxial 50 ohm SMA 26 GHz 250mm cable assembly, test lead. This RF coaxial 50 ohm SMA 26 GHz cable assembly is terminated each end by brass RG-402 SMA connector plugs.
Features and benefits
250mm high performance cable assembly
SMA connector plugs
2.6mm diameter flexible cable to 26GHz
SMA connector plugs
2.6mm diameter flexible cable to 26GHz
Applications
Coaxial cables are primarily used by electricians and IT personnel and have a range of application use such as;
- Connecting radio transmitters and receivers with their antennas
- Computer network (Internet) connections
- Feeding satellite signals through to your TV.
What is Impedance?
Impedance is an electric currents opposition being measured when the voltage has been applied.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Terminated |
Connector 1 | SMA |
Coaxial Type | RG402 |
Connector 2 | SMA |
Connector 1 Gender | Male |
Connector 2 Gender | Male |
Characteristic Impedance | 50 Ω |
Length | 250mm |
Sheath Colour | Black |
Voltage Rating | 500 V |
Minimum Operating Temperature | -40°C |
Standards Met | MIL-STD-348A |
Conductor Material | Brass |
Insulation Material | PTFE |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85 °C |
