TE Connectivity Male BNC to Female BNC Coaxial Cable, 1m, RG58 Coaxial, Terminated

RS Stock No.:: 409-7187
Mfr. Part No.:: 1337774-3
Brand:: TE Connectivity

TE Connectivity Male BNC to Female BNC Coaxial Cable, 1m, RG58 Coaxial, Terminated

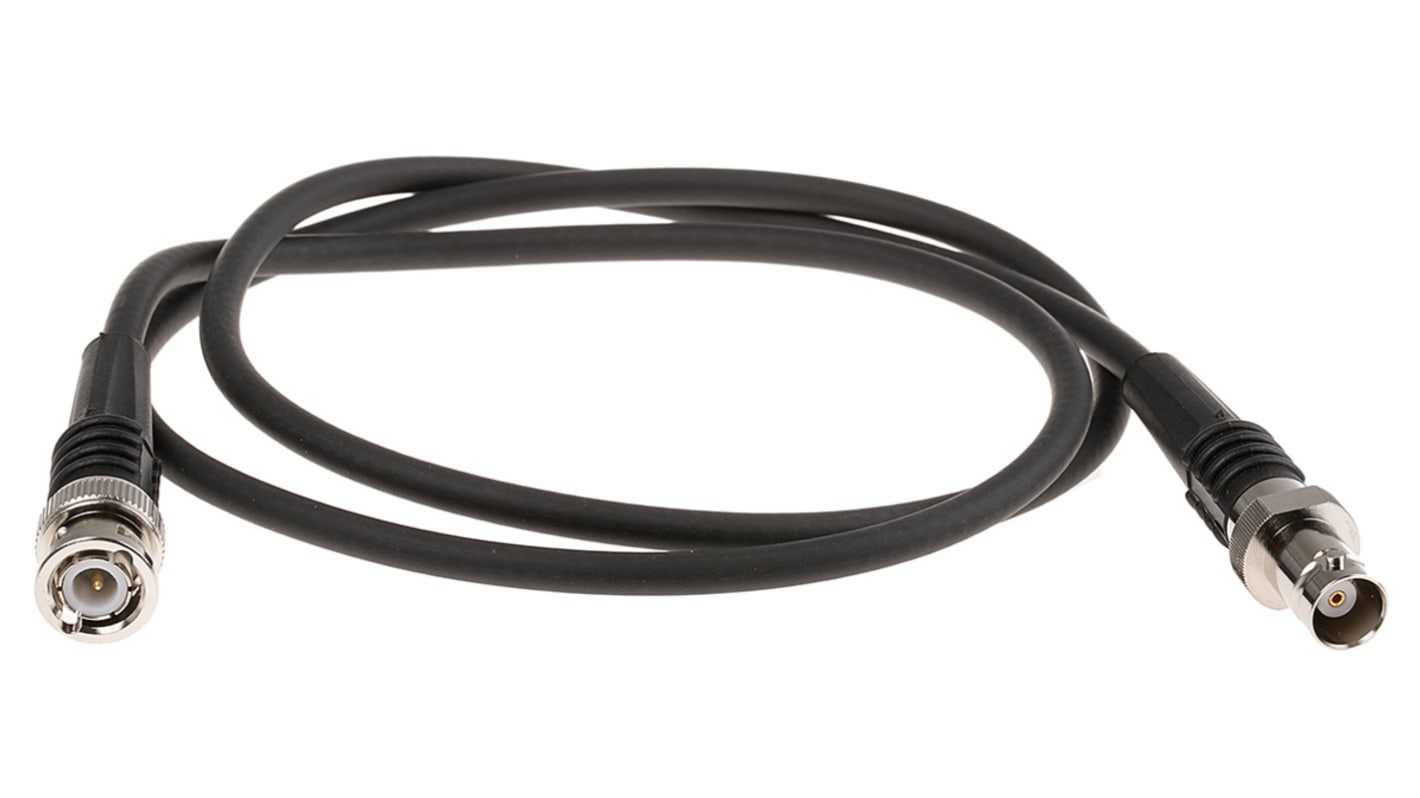

This image is representative of the product range

Stocked by manufacturer – available for delivery 23/07/2024

Added

Price (ex. GST) Each

$31.98

(exc. GST)

$35.18

(inc. GST)

Units	Per unit
1 - 12	$31.98
13 - 24	$31.45
25 +	$30.87

RS Stock No.:: 409-7187
Mfr. Part No.:: 1337774-3
Brand:: TE Connectivity

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: MA

Product Details

TE Connectivity 50 Ohm BNC RF Coaxial Cable Assembly - BNC Straight Plug to BNC Jack

These Coaxial Cables are commonly used for Internal wiring of mainframes, communication instruments, and electronic devices as well as Connection of test head and interface of IC test system.

What is a Coaxial Cable?

A coaxial cable is a specific type of cable that is made up from copper combined with other metal shield materials and components to block signal interference. They include one physical channel to carry the surrounding signal, usually accompanied with a layer of insulation.

Features and Benefits

• A coaxial communication cable, great for communicating
• 50 Ohm BNC RF coaxial BNC straight plug to BNC jack cable assemblies for use with RG-58 coaxial cable
• These 50 Ohm BNC RF coaxial BNC straight plug to BNC jack cable assemblies have a nickel plated body, gold plated centre contact
• Cable assemblies in various length and connector termination
• Connectors with PTFE insulators and silicone rubber gaskets
• Patchcord assemblies for wireless and general instrumentation applications
• Patchcord assemblies for wireless and general instrumentation applications
• Patchcord assemblies for wireless and general instrumentation applications

Typical Applications

• Transmitting signals for televisions and areal connections
• Transmitting signals of CCTV images
• Transmitting signals for broadband
• Connect satellite antenna facilities to homes and businesses
• Interconnecting telecoms industry equipment and data
• Facilitating the transmission of radio frequency signals
• Great to use for industrial purposes as well as portable devices

How do Coaxial Cables work?

Coaxial cables work through having concentric layers of electrical conductors and insulating material. The way that they are constructed is what ensures that a signal is enclosed within the cable and prevents any electrical noise from interfering with the signal.

TE Connectivity 1337774-3 Coaxial Cable

This coaxial cable by TE Connectivity has a length of 1m and the coaxial type is an RG58. Connector A is Male BNC and Connector B is Female BNC.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

TE Connectivity

Connectors with PTFE insulators and silicone rubber gaskets.

Cable assemblies in various length and connector termination

Specifications

Attribute	Value
Terminated/Unterminated	Terminated
Connector 1	BNC
Connector 2	BNC
Coaxial Type	RG58
Connector 1 Gender	Male
Connector 2 Gender	Female
Characteristic Impedance	50 Ω
Length	1m
