- RS Stock No.:
- 235-5447
- Mfr. Part No.:
- CLFH-316
- Brand:
- TE Connectivity
33 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Reel of 100 Metre(s)
$904.99
(exc. GST)
$995.49
(inc. GST)
Reel(s) | Per Reel | Per Metre* |
1 + | $904.99 | $9.05 |
*price indicative |
- RS Stock No.:
- 235-5447
- Mfr. Part No.:
- CLFH-316
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

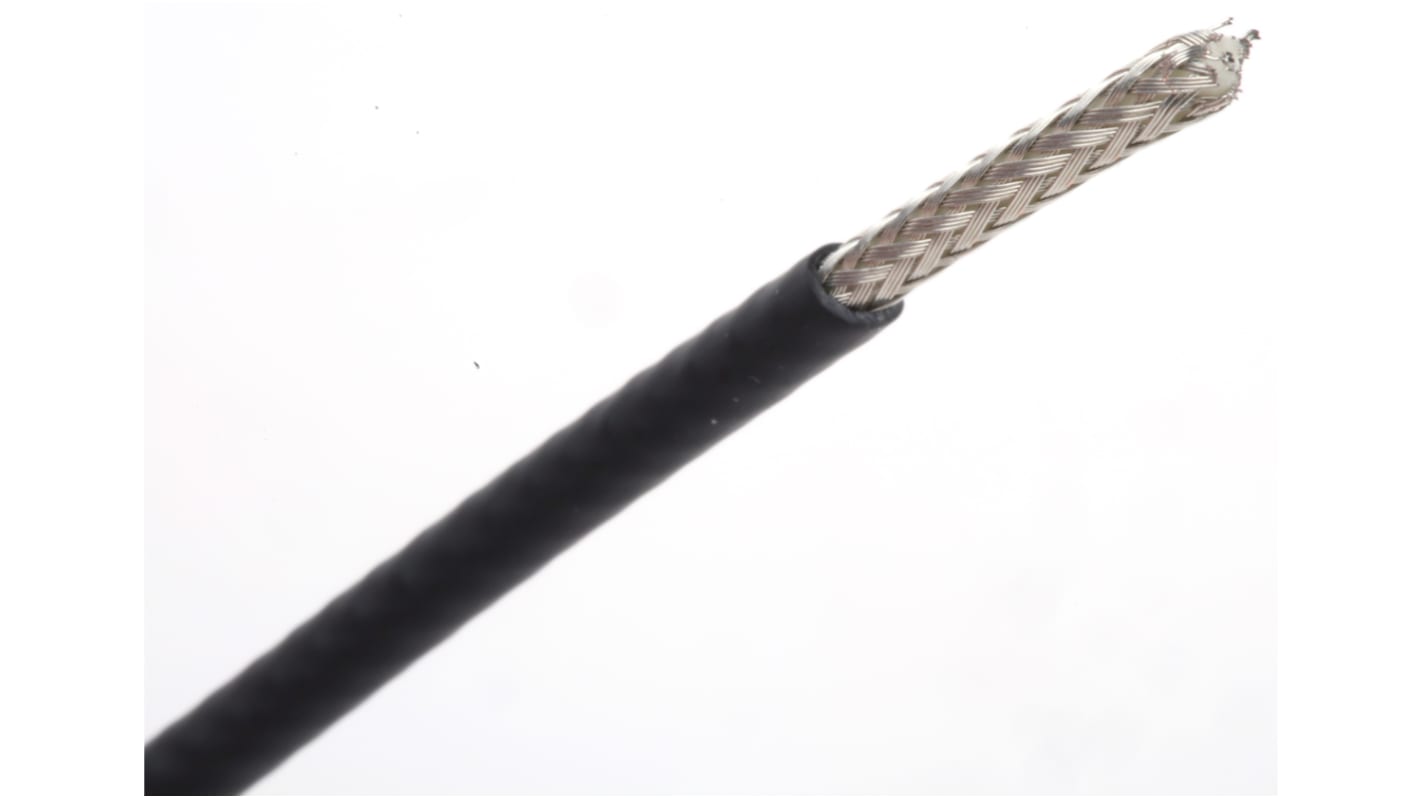

RG316 LSF
RG316 with a flame retardant, low smoke, halogen free Zerohal® outer jacket
7//0.17mm silver plated copper clad steel conductor
Good resistance to fuels, oil and water
Zerohal® is fully qualified to DEFSTAN 61.12 part 31
Dimensions and conductor conform to Mil Spec Mil-C-17
Excellent flexibility
Connector / Cable group B
7//0.17mm silver plated copper clad steel conductor
Good resistance to fuels, oil and water
Zerohal® is fully qualified to DEFSTAN 61.12 part 31
Dimensions and conductor conform to Mil Spec Mil-C-17
Excellent flexibility
Connector / Cable group B
Note
Zerohal® is a trademark of tyco Electronics Raychem
Standards
61-12 Part 31
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Unterminated |
Coaxial Type | RG316 |
Outer Diameter | 2.5mm |
Characteristic Impedance | 50 Ω |
Attenuation | 29 dB/100m @ 100MHz, 9 dB/100m @ 10MHz |
Length | 100m |
Sheath Colour | Black |
Conductor Strand Type | Stranded |
Sheath Material | Low Smoke Zero Halogen (LSZH) |
Number of Strands | 7 |
Operating Temperature Range | -30 → +105 °C |
Maximum Operating Temperature | +105°C |
Size of Strands | 0.17 mm |
Conductor Material | Silver Plated Copper Clad Steel |
Capacitance | 98pF/m |
Core Strands | 7/0.17 |
Minimum Operating Temperature | -30°C |
Shielding | Tin Plated Braided Wire |
Insulation Material | Polyethylene |
Velocity ratio | 71% |
