- RS Stock No.:
- 168-3123
- Mfr. Part No.:
- 9059B BK001
- Brand:
- Alpha Wire
8 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Reel of 304 Metre(s)
$1,754.55
(exc. GST)
$1,930.01
(inc. GST)
Reel(s) | Per Reel | Per Metre* |
1 + | $1,754.55 | $5.772 |
*price indicative |
- RS Stock No.:
- 168-3123
- Mfr. Part No.:
- 9059B BK001
- Brand:
- Alpha Wire
Technical data sheets
Legislation and Compliance
Product Details
RG 59B/U

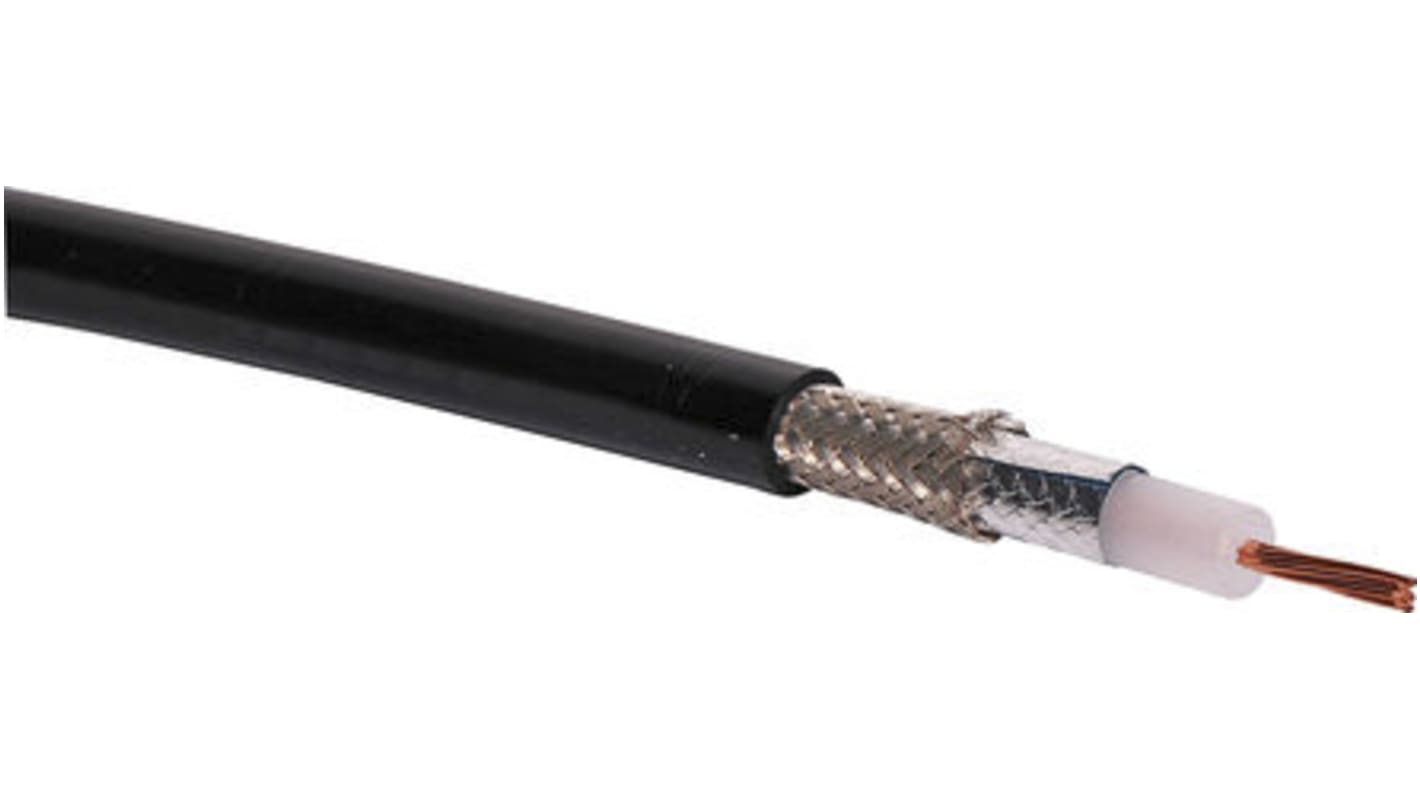

The Alpha Wire RG 59B/U cable has been precisely designed to broadcast video transmission at the highest quality whilst achieving low capacitance, high velocities of propagation and tight tolerances for maxiumum signal intergrity.
The cable has a single strand solid 23 AWG copper-coated steel centre core surrounded by polyethylene insulation and a black PVC anti-contamination sleeve. The component can remain operational at temperatures -20°C or more and is an approved component by MIL-C 17D. It is availiable to purchase at reels of 30 and 305 metres.
The cable has a single strand solid 23 AWG copper-coated steel centre core surrounded by polyethylene insulation and a black PVC anti-contamination sleeve. The component can remain operational at temperatures -20°C or more and is an approved component by MIL-C 17D. It is availiable to purchase at reels of 30 and 305 metres.
Approvals
MIL-C 17D
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Unterminated |
Coaxial Type | RG59B/U |
Outer Diameter | 6.15mm |
Characteristic Impedance | 75 Ω |
Attenuation | 30 dB/100ft @ 3GHz, 9 dB/100ft @ 400MHz |
Length | 304m |
Sheath Colour | Black |
Conductor Strand Type | Solid |
Operating Temperature Range | -20 → +60 °C |
Number of Strands | 1 |
Sheath Material | Polyvinyl Chloride PVC |
Insulation Material | PE |
Maximum Operating Temperature | +60°C |
Size of Strands | 23 AWG |
Conductor Material | Bare Copper |
Capacitance | 67.24pF/m |
Core Strands | 1/23 |
Velocity ratio | 66% |
Series | MEC COAXIAL |
Minimum Operating Temperature | -20°C |
