- RS Stock No.:
- 158-5358
- Mfr. Part No.:
- MH113-MH1RP-01BJ1-0150
- Brand:
- Samtec
2 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Bag of 1
$21.21
(exc. GST)
$23.33
(inc. GST)
Bag(s) | Per Bag |
1 - 9 | $21.21 |
10 - 49 | $20.57 |
50 - 99 | $19.96 |
100 - 499 | $19.36 |
500 + | $18.79 |
- RS Stock No.:
- 158-5358
- Mfr. Part No.:
- MH113-MH1RP-01BJ1-0150
- Brand:
- Samtec
Technical data sheets
Legislation and Compliance
Product Details

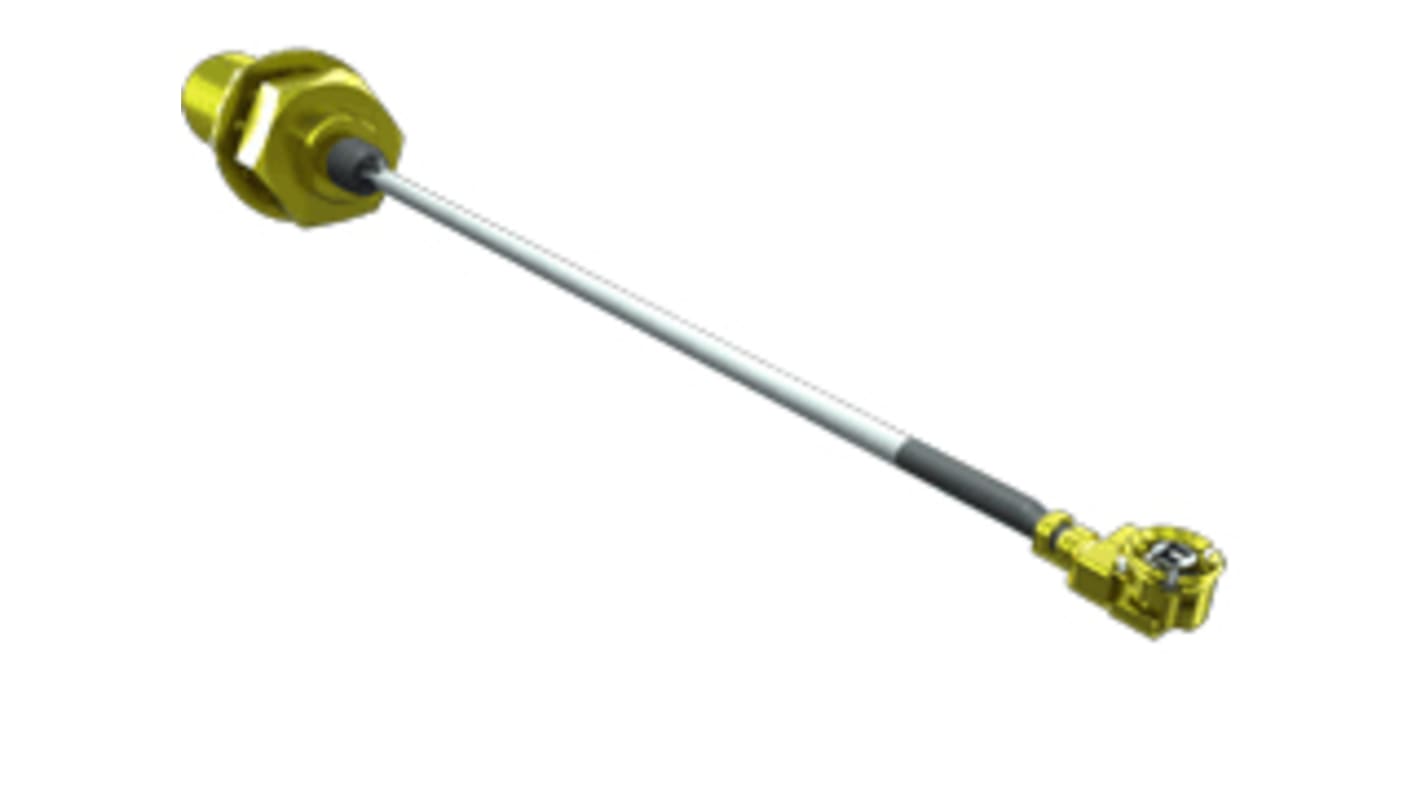

Micro High Frequency RF Cable Assembly, 1.13 mm DIA Coax Cable
32 AWG, 1.13 mm (.045") diameter cable
50 ohm impedance
Available with MHF1 type plug or SMA bulkhead jack terminations
U.FL type
Performance up to 3 GHz
50 ohm impedance
Available with MHF1 type plug or SMA bulkhead jack terminations
U.FL type
Performance up to 3 GHz
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Terminated/Unterminated | Terminated |
Connector 1 | MHF1 |
Connector 2 | SMA |
Coaxial Type | RF |
Connector 1 Gender | Male |
Connector 2 Gender | Male |
Outer Diameter | 1.13mm |
Characteristic Impedance | 50 Ω |
Attenuation | 2 dB |
Length | 150mm |
Sheath Colour | White |
Voltage Rating | 170 V |
Minimum Operating Temperature | -40°C |
Conductor Material | Copper |
Insulation Material | PBT, PTFE |
Shielding | Tinned Copper Braid |
Series | MH113 |
Sheath Material | FEP |
Operating Temperature Range | -40 → +90 °C |
Standards Met | UL |
Maximum Operating Temperature | +90°C |
Capacitance | 95pF/m |
