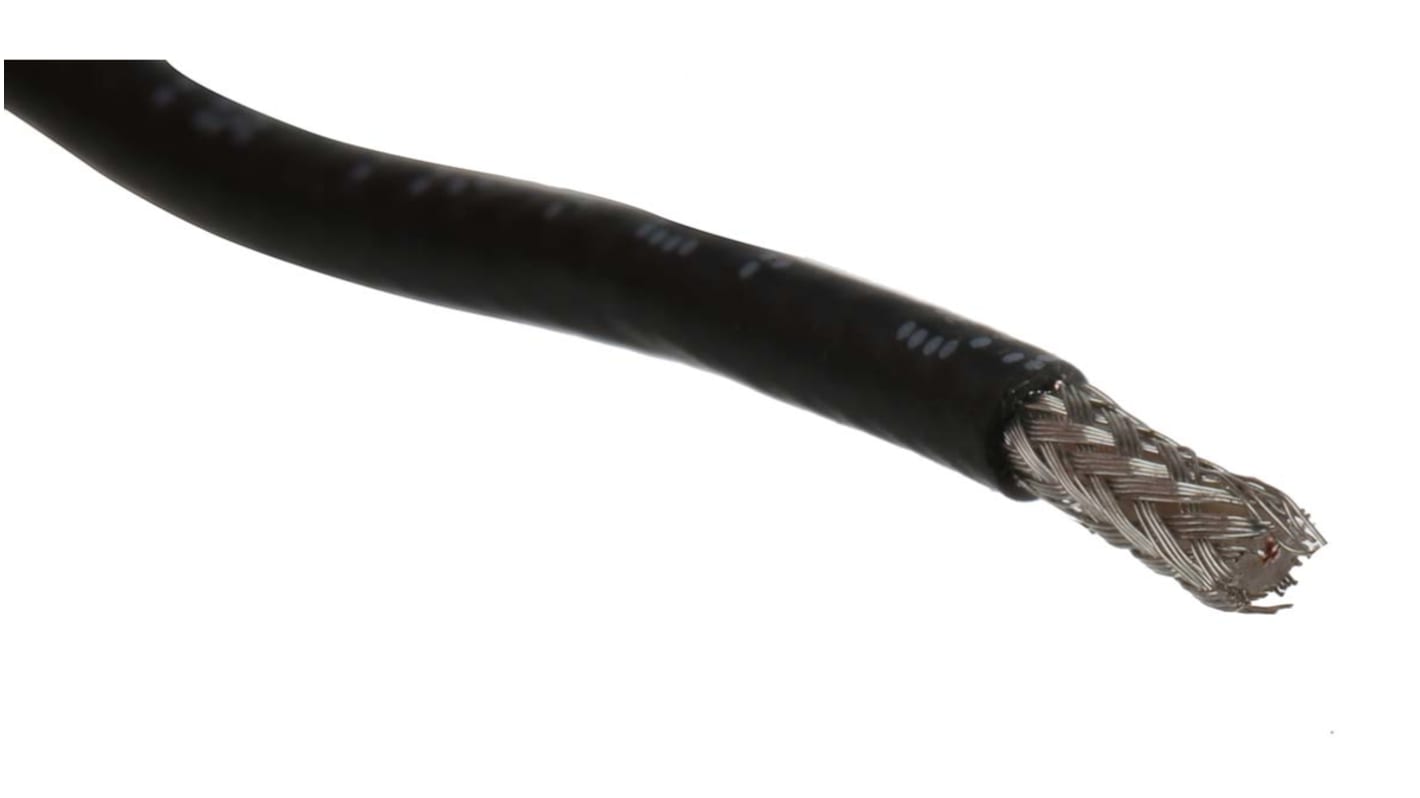

Alpha Wire MEC COAXIAL Series Coaxial Cable, 304m, RG174/U Coaxial, Unterminated

RS Stock No.:: 126-5107
Mfr. Part No.:: 9174 BK001
Brand:: Alpha Wire

Alpha Wire MEC COAXIAL Series Coaxial Cable, 304m, RG174/U Coaxial, Unterminated

63 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) 1 Reel of 304 Metre(s)

$791.10

(exc. GST)

$870.21

(inc. GST)

Reel(s)	Per Reel	Per Metre*
1 +	$791.10	$2.602
*price indicative

RS Stock No.:: 126-5107
Mfr. Part No.:: 9174 BK001
Brand:: Alpha Wire

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

Product Details

Belden Alpha Wire Coaxial Cable, 34AWG - MEC COAXIAL series - 9174

Efficiently transmit signals from one device to another using this durable coaxial cable from Belden Alpha Wire. An impedance of 50 ohms effectively transfers data without loss of integrity and quality, making this an ideal option for use in demanding communication channels. The cable has a PVC sheath that's fire-retardant and resistant to chemicals, so it can be used in contaminated industrial environments.

Features & Benefits

• Carries uninterrupted signals over a long distance
• TC braided shielding to ensure data integrity and prevent EMI in low-frequency to medium-frequency applications
• Wide operating temperature range of -40°C to +80°C for use in harsh conditions

Applications

• Cable TV installation
• Telecommunication industry
• Security and surveillance systems

What's the withstand voltage of this cable?

This cable has a minimum withstand voltage of 4.5kV, making it good for medium-duty to heavy-duty applications.

Specifications

Attribute	Value
Terminated/Unterminated	Unterminated
Coaxial Type	RG174/U
Outer Diameter	2.59mm
Characteristic Impedance	50 Ω
Attenuation	48 dB/100ft @ 1GHz, 6 dB/100ft @ 50MHz
Length	304m
Sheath Colour	Black
Voltage Rating	1.1 kV
Conductor Strand Type	Stranded
Insulation Material	PE
Operating Temperature Range	-40 → +80 °C
Maximum Operating Temperature	+80°C
Size of Strands	34 AWG
Conductor Material	Bare Copper Steel Coated
Capacitance	101.024pF/m
Core Strands	7/34
Series	MEC COAXIAL
Standards Met	CE, REACH
Sheath Material	Polyvinyl Chloride PVC
Shielding	Braid
Number of Strands	7
Velocity ratio	66%
Minimum Operating Temperature	-40°C
