Amphenol RF Straight 75Ω RF Adapter BNC Socket to BNC Socket 1GHz
- RS Stock No.:
- 700-9495
- Mfr. Part No.:
- B7771B3-ND3G-75
- Brand:
- Amphenol RF
273 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$10.27
(exc. GST)
$11.30
(inc. GST)
| Units | Per unit |
| 1 - 24 | $10.27 |
| 25 - 124 | $10.03 |
| 125 + | $8.25 |
- RS Stock No.:
- 700-9495
- Mfr. Part No.:
- B7771B3-ND3G-75
- Brand:
- Amphenol RF
Technical data sheets
Legislation and Compliance
Product Details

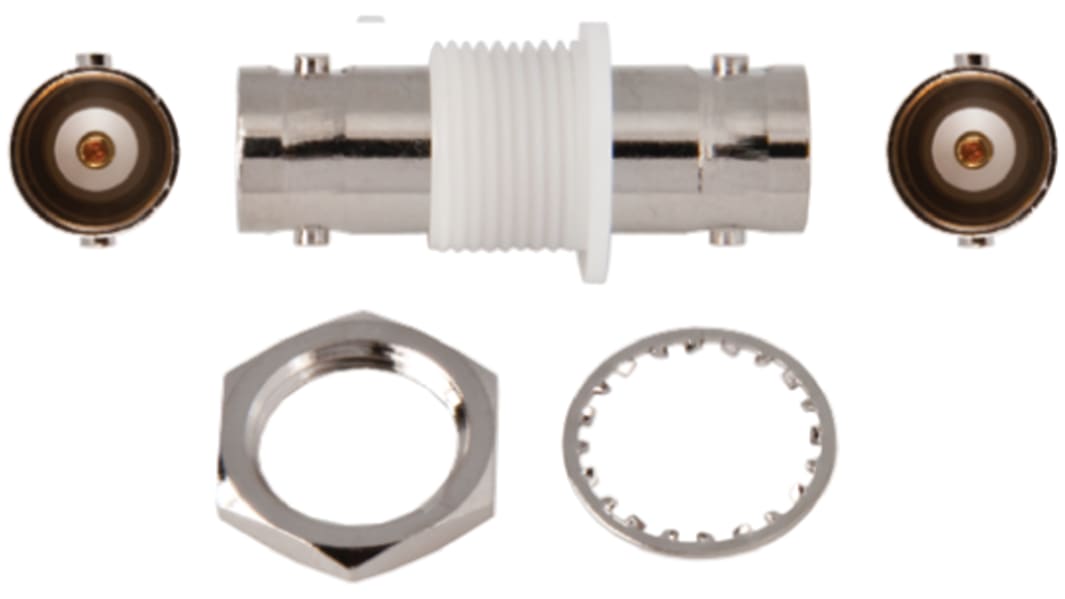

Amphenol RF Coaxial BNC Jack to Jack Bulkhead/Panel Adapters
RF coaxial 50 ohm and 75 ohm BNC jack to jack isolated bulkhead/panel adapters with a nickel plated brass body, delrin insulator, gold plated centre contact and jam nut fixing.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Amphenol BNC Connectors
Specifications
Attribute | Value |
|---|---|
| Adapter Type A | BNC |
| Adapter Type B | BNC |
| Gender A | Female |
| Gender B | Female |
| Impedance | 75Ω |
| Body Orientation | Straight |
| Operating Frequency | 1GHz |
| Contact Plating | Gold over Nickel |
| Length | 32.5mm |
| Body Plating | Nickel over Copper |
| Contact Material | Phosphor Bronze |
