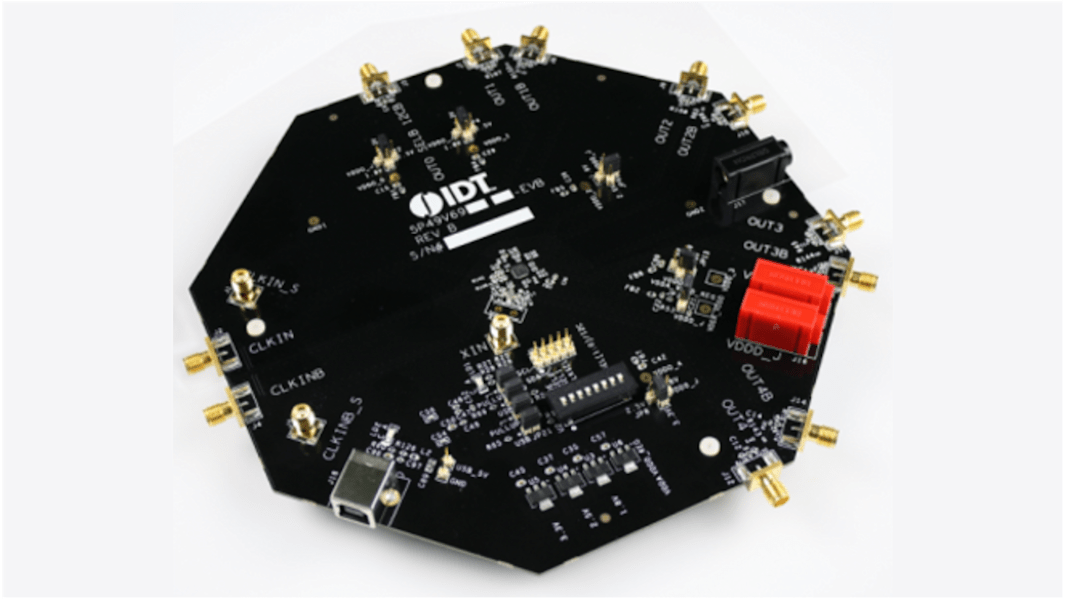

Renesas Electronics 5P49V6965-EVK, VersaClock 6E - 5P49V60 5P49V6965 and 5P49V6975 Evaluation Board Clock Generator
- RS Stock No.:
- 217-7868
- Mfr. Part No.:
- 5P49V6965-EVK
- Brand:
- Renesas Electronics
- RS Stock No.:
- 217-7868
- Mfr. Part No.:
- 5P49V6965-EVK
- Brand:
- Renesas Electronics
Technical data sheets
Legislation and Compliance
Product Details
The Renesas Electronics evaluation board for the IDT 5P49V6965 VersaClock 6E programmable clock generator. With RMS phase jitter of less than 0.5ps over the full 12kHz to 20MHz integration range, the device meets the stringent jitter requirements of PCI Express® Gen 1/2/3, USB 3.0, and 1G/10G Ethernet.
4 differential outputs capable of generating any output frequency using IDT Timing Commander™ software
SMA connectors for outputs
When the board is connected to a PC running IDT Timing Commander Software through USB, the device can be configured and programmed to generate frequencies with best-in-class performance
The 25MHz crystal installed on the board can source a reference frequency to the device when CLKIN/CLKINB is not used.
SMA connectors for outputs
When the board is connected to a PC running IDT Timing Commander Software through USB, the device can be configured and programmed to generate frequencies with best-in-class performance
The 25MHz crystal installed on the board can source a reference frequency to the device when CLKIN/CLKINB is not used.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Clock/Timer Function | Clock Generator |
Kit Classification | Evaluation Board |
For Use With | PC |
Featured Device | 5P49V60, 5P49V6965 and 5P49V6975 |
Kit Name | VersaClock 6E - 5P49V60 5P49V6965 and 5P49V6975 Evaluation Board |
