- RS Stock No.:
- 512-5069
- Mfr. Part No.:
- P01120761
- Brand:
- Chauvin Arnoux
5 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$1,043.04
(exc. GST)
$1,147.34
(inc. GST)
Units | Per unit |
1 + | $1,043.04 |
- RS Stock No.:
- 512-5069
- Mfr. Part No.:
- P01120761
- Brand:
- Chauvin Arnoux
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details

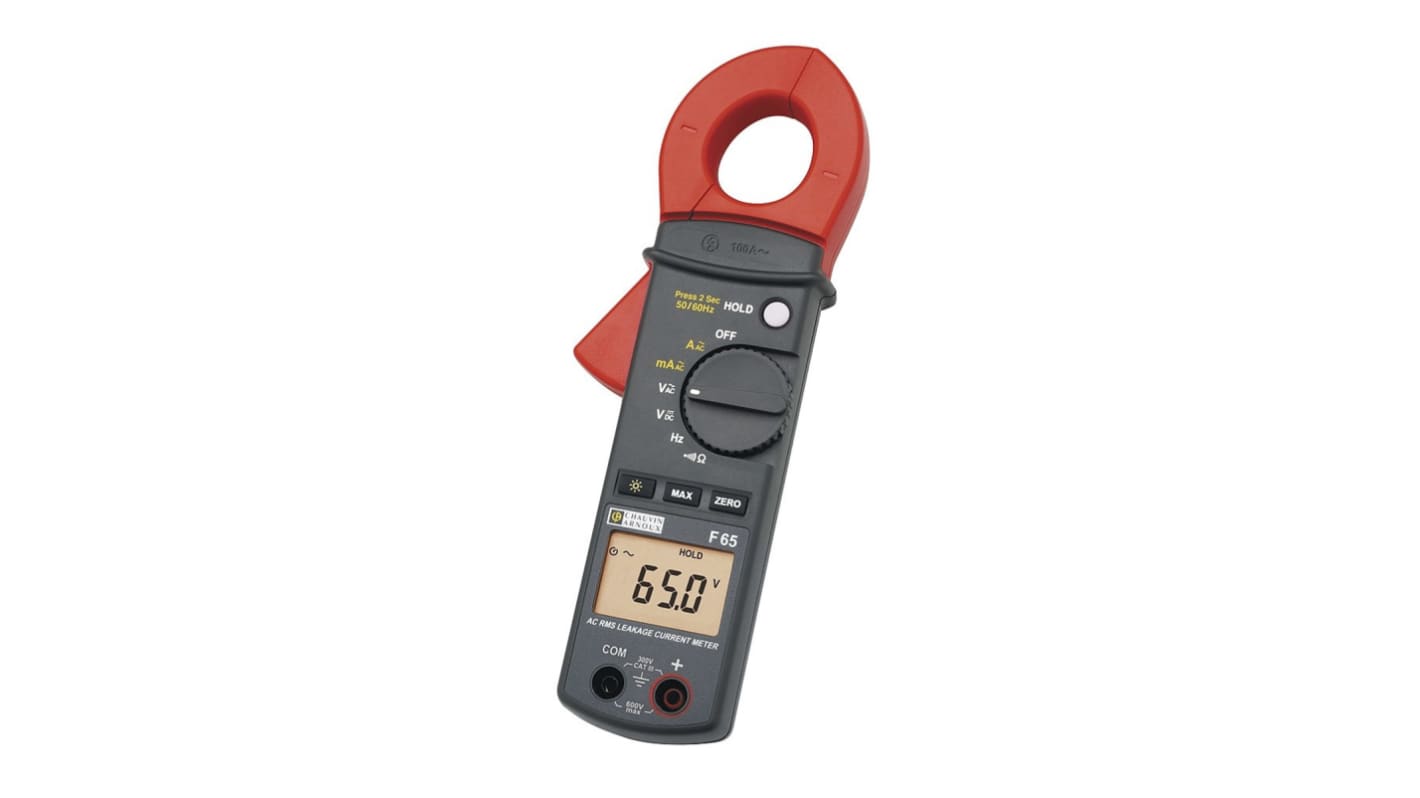

F65 Clamp-on Meter
The F65 clamp-on meter is the ideal tool for detecting insulation faults and inadvertent tripping of differential circuit breakers caused by current leakages.
It also provides all the functions of a clamp-on multimeter.
Supplied with one set of 4 mm R / N angled leads with 4 mm touch probes, a set of two batteries and a carry case.
It also provides all the functions of a clamp-on multimeter.
Supplied with one set of 4 mm R / N angled leads with 4 mm touch probes, a set of two batteries and a carry case.
Specifications
Attribute | Value |
---|---|
Absolute Maximum AC Current Measurement | 100A ac |
Absolute Maximum AC Voltage Measurement | 600V ac |
Absolute Maximum DC Voltage Measurement | 600V dc |
Absolute Maximum Resistance Measurement | 1kΩ |
Model Number | F65 |
AC Current Measurement Resolution | 10µA |
Clamp Meter Type | Leakage Clamp Meter |
Best AC Current Accuracy | ±(2.5% rdg + 5dgts) |
Best AC Voltage Accuracy | ±(2.5% rdg + 5dgts) |
Jaw Capacity Busbars | 28mm |
Best DC Voltage Accuracy | ±(2.5% rdg + 5dgts) |
Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Frequency, Resistance |
True RMS | Yes |
Minimum Operating Temperature | 0°C |
Height | 30mm |
AC Voltage Measurement Resolution | 100mV |
Maximum Conductor Size | 28mm |
Battery Life | 45 h |
Weight | 280g |
Safety Category Level | CAT III |
Safety Category | CAT III 300V |
Best Resistance Measurement Accuracy | ±1% + 3 Digits |
Safety Category Voltage | 300V |
Battery Type | AAA |
Maximum Operating Temperature | +40°C |
Display Type | Backlit LCD |
Power Source | Battery |
Non-Contact Voltage Detector | No |
Width | 64mm |
Length | 218mm |
Resistance Measurement Resolution | 100mΩ |
Dimensions | 218 x 64 x 30mm |
DC Voltage Measurement Resolution | 100mV |
