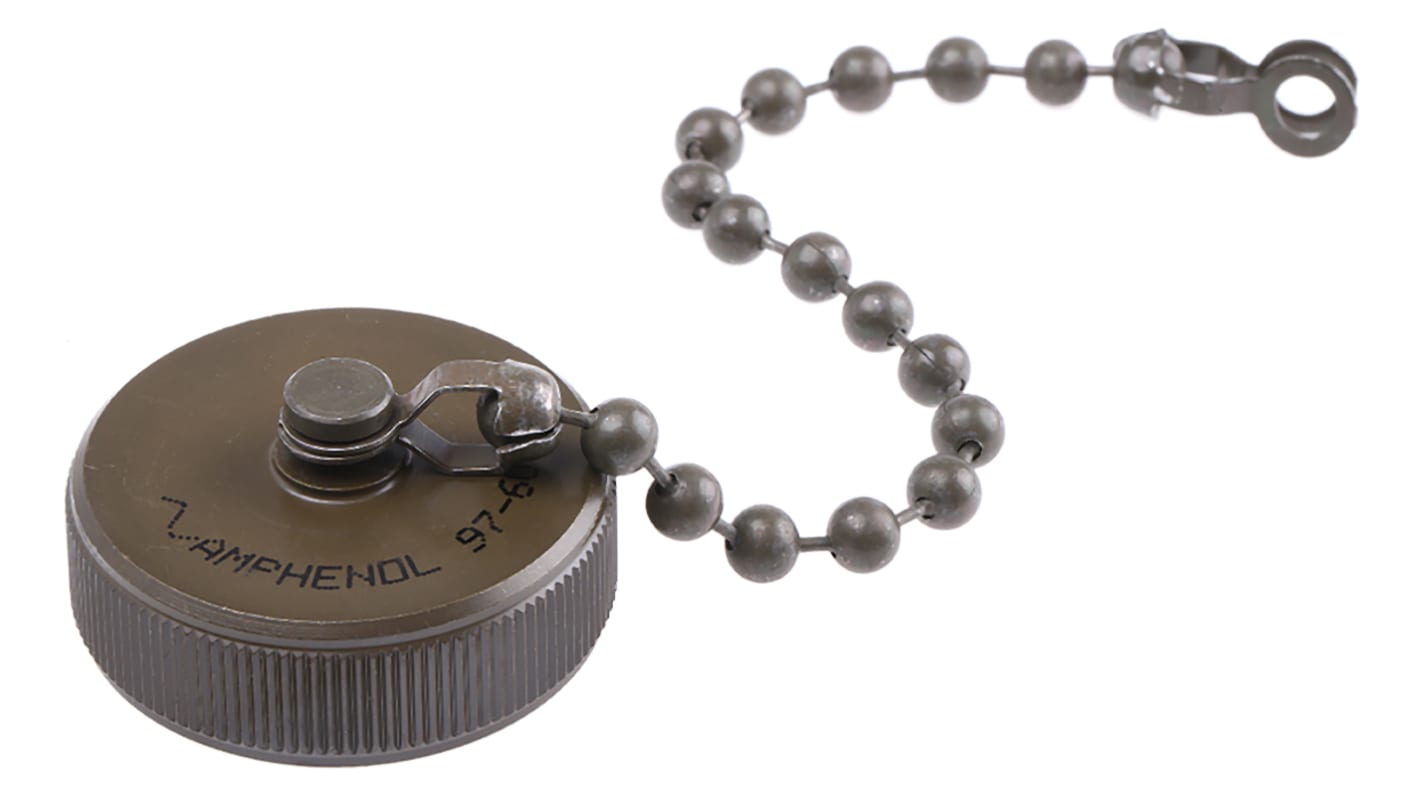

Amphenol Socapex 97 Series MIL-DTL-5015 Plug Dust Cap, Shell Size 18 IP66 Rated, with Olive Drab Cadmium Finish, 9760

  • RS Stock No. 298-2730
  • Mfr. Part No. 97-60-18
  • Manufacturer Amphenol
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): CN
Product Details

9760 Dust Caps and Chain Assemblies (Olive Drab)

A comprehensive offering of connector dust caps suitable for use with the Amphenol MS series of circular connectors.Screw-fit caps have fitted beaded chains for attaching to the cable assembly.

97 (Olive Drab)

Commercial grade threaded circular multi-pole connectors designed to conform to the general requirements of MIL-C-5015 and satisfy the commercial and industrial demand for quality, reliability and low cost. The connectors are screw locking and fully interchangeable with other screw locking MIL-C-5015 types. All pins and sockets solder bucket type.

Specifications
Attribute Value
Gender Plug
Shell Size 18
Military Standard MIL-DTL-5015
Series 97
IP Rating IP66
Panel Mount Fitting No
Material Aluminium
Cord Included Yes
Finish Olive Drab Cadmium
Colour Black
Series Number 9760
15 : Next working day (AU stock)
141 : 5 working days (Global stock)
Price (ex. GST) Each
$ 11.46
(exc. GST)
$ 12.61
(inc. GST)
units
Per unit
1 - 9
$11.46
10 - 24
$10.69
25 - 49
$8.22
50 - 99
$7.20
100 +
$6.60
