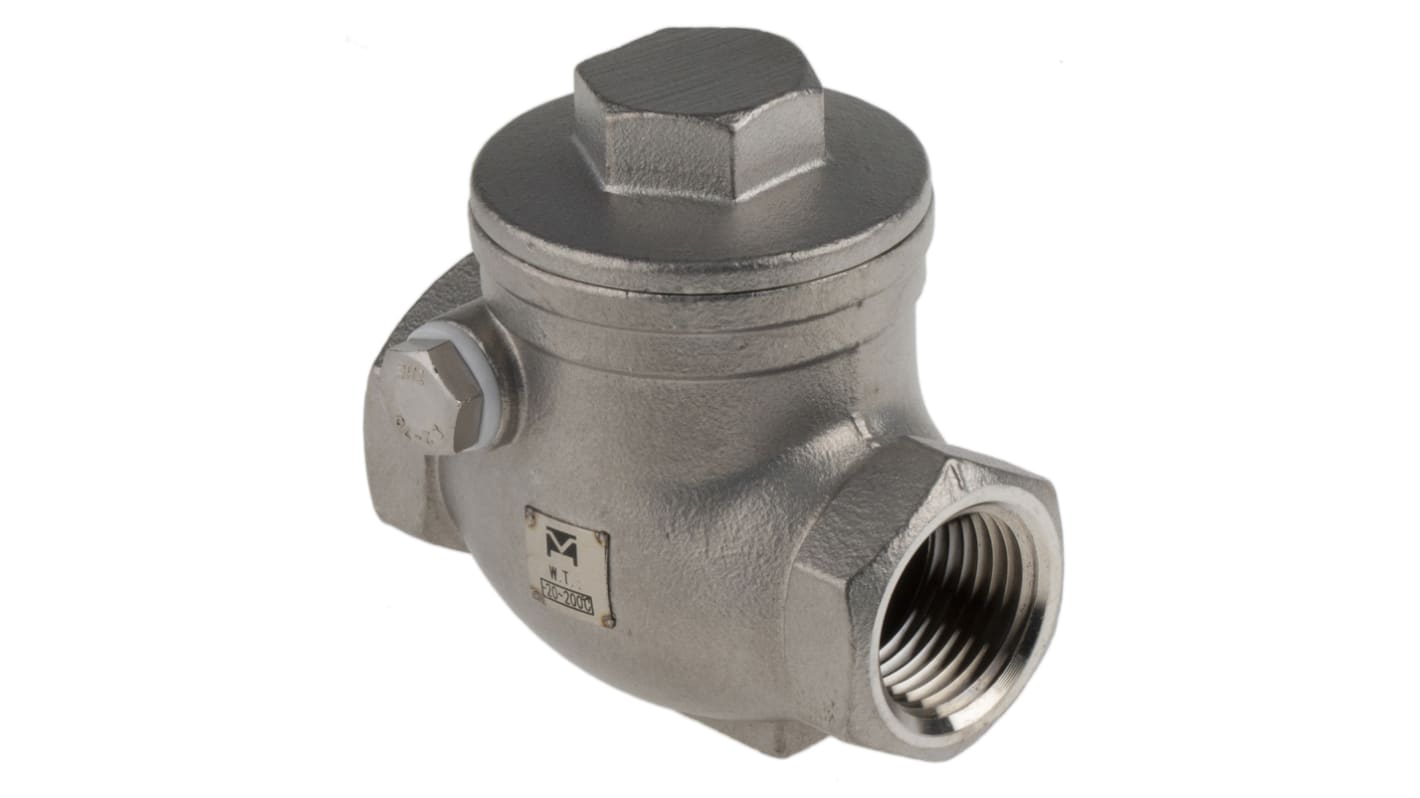

RS PRO Stainless Steel Single Non Return Valve 1/2 in BSP

  • RS Stock No. 499-2622
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

CF8M Stainless Steel Check Valves

RS Pro Brand Screwed End Swing Check Valves that allow liquids to flow in only one direction.

Features:

1/2 - 3" (DN15 - DN80)
W.P: 200 WOG
W.T: -20°C - 200°C (-4°F - 392°F)
Investment casting
Socket weld (option)
Thread type: ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO7/1 & EN10226

Material:

Body, Cap & Disc - ASTM A351-CF8M
Seal & Gasket - PTFE
Plug - AISI 316
Bolt - AISI 304

//media.rs-online.com/t_line/L4992622-01.jpg

Standards

DIN 1.4408

Non Return/Check Valves - Swing Type

Non-return or check valves which allow flow in one direction only.

Specifications
Attribute Value
Type Single
Connection 1/2 in BSP
Body Material Stainless Steel
Maximum Working Pressure 14 bar
Thread Size 1/2in
Thread Standard BSP
3 : Next working day (AU stock)
56 : 5 working days (Global stock)
Price (ex. GST) Each
$ 67.24
(exc. GST)
$ 73.96
(inc. GST)
units
Per unit
1 - 5
$67.24
6 +
$65.21
