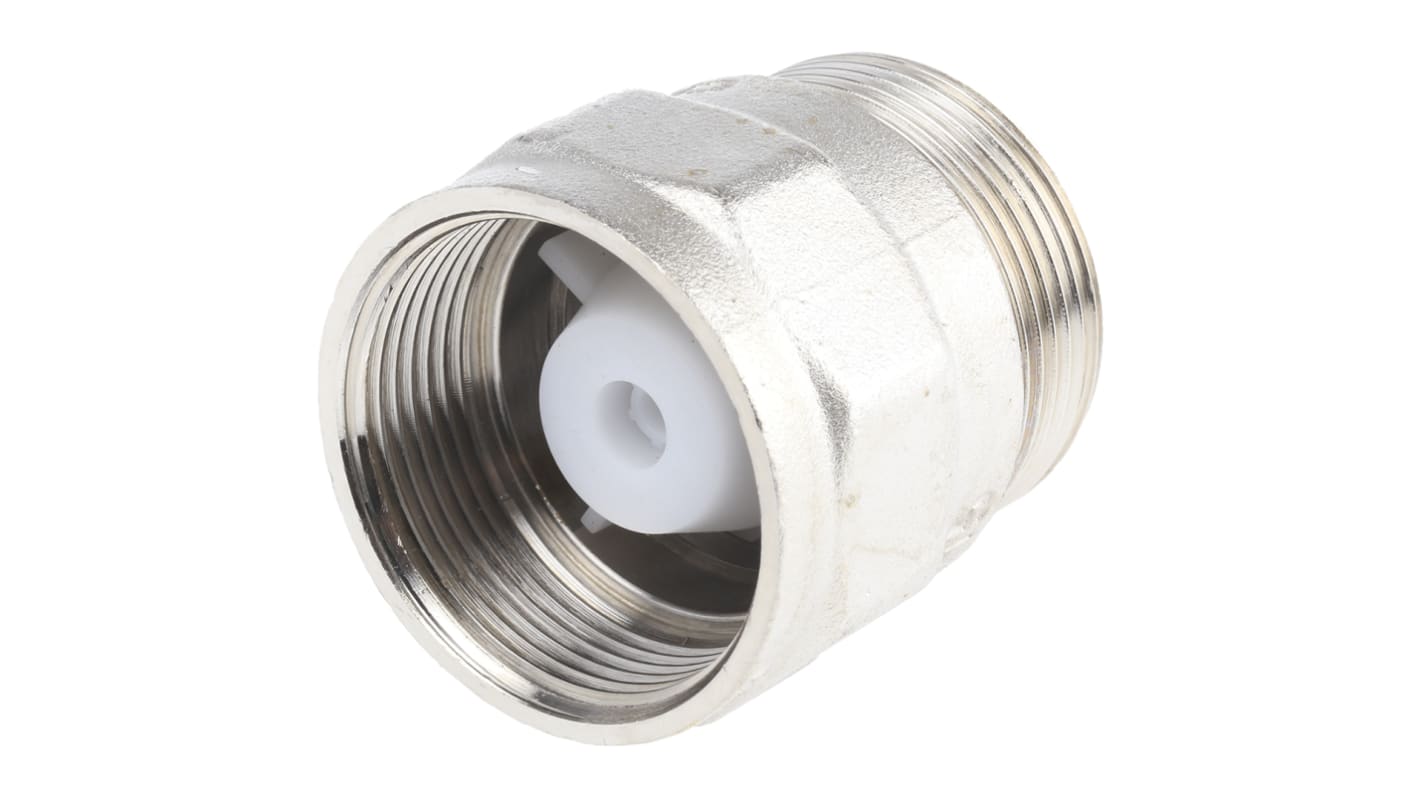

RS PRO Brass Single Non Return Valve 1-1/2 in BSP

  • RS Stock No. 340-3339
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): IT
Product Details

Female/Male Ports

For heating, sanitary and compressed air systems, pumps and autoclaves
Body in hot forged DZR brass
Threading to BS2779
Hostaform inner valve
Spring in 18//8 AISI 302-304 stainless steel
Hydrostatic test pressures 30 bar/435psi (shell), 22 bar/315psi (seat)
Compact design, allows flow in one direction only, indicated by arrow on valve body
Installation in vertical, horizontal or oblique pipelines
Snap-in, spring loaded non- return valve, WRC approved
Low pressure drop, prevents water hammer
Full flow area equal to nominal size

Standards

BS 2779

Specifications
Attribute Value
Type Single
Connection 1-1/2 in BSP
Body Material Brass
Maximum Working Pressure 16 bar
Thread Size 1-1/2in
Thread Standard BSP
10 In stock for delivery within 1 working day(s)
Price (ex. GST) Each
$ 57.96
(exc. GST)
$ 63.76
(inc. GST)
units
Per unit
1 - 5
$57.96
6 - 24
$56.62
25 - 49
$55.20
50 +
$54.20
