RS PRO Brass Single Non Return Valve 1/2 in BSPP

  • RS Stock No. 486-209
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

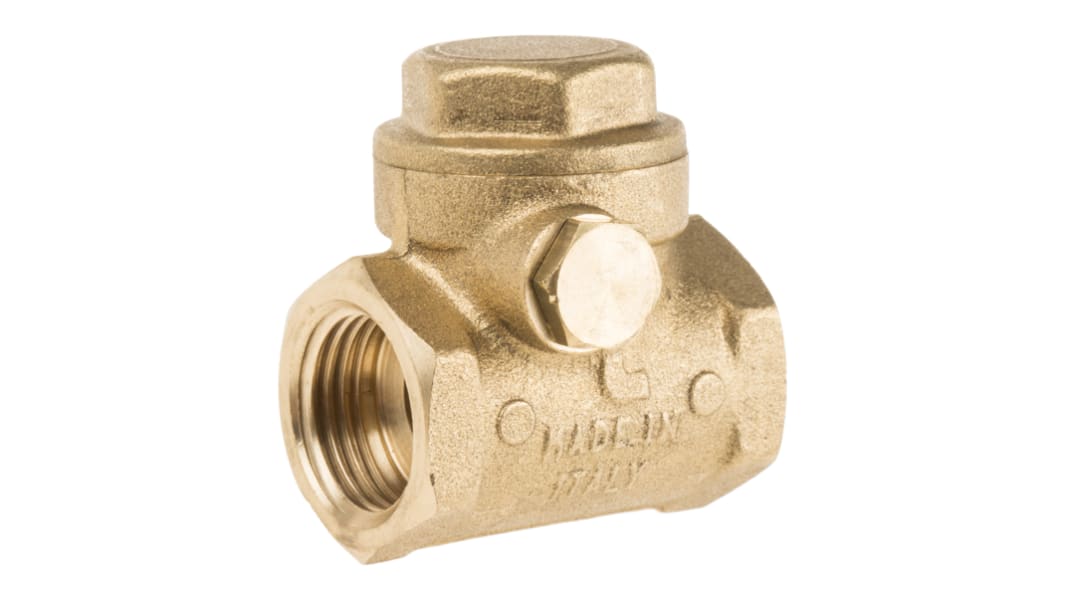

S.126 Brass Swing Check Valve

Application : Industry, pneumatics, hydraulic, plumbing installations
Operating Temperature : +0゚C / +90゚C
Operating pressure : PN12 1/2' to 1’’, PN10 1.1/4’’ to 2’’, PN8 2.1/2’’ to 4’’
Threads : ISO 228 parallel female threads
Metal seal
Compact inspection cap
100% Made in Italy
Low pressure drop
Water hammer resistant

Note

Approvals apply to specific configurations only

Approvals

GOST-R (Russia)
Expert Conclusion (Russia)
EAC Conforming (Russia)
RoHS Compliant

Standards

BS5154/B - PN 16

Non Return/Check Valves - Swing Type

Non-return or check valves which allow flow in one direction only.

Warning

  • Freezing of the fluid in the installation may severely damage the valve
Specifications
Attribute Value
Type Single
Connection 1/2 in BSPP
Body Material Brass
Maximum Working Pressure 16 bar
Thread Size 1/2in
Thread Standard BSP
7 : Next working day (AU stock)
60 : 5 working days (Global stock)
Price (ex. GST) Each
$ 15.93
(exc. GST)
$ 17.52
(inc. GST)
units
Per unit
1 - 5
$15.93
6 - 24
$15.63
25 - 49
$15.42
50 +
$15.25
