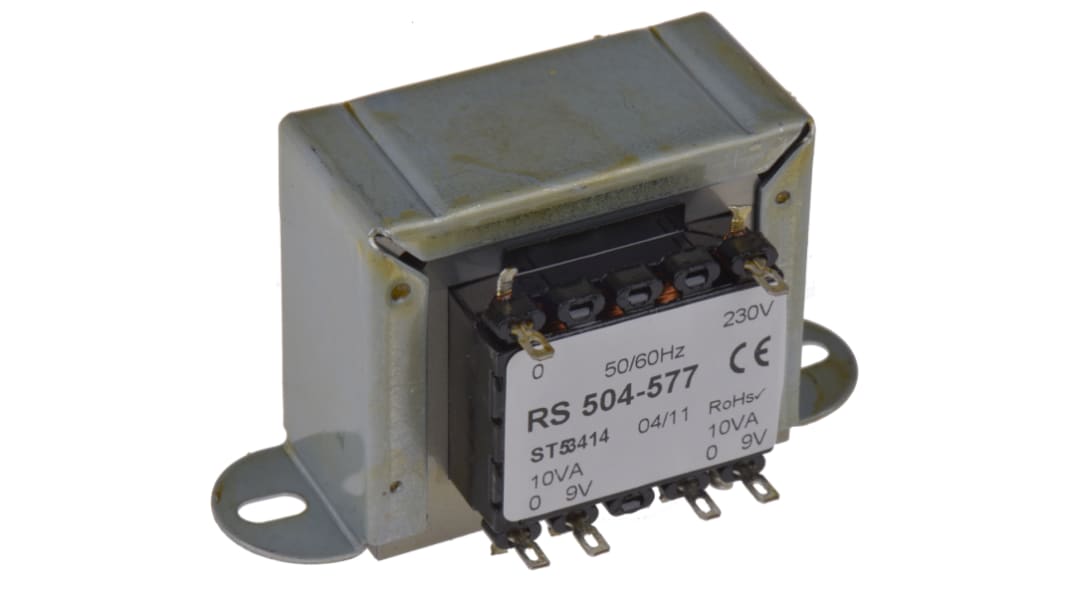

RS PRO 20VA 2 Output Chassis Mounting Transformer, 9V ac

  • RS Stock No. 504-577
  • Manufacturer RS PRO
RS PRO
Technical data sheets
RS Pro Datasheet
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

Chassis Mount, Clamp Construction, 230Vac, 6VA to 50VA

Chassis mounting low voltage mains transformers with a single 230Va.c. 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds
(example 503-912 )
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742

Standards

BS3535; EN 60 742

Specifications
Attribute Value
Primary Voltage Rating 230V ac
Secondary Voltage Rating 9V ac
Power Rating 20VA
Number of Outputs 2
Mounting Type Clamp Mount
Length 59mm
Width 57mm
Depth 50mm
Dimensions 59 x 57 x 50mm
Fixing Hole Diameter 4.7 x 8.7mm
Weight 550g
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
5 : Next working day (AU stock)
34 : 5 working days (Global stock)
Price (ex. GST) Each
$ 25.22
(exc. GST)
$ 27.74
(inc. GST)
units
Per unit
1 - 9
$25.22
10 - 24
$24.60
25 - 49
$23.33
50 - 99
$22.63
100 +
$22.03
