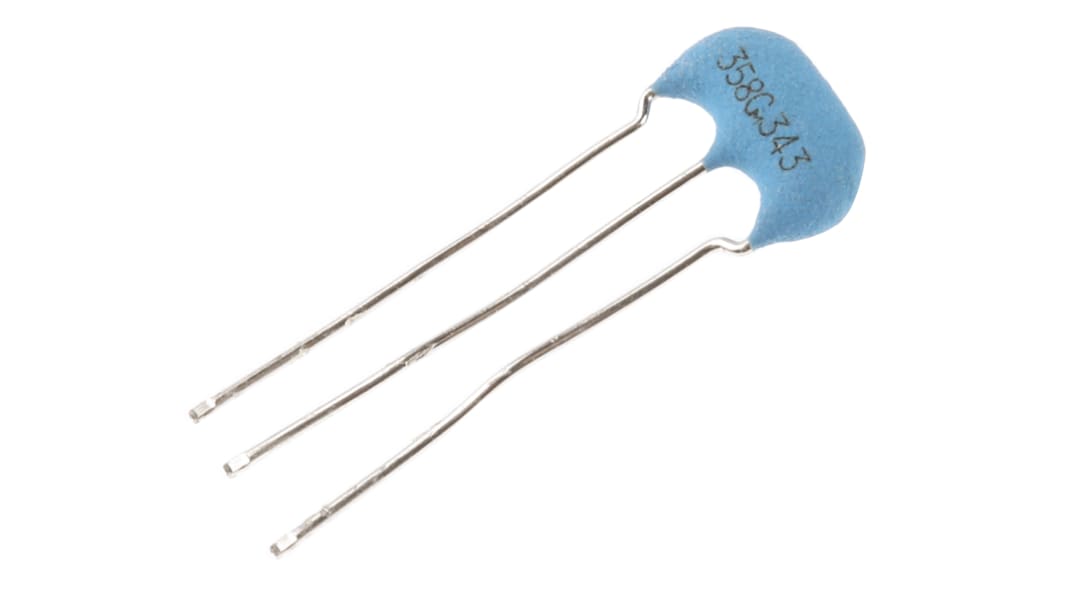

CSTLS3M58G53-B0, Ceramic Resonator, 3.58MHz Shear 15pF, 3-Pin

  • RS Stock No. 721-4899
  • Mfr. Part No. CSTLS3M58G53-B0
  • Manufacturer Murata
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

CST Series

Built-in load capacitors

Resonators

Specifications
Attribute Value
Resonance Frequency 3.58MHz
Frequency Tolerance ±0.5%
Mode of Oscillation Shear
Load Capacitance 15pF
Resonance Resistance 50Ω
Frequency Ageing ±0.2%/Year
Frequency Stability ±0.2
Mounting Type Through Hole
Pin Count 3
Length 8mm
Maximum Operating Temperature 80°C
Width 3mm
Minimum Operating Temperature -20°C
280 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 10)
Was $0.307
$ 0.281
(exc. GST)
$ 0.309
(inc. GST)
units
Per unit
Per Pack*
10 - 240
$0.281
$2.81
250 - 990
$0.265
$2.65
1000 - 2490
$0.247
$2.47
2500 - 4990
$0.233
$2.33
5000 +
$0.227
$2.27
*price indicative
