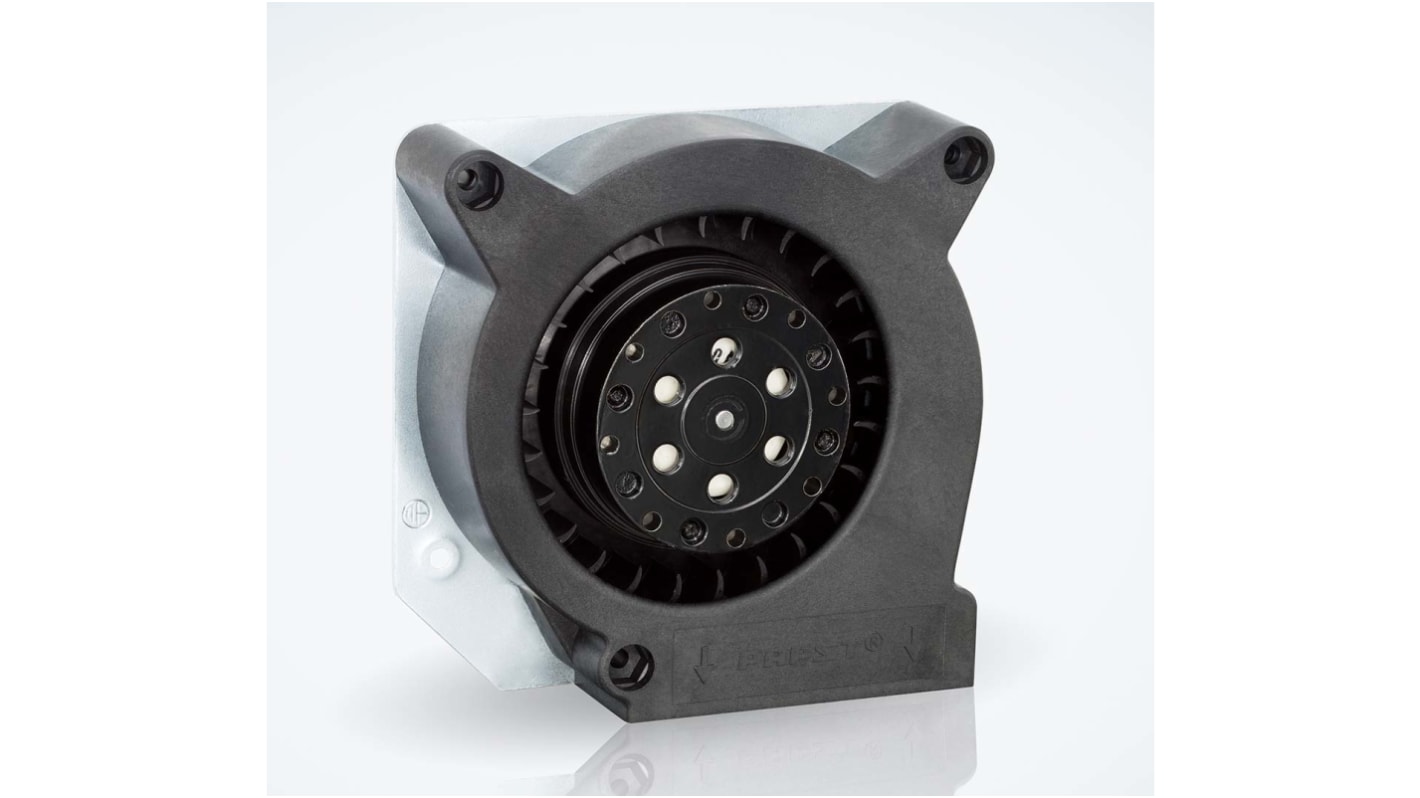

ebm-papst RL 90 N Series Centrifugal Fan, 230 V ac, 40m³/h, AC Operation, 120.6 x 120.6 x 37mm

RS Stock No.:: 482-077
Mfr. Part No.:: RL90-18/50
Brand:: ebm-papst

ebm-papst RL 90 N Series Centrifugal Fan, 230 V ac, 40m³/h, AC Operation, 120.6 x 120.6 x 37mm

194 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$148.01

(exc. GST)

$162.81

(inc. GST)

Units	Per unit
1 - 9	$148.01
10 - 24	$146.55
25 - 49	$143.19
50 +	$138.34

RS Stock No.:: 482-077
Mfr. Part No.:: RL90-18/50
Brand:: ebm-papst

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

ebm-papst Centrifugal Fan

The ebm-papst centrifugal fan has an airflow of 40m³/h (for 50Hz) at a fan speed of 2450rpm and has a supply voltage rating of 230VAC. It has a scroll housing made of fibreglass-reinforced plastic and a fibreglass-reinforced plastic impeller. This is suitable for high air performance with moderate pressure build-up. It is 120.6mm long, 120.6mm width and 37mm deep. The flow of air through the fan blades is parallel to the rotation axis.

Features and Benefits

Airflow is at right angles to the intake
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature low power operation

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

CE certified
CSA certified
VDE approved
EAC certified

Specifications

Attribute	Value
Supply Voltage	230 V ac
Blower Type	Centrifugal
AC or DC Operation	AC
Air Flow	40m³/h
Series	RL 90 N
Height	120.6mm
Width	120.6mm
Depth	37mm
Dimensions	120.6 x 120.6 x 37mm
Fan Speed	2450rpm
Noise Level	56dB
Bearing Type	Sleeve
Mounting Hole Spacing	104.8 x 100.8mm
Direction of Curve	Radial
IP Rating	IP20
Termination Type	Lead Wire
Mounting Hole Diameter	4.2mm
Vertical Hole Spacing	104.8mm
Horizontal Hole Spacing	100.8mm
